Product Description

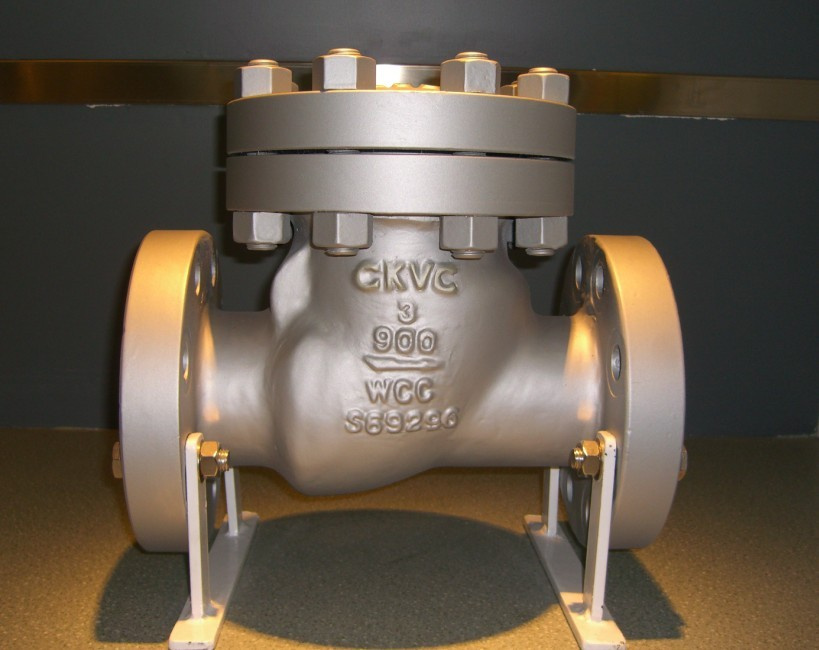

API Cast Steel Swing Check Valves (H44)
Pressure sealing cover, swing type disc
Threaded or welded seat ring
ASTM A216 WCB, A217 Wc6, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Standards compliance:
Design and Manufacture: ANSI B16.34, API 6D, BS1868
Face to face(end to end): ANSIB16.10, API 6D
Flanged connection: 2"~24" to ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API 598, API 6D
A. Back up ring: Absorbs thrust applied by internal pressure.
B. Thrust ring: Pretects the soft metallic gasket from detemation.
C. Gasket Unique angutar design provides superior sealing.
Design and Manufacture
ANSI B16.34, API600, API6D, API603, BS1414
Face to face(end to end)
ANSI B16.10, API6D
Flanged connection
2"~24" to ANSI B16.522", 26"~36" to MSS-SP-44 or to API605 on Request
FACE TO FACE
ASME B16.10
Test and inspection
API598, API6D
Butt welded end
ANSI B16.5
Kaiweixi (KVC) specializes in the development, research, manufacture, and sales of valves. Established in 2003 with a registered capital USD7, 000, 000, Kaiweixicovers an area of 104, 000 square meters and has 360 employees, with 51 advanced technicians and 11 senior engineers. Our products covering plug valves, ball valves, check valves, globe valves, gate valves and hydraulic control valves conforming to ANSI/API, DIN, BS, JIS, EN and GB standards have been welcomed by clients in China and abroad.
