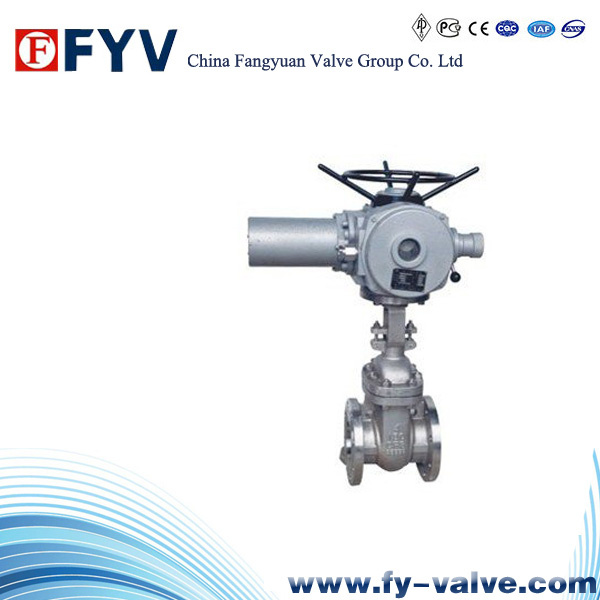

Electric gate valve is stalled in the water and steam pipeline, used as a hoist device.
Structural description:
1. Using the flange bolt connection, and both ends of branch pipe are flange connection structure.
2. The seat sealing surface uses iron-based Cr-Ni stainless steel welding. It is wear-resistant and has a good anti-abrasion performance.
3. After corrosion resistance nitrogen treatment, Stem surface has good resistance to corrosion and scratch resistance.
4. Closing and opening of the valve controlled by the electric device installed in the bonnet. Electric devices are equipped with special valve motor, reduction gearbox, torque control actuator, stroke control actuator, on-site operating mechanism, manual, electric switching mechanism. Switch is adjusted by the stroke control actuator, adjust the torque limit actuator, and protect the valve in the case of the breakdown of stroke control actuator. Valve close, primarily through electrical devices and the wedge double disc, universal top and clip ring etc., which are adjustable. And through the body-oriented movements for lifting.
5. Electrical device can also carry out long-distance operation, besides local operations.
The installation instructions: 1. Stem can be upward or level when installing. The medium enter in any side. And after rinsing the pipes, valve can be filed. 2. Electrical device should be at an ambient temperature of -20 º C - +40 º C, and relative humidity less than 80% non-corrosive, non-explosive gas environment.
Electric gate valve is used in the pipelines of nominal pressure PN1.6 - 42MPa, work temperature less than -29 º C ~ 600 º C of the petroleum, chemical, water, fire power plant pipe systems, and workds for cutting off or connecting the piping media. Applicable medium: Water, oil, steam, acid, alkali, ammonia, urea, sour gas, etc.
| Structural formation | Pressure sealed bonnet outside stem yoke structure |
| Driving manner | Hand-operated,Gear-operated and Electric-driving |
| Design standard | API 600 API 6D |
| Face to face | ASME B16.10 |
| Flanged ends | ASME B16.15 |
| Test &inspection | API598 |
No.
Accessory Name | Material |
| 1- Body | ASTM A216-WCB
ASTMA217-WC1/WC6/WC9/C5
ASTMA351-CF8/CF8M/CF8C/CF3/CF3M |
| 2-Gate disc | ASTM A216-WCB
ASTMA217-WC1/WC6/WC9/C5
ASTMA351-CF8/CF8M/CF8C/CF3/CF3M |
| 3-Bonnet | ASTM A216-WCB
ASTMA217-WC1/WC6/WC9/C5
ASTMA351-CF8/CF8M/CF8C/CF3/CF3M |
| 4-Seat | ASTM A105
ASTM A182-F11/F22/F5/F9 |
| 5-Seal ring | Graphite |
| 6-Tetracyclic ring | ASTM A182Gr.F6a/ASTM A182F22 |
| 7-Yoke | ASTM A216-WCB
ASTMA351-CF8/CF8M/CF8C/CF3/CF3M |
| 8-Stem | ASTM A182Gr.F6a/ ASTM A182F22
ASTMA182-F304/F316/F321/F304L/F316L |
| 9-Packing | Graphite |
| 10-Driving device | Electric driving |
| 11-Stud | ASTM A193-B7/A320-B8/A193-B8M |
| 12-Six angle nuts | ASTM A194-2H/A194-8/A194-8M |
