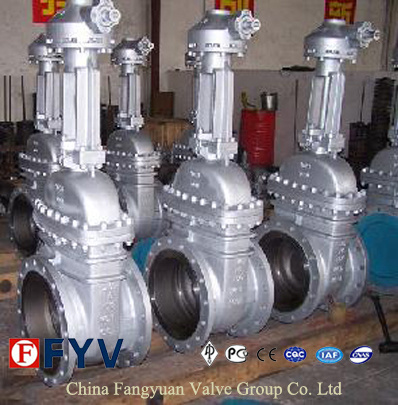

API Electric Cast Steel Flexible Wedge Gate Valve
Price: |
US $ 99-199/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,D/P,Paypal |
CLASS 150~1500LB CAST STEEL GATE VALVE
OS&Y, Rising stem, Flexible Wedge Gate Valve, Solid Wedge Gate Valve
Bolted Bonnet, Threaded or welded seat ring, Renewable seat ring
Material: ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M, A351 CF3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: ANSIB16.34, API600 API6D, API603, BS1414
Face to face(end to end): ANSIB16.10, API6D
Flanged connection: 2"~24"to ANSIB16.5, 22", 26"~36"to MSS-SP-44 to API605 on Request (Flanged gate valves, Conduit gate valves)
Test and inspection: API598, API6D
Butt welded end: ANSIB162.5
A. Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
B. Grub screw: Secures yoke nut in the bonnet
C. Grease nipple: Supplies lubricant to the mating parts
Materials |
NO. | Part name | Material |
19 | Grease nipple | Brass |
18 | Grub screw | Carbon steel |
17 | Hand wheel nut | Carbon steel |
16 | Hand wheel | Malleable lron/cast steel/ ducile lron/fabricated steel |
15 | Yoke nut | Carbon steel/SS |
14 | Eye bolt and nut | A 193 B7/A194 2H~A193 B8/A194 8/A |
13 | Pin | Carbon steel/stainless steel |
12 | Stem nut | ASTM A 439-D2/Copper Alloy |
11 | Gland flange | Carbon steel/equivalent to body material |
10 | Gland | Stainless steel A182 F6A,F304,F316,F44,F51,Monel etc. |
09 | Back seat | Stainless steel A182 F6A,F304,F316,F44,F51,Monel etc. |
08 | Stem | Stainless steel A182 F6A,F304,F316,F44,F51,Monel etc. |
07 | Seat ring | A105/F304/F316 + SS304/SS316/SS13Cr/STL6/Monel etc. |
06 | Flexible Wedge / Solid Wedge | Material see body |
|
Class | Dimensions |
150LB | Size | inch | 2 | 2-1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 | 28 | 30 | 32 | 34 | 36 |
L-RF | mm | 178 | 191 | 203 | 229 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 | 559 | 610 | 610 | 710 | 762 | 711 |
L1-BW | mm | 216 | 241 | 283 | 305 | 403 | 419 | 457 | 502 | 572 | 610 | 660 | 711 | 813 | 864 | 914 | 914 | 965 | 1016 | 1016 |
L2-RTJ | mm | 191 | 203 | 216 | 241 | 279 | 305 | 343 | 368 | 394 | 419 | 445 | 470 | 521 | 559 | 610 | 610 | 710 | 762 | 711 |
H | mm | 400 | 490 | 510 | 585 | 795 | 1015 | 1230 | 1465 | 1755 | 2030 | 2210 | 2510 | 2880 | 2930 | 3150 | 3200 | 3450 | 3600 | 3735 |
K | mm | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 450 | 500 | 500 | 600 | 750 | 750 | 915 | 915 | 915 | 1000 | 1000 | 1000 |
Wt | RF | kg | 18 | 28 | 30 | 50 | 85 | 128 | 220 | 310 | 450 | 550 | 700 | 810 | 1130 | 1680 | 2230 | 2780 | 2860 | 3050 | 3700 |
BW | kg | 15 | 22 | 26 | 40 | 77 | 118 | 200 | 290 | 435 | 510 | 650 | 880 | 1100 | 1800 | 2200 | 2650 | 2950 | 3250 | 3520 |
RTJ | kg | 20 | 29 | 37 | 56 | 84 | 138 | 210 | 310 | 450 | 565 | 740 | 927 | 1125 | 1700 | 2235 | 2800 | 2900 | 3070 | 3750 |
300LB | Size | inch | 2 | 2-1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 | 28 | 30 | 32 | 34 | 36 |
L-RF | mm | 216 | 241 | 283 | 305 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 | 1245 | 1346 | 1397 | 1524 | 1626 | 1727 |
L1-BW |
L2-RTJ | mm | 232 | 257 | 298 | 321 | 419 | 435 | 473 | 518 | 778 | 854 | 930 | 1010 | 1165 | 1270 | 1372 | 1422 | 1553 | 1654 | 1756 |
H | mm | 470 | 525 | 533 | 610 | 845 | 1050 | 1295 | 1600 | 1830 | 2035 | 2195 | 2470 | 2900 | 3100 | 3360 | 3650 | 3700 | 3750 | 3800 |
K | mm | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 450 | 500 | 500 | 600 | 750 | 750 | 915 | 915 | 915 | 1000 | 1000 | 1000 |
Wt | RF | kg | 24 | 44 | 48 | 73 | 145 | 226 | 350 | 580 | 715 | 1050 | 1235 | 1655 | 2320 | 2860 | 3275 | 4230 | 4572 | 4850 | 5240 |
BW |
RTJ | kg | 20 | 35 | 37 | 54 | 110 | 174 | 285 | 495 | 615 | 940 | 1090 | 1500 | 2100 | 2580 | 3300 | 4000 | 4350 | 4510 | 4895 |
600LB | Size | inch | 2 | 2-1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 | 28 | 30 | 32 | 34 | 36 |
L-RF | mm | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 | 1448 | 1549 | 1651 | 1778 | 1930 | 2083 |
L1-BW |
L2-RTJ | mm | 295 | 333 | 359 | 435 | 562 | 664 | 791 | 841 | 892 | 994 | 1095 | 1200 | 1407 | 1461 | 1562 | 1664 | 1794 | 1946 | 2099 |
H | mm | 495 | 550 | 615 | 735 | 1005 | 1245 | 1480 | 1730 | 1915 | 2050 | 2260 | 2620 | 2900 | 3075 | 3238 | 3600 | 3940 | 4250 | 4400 |
K | mm | 200 | 250 | 300 | 350 | 450 | 500 | 600 | 750 | 850 | 850 | 960 | 960 | 1000 | 1000 | 1250 | 1250 | 1500 | 1650 | 1800 |
Wt | RF | kg | 35 | 55 | 72 | 126 | 365 | 444 | 700 | 940 | 1310 | 1610 | 2070 | 2405 | 3810 | 4380 | 4910 | 5240 | 6835 | 7430 | 8800 |
BW |
RTJ | kg | 32 | 47 | 64 | 103 | 218 | 374 | 570 | 830 | 1012 | 1217 | 1760 | 2000 | 3200 | 3970 | 4280 | 4875 | 5615 | 6630 | 7610 |
900LB | Size | inch | 2 | 2-1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 | 28 | 30 | 32 | 34 | 36 |
L-RF | mm | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 |
|
|
|
|
|
|
L1-BW |
L2-RTJ | mm | 371 | 422 | 384 | 460 | 613 | 740 | 841 | 968 | 1038 | 1140 | 1232 | 1334 | 1568 |
|
|
|
|
|
|
H | mm | 590 | 700 | 740 | 870 | 1120 | 1390 | 1592 | 1765 | 2025 | 2175 | 2510 | 2750 | 3240 |
|
|
|
|
|
|
K | mm | 250 | 300 | 350 | 450 | 500 | 600 | 750 | 850 | 850 | 960 | 960 | 1000 | 1000 |
|
|
|
|
|
|
Wt | RF | kg | 59 | 79 | 115 | 198 | 407 | 725 | 1091 | 2161 | 2161 | 3197 | 4409 | 6063 | 7937 |
|
|
|
|
|
|
BW |
|
RTJ | kg | 53 | 71 | 103 | 178 | 366 | 652 | 981 | 1945 | 1945 | 2877 | 3968 | 5456 | 7145 |
|
|
|
|
|
|
1500LB | Size | inch | 2 | 2-1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 | 28 | 30 | 32 | 34 | 36 |
L-RF | mm | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 | 1537 | 1664 | 1943 |
|
|
|
|
|
|
L1-BW |
L2-RTJ | mm | 371 | 422 | 473 | 549 | 711 | 841 | 1000 | 1146 | 1276 | 1407 | 1559 | 1686 | 1972 |
|
|
|
|
|
|
H | mm | 615 | 705 | 750 | 927 | 1190 | 1525 | 1855 | 2185 | 2215 | 2380 | 2580 | 2195 | 3400 |
|
|
|
|
|
|
K | mm | 250 | 350 | 350 | 450 | 600 | 750 | 850 | 850 | 960 | 960 | 1000 | 1000 | 1250 |
|
|
|
|
|
|
Wt | RF | kg | 116 | 166 | 209 | 296 | 720 | 1275 | 2092 | 2951 | 4382 | 6355 | 8965 | 13100 | 15862 |
|
|
|
|
|
|
BW |
RTJ | kg | 105 | 150 | 188 | 265 | 650 | 1145 | 1880 | 2655 | 3945 | 4752 | 8070 | 11790 | 14275 |
|
|
|
|
|
Prod Model: |
FYV |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
2''-36'' |
Class: |
150lb-1500lb |
O-Ring Sealing: |
PTFE,NBR,Rptfe |
Ends Con: |
RF,Rtj,Sw,Bw |
Connection Form: |
Flange |
Material: |
Carbon Steel |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Inside Gate Valve |
Application: |
Water Industrial Usage |
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.
Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
