STANDARDS:
1) General design and manufacturing: API 609 category B
2) Pressure temperature rating: ANSI B 16.34
3) Valve face to face dimensions: API 609 category B / ANSI B 16.10
4) Valve inspection and testing: API 598 / ANSI / FCI 70-2
5) Flange standard conformity: ANSI B 16.5 Class 150
TECHNICAL SPECIFICATIONS:
1) Size range: 80 NB to 600 NB
2) Construction type: Zero / Double / Triple offset Disc Design High Performance Butterfly valve
3) Valve type: Soft seated PTFE seat version / Metal to metal seated version
4) Body type & End connection: Wafer sandwiched / Wafer lugged / Double Flanged
5) Seat leakage performance: Soft seated PTFE seat version /Metal to metal seated version
6) Pressure rating: ANSI 150 class
7) Operating temperature range: -500 ° C to 6000° C (Depending on MOC and type of valve)
8) Operation:
Handlever for sizes 80 NB to 150 NB
Worm gear box for sizes 80 NB to 600 NB
Pneumatic / Electric actuator operation - optional
MATERIAL OF CONSTRUCTION:
1) BODY:
C. S. (WCB) / S. S. 304 (CF8) / S. S. 316 (CF8M) / S. S. 304L (CF3) / S. S. 316L (CF3M)
2) SEAT:
PTFE, 316 INCONEL (On Request)
3) DISC:
C. S. (WCB) / S. S. 304 (CF8) / S. S. 316 (CF8M) / S. S. 304L (CF3) / S. S. 316L (CF3M)
4) SHAFT:
S. S. 410 (13% Cr. ) / S. S. 304 (CF8) / S. S. 316 (CF8M) / S. S. 304L (CF3) / S. S. 316L (CF3M)
Elastic property of composite metal sealing ring to perform zero leakage
Torque seal to ensure persistent two-way zero leakage

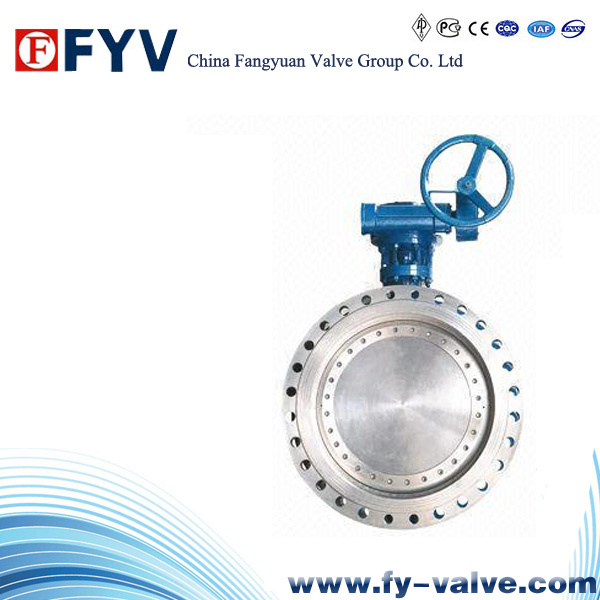

The design of right-angled rotation with zero friction is implemented by the distinctive triple eccentric principle
It eliminates the friction between the seat and sealing ring in 90 rotation
One-piece hard-surface seat may adapt to many working conditions, which is featured by long service life and easy maintenance
One-piece cast (sheet welded) body, face-to-face dimensions conforming to ISO5752, ASMEB16.10 and API609, replacement to high performance butterfly valves and other types of valves, easy and flexible installation
Anti-blowout stem for high dependability, completely conforming to API609
The valve position indicator on the stem and the flange mounted at the top are in favor of the indication of disc position
The stem of triple eccentric butterfly valve is that a shaft, stem and disc are connected by of pin-key combination
| NO. | Part name | Material |
| A216 WCB | A217 LCB | A351 CF8 | A351 CF8M | A351 CF3M |
| 1 | Nether cover | A105 | A105 | A182 F304 | A182 F316 | A182 F316L |
| 2 | Bearing | A182 F6a | A182 F304 | A182 F304 | A182 F316 | A182 F316L |
| 3 | Washer | F304+Flexible graphite |
| 4 | Body | A216 WCB | A217 LCB | A351 CF8 | A351 CF8M | A351 CF3M |
| 5 | Nut | A194 2H | A194 4 | A194 8 | A194 8M | A194 8M |
| 6 | Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M | A193 B8M |
| 7 | Gland | A182 F410 | A182 F304 | A182 F304 | A182 F316 | A182 F316L |
| 12 | Key | A194 2H |
| 13 | Gear action | Nodular cast iron |
| 14 | Yoke | A216 WCB | A351 CF8 |
| 15 | Shaft packing | Flexible graphite | PTFE |
| 16 | Bearing | B148/SF-1/17-7PH |
| 17 | Tailpiece | A216 WCB | A217 LCB | A351 CF8 | A351 CF8M | A351 CF3M |
| 18 | Seal seat | Flexible graphite | PTFE |
| 20 | Pin | A276 316 | A276 316 | A276 316 | A276 316 | A276 316 |
| 21 | Butterfly board | A351 CF8M | A351 CF8M | A351 CF8M | A351 CF8M | A351 CF3M |
| 22 | Shaft | A276 316 | A276 316 | A276 316 | A276 316 | A276 316L
|
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.
Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
