Product Details: Pressure Seal Globe Valve

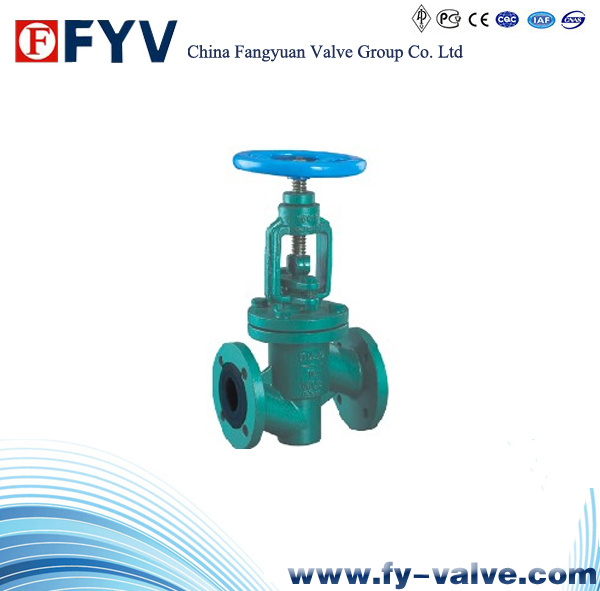

Pressure Seal Globe Valve -> Pressure Seal Globe Valve
Pressure seal bonnet is suggested for better closure in high pressure condition, while bolted bonnet is still available for customer's option.
The pressure seal design incorporates a metal-to-metal seal that becomes tighter as the pressure increases. The initial preload deforms the taper on the soft iron gasket to mate with the taper on the bonnet. The thin knife-edge on the gasket is wedged tightly between the body and the bonnet. The shallow angle insures that the gasket is sealed tightly with only a small upward force on the bonnet. Once the initial seal is created, the body/bonnet joint will remain leak free regardless of thermal or pressure conditions in the valve. After the joint has been assembled, there is no further need to adjust bonnet cap screws.
Applicable Standards of Pressure Seal Globe Valves:
A) Design&Manufacture: BS 1873, ASME B16.34
B) Face to Face: ASME B16.10, EN 558, BS2080
C) Connection End: ASME B16.5, ASME B16.25, EN 1092
D) Test and Inspection: API 598, EN 12266, BS 6755
Sizes: 1/2" - 12" or DN12 - DN300
Pressure Rating: Class150 - Class2500 or PN16 - PN420
Materials of Valve Body: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc.
Operated by: Handwheel, Gear, Pneumatic, hydraulic and Electric actuator.
The features of globe valve
Bolted Bonnet; Outside Screw and Yoke; Rising stems; Metallic seating surfaces.
Body and Bonnet Connection
The body and bonnet of Class150~Class900 globe valves are usually bolted bonnet design. And the Class1500~Class2500 globe valves are usually of pressurized seal design.
Gasket of Cover Flange
Stainless steel + flexible graphite wounded gasket is used for Class 150 and Class 300 globe valve. Stainless steel + flexible graphite wounded gasket is used for Class, and ring joint gasket is also optional for Class 600. Ring joint gasket is used for Class 900 globe valve. Pressurized seal design is used for Class 1500~Class 2500 globe valve.
Actuation
Hand wheel, impact hand wheel and gear box is usually used for globle valve actuation. Chain wheel and electric acduator can be also used for globle valve actuation if being reguested by the customers.
Belleville spring loaded packing impacting system
If being requested by the customer, the Belleville spring loaded packing impacting can be adopted for enhancing the durability and reliability of the packing seal.
Seat
For carbon steek globe valve, the seat is usually forged steel. The sealing surface of the seat is spray welded with hard alloy specified by the customer. Renewable threaded seat is used for NPS<10 globe valve, and welded on seat can be also optional if being requested by the customer. Welded on seat is used for NPS>12 carbon steel globe valves. For stainless steel globe valve, intergral seat is usually adopted, or to weld hard alloy directly intergrally. Threaded or welded on seat is also optional for stainless steel globe valve if being requested by the customer.
Stem design
The stem is of integral forged design. The minimum diameter of the stem shall per the standard requirement.
Stem nut
Usually, the stem nut is made of ASTM A439 D2. It is also can be made of copper ally if being requested by the customer. For large sized globe valve, rolling bearing is fitted at the two sides of stem nut in order to minimize the open and close torque of the globe valve.
Special globe valve
Besides the common globe valves, we also makes cryogenic globe valve, bellow sealed globe valve, Jacketed globe valve, etc.
| Materials |
| NO. | Part Name | Material |
| 24 | Grease Nipple | Brass |
| 23 | Grub Screw | Carbon steel |
| 22 | Hand Wheel Nut | Carbon steel |
| 21 | Hand Wheel | Malleable iron/cast steel ductile iron |
| 20 | Yoke Nut | Carbon steel/stainless steel |
| 19 | Eye Bolt and Nut | A 193 B7/A194 2H~A193 B8/A194 8 |
| 18 | Pin | Carbon steel/stainless steel |
| 17 | Stem Nut | A 439-D2/cu-alloy |
| 16 | Gland Flange | Carbon steel/stainless steel |
| 15 | Gland | Stain less steel |
| 14 | Gland Bush | Carbon steel/stainless steel |
| 13 | Back Seat | Stainless steel |
| 12 | Disc Nut | CS+SS/SS/SS+STL |
| 11 | Stem | Stainless steel |
| 10 | Seat Ring | CS+SS/SS/SS+STL(See body material) |
| 09 | Disc | CS+SS/SS/SS+STL(See body material) |
| NO. | Part Name | WCB | LCB | WC6 | WC9 |
| 08 | Stud and Nut | A193 Gr B7/A194 Gr 2H | A193 Gr B7/A194 Gr 4 | A193 Gr B16/A194 Gr 4/7 | A193 Gr B16/A194 Gr 4/7 |
| 07 | Gland Packing | Graphite | Graphite | Graphite | Graphite |
| 06 | Gasket | Soft lron | Soft lron | Ss304 | Ss304 |
| 05 | Thrust Ring | A105 | A182 F304 | A182 F11 | A182 F22 |
| 04 | Back Up Ring | A105 | A182 F304 | A182 F11 | A182 F22 |
| 03 | Yoke | A216 Gr WCB | A352 Gr LCB | A271 Gr WC6 | A271 Gr WC9 |
| 02 | Bonnet | A216 Gr WCB | A352 Gr LCB | A271 Gr WC6 | A271 Gr WC9 |
| 01 | Body | A216 Gr WCB | A352 Gr LCB | A271 Gr WC6 | A271 Gr WC9 |
| NO. | Part Name | C5 | C12 | CF8 | CF8M |
| 08 | Stud and Nut | A193 Gr B16/A194 Gr 4/7 | A193 Gr B16/A194 Gr 4/7 | A193 Gr B7/A194 Gr 2H | A193 Gr B7/A194 Gr 2H |
| 07 | Gland Packing | Graphite | Graphite | Graphite | Graphite |
| 06 | Gasket | Ss304 | Ss304 | Ss304 | Ss316 |
| 05 | Thrust Ring | A182 F22 | A182 F22 | A182 F304 | A182 F316 |
| 04 | Back Up Ring | A182 F22 | A182 F22 | A182 F304 | A182 F316 |
| 03 | Yoke | A216 Gr C5 | A217 Gr C12 | A351 Gr CF8 | A351 Gr CF8M |
| 02 | Bonnet | A216 Gr C5 | A217 Gr C12 | A351 Gr CF8 | A351 Gr CF8M |
| 01 | Body | A216 Gr C5 | A217 Gr C12 | A351 Gr CF8 | A351 Gr CF8M |
Dimensions (mm) and weight for ANSI Class 600
| Size | inch | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 |
| L | mm | 292 | 330 | 356 | 432 | 508 | 559 | 660 | 787 | 838 | 889 | 991 |
| L-SP | mm | 178 | 216 | 254 | 305 | 381 | 457 | 584 | 711 | 813 | 889 | 991 |
| H | mm | 510 | 610 | 610 | 725 | 800 | 1010 | 1180 | 1360 | 1780 | 1800 | 2160 |
| W | mm | 250 | 300 | 300 | 350 | 500 | 550 | 600 | 600 | 400 | 650 | 650 |
| Weight | KG | 38 | 45 | 60 | 95 | 150 | 230 | 540 | 1150 | 1720 | 2530 | 2900 |
Dimensions (mm) and weight for ANSI Class 900
| Size | inch | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 |
| L | mm | 368 | 419 | 381 | 457 | 559 | 610 | 737 | 838 | 965 | 1029 | 1130 |
| L-SP | mm | 225 | 254 | 305 | 365 | 432 | 508 | 660 | 787 | 914 | 991 | 1092 |
| H | mm | 550 | 580 | 675 | 750 | 815 | 1085 | 1300 | 1420 | 1825 | 2000 | 2310 |
| W | mm | 300 | 350 | 350 | 350 | 350 | 350 | 350 | 400 | 450 | 650 | 650 |
| Weight | KG | 55 | 80 | 80 | 130 | 250 | 360 | 900 | 1520 | 2050 | 3050 | 3600 |
Dimensions (mm) and weight for ANSI Class 1500
| Size | inch | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
| L | mm | 368 | 419 | 470 | 546 | 673 | 705 | 832 | 991 | 1130 | 1257 |
| L-SP | mm | 216 | 254 | 305 | 405 | 483 | 559 | 711 | 864 | 991 | 1067 |
| H | mm | 565 | 580 | 380 | 800 | 825 | 1130 | 1450 | 1535 | 2311 | 2691 |
| W | mm | 300 | 350 | 400 | 450 | 450 | 450 | 450 | 500 | 650 | 650 |
| Weight | KG | 55 | 80 | 95 | 160 | 350 | 520 | 1430 | 2280 | 2830 | 3600 |
Dimensions (mm) and weight for ANSI Class 2500
| Size | inch | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| L | mm | 451 | 508 | 578 | 673 | 794 | 914 | 1022 | 1270 | 1422 |
| L-SP | mm | 279 | 330 | 368 | 457 | 533 | 610 | 762 | 914 | 1041 |
| H | mm | 575 | 605 | 725 | 835 | 875 | 1200 | 1510 | 1720 | 2692 |
| W | mm | 350 | 350 | 350 | 400? | 400 | 400 | 450? | 650 | 650 |
| Weight | KG | 70 | 110 | 140 | 350 | 950 | 1350 | 2000 | 2500 | 3300 |
