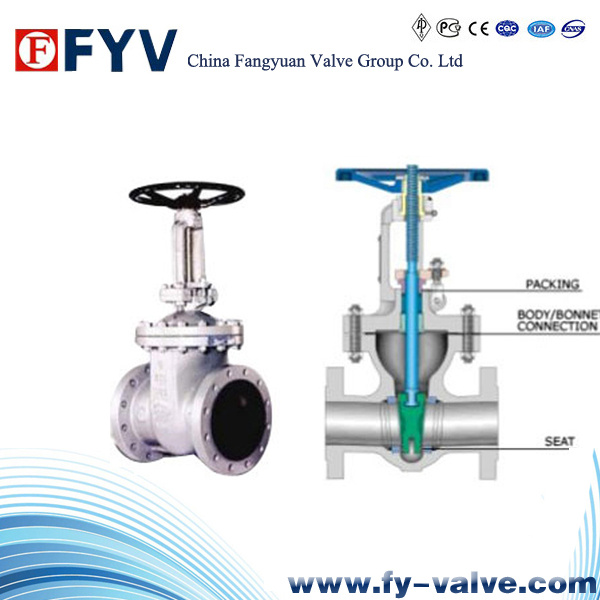

GATE VALVE
Delivery Size: 15 mm to 2000 mm
Temperature Range: -10° C to 400° C
Material: Cast Steel Cast IronCarbon Steel Stainless SteeL Alloy Steel Duplex Steel
Pressure Class: 150 300 600 800 1500 2500
Application: Trim 1 Trim 5 Trim 8
Option: Pressure Safety Forged JISI API
About us
Our history: Established in 1998, more than 16 years experience in manufacturing and exporting valves.
Certificates:
Quality is controlled strictly to ISO9001, ISO14001, OHSA18001, API and CE certifications
Customer area:
Asia
America
Middle East
Europe
Africa
Our advantages:
Quality first, and price competitive
Valve choosing Solution Offered
Manufacture ANSI, API, DIN, BS, JIS, GB standard valves
Pressure range from 125LBto 4500LB, and size range from 1/4"to 52"
After-sale Service Reliable
Customer Label Offered(OEM)
Making progress with Customers
Product range:
Valves: Gate valve, check valve, globe valve, ball valve, butterfly valve, Titanium alloy valve, needle valve, etc.
Flanges and Pipe fittings: All kinds of flanges, elbow, tee, caps, union, plug, coupling, reducer, etc.
Small brass valve: Ball valve, angle valve, etc.
We welcome you send the inquiry to us and it would be our pleasure to begin a business relationship with you!
| ITEM | PART NAME | MATERIAL |
| 1 | Body | ASTM A216 GR.WCB |
| 2 | Seat Ring | ASTM A105 + Stellite Faced |
| 3 | Disc | ASTM A216 GR.WCB+13Cr Faced |
| 4 | Stem | ASTM A182 GR.F6 |
| 5 | Gasket | Soft Iron + Graphite |
| 6 | Bonnet | ASTM A216 GR.WCB |
| 7 | Bonnet Bolt Nuts | ASTM A194 GR.2H |
| 8 | Bonnet Bolts | ASTM A193 GR.B7 |
| 9 | Backseat Bushing | ASTM A276 Type 410 |
| 10 | Stem Packing | Braided Graphite & Die Formed Graphite Ring |
| 11 | Eye Bolt Pins | Die formed Graphite Ring Carbon Steel |
| 12 | Gland Eye Bolts | ASTM A307 GR.B |
| 13 | Gland | ASTM A276 Type 410 |
| 14 | Gland Flange | ASTM A216 GR.WCB |
| 15 | Eye Bolt Nuts | ASTM A194 GR.2H |
| 16 | Grease Nipple | Carbon Steel |
| 17 | Stem Nut | ASTM A439 GR.D-2 |
| 18 | Retaining Nut | Carbon Steel |
| 19 | Hand wheel | Ductile Iron |
| 20 | Hand wheel Nut | Carbon Steel |
| 21 | Screw | Carbon Steel |
| 22 | Yoke | ASTM A216 GR.WCB |
| 23 | Yoke Pan Bolt Nuts | ASTM A194 GR.2H |
| 24 | Yoke Pan Bolts | ASTM A193 GR.B7 |
| 25 | Bearing | Steel |
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.
Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
