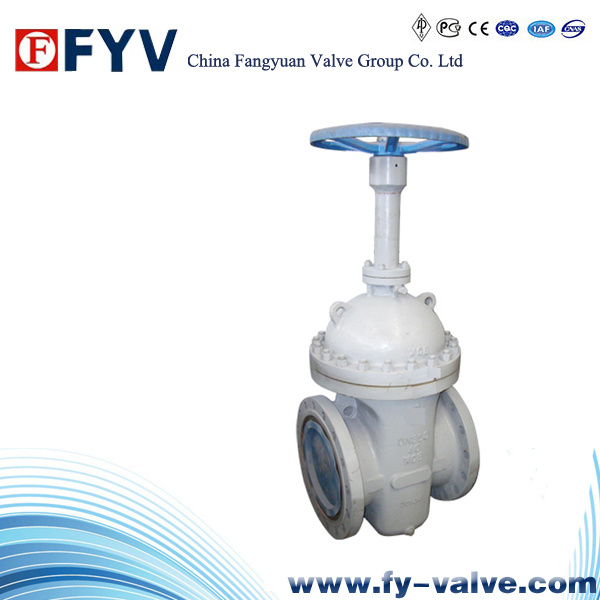

API Slab Gate Valve/Expanding Gate Valve
| Price: |
US $ 99-199/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
1. Full-bore designed, can be widely used on pipelines that need to be cleaned by tube cleaner, and never cause block or damage to valve and the fittings.
2. Floating seat structure provides soft-hard sealing.
3. Metal to metal seal: Valves will be deposit-welded with hard sealing alloy directly.
4. Unique top-assembled design enables all trims be replaced in line.
5. The chamber is entirely isolated from medium when the valve is fully opened or closed. Under any accident, it's possible to remove malfunction, drain and replace packing after releasing pressure.
6. When leakage happens around sealing face accidentally, sealing gum should be injected right after releasing the pressure through grease injection, so as to carry out further measure. (Attention: This method can only be used to cope with emergency before carrying out any measure. )
7. Because of the absolutely bidirectional sealing, when the pressure of the valve rises abnormally, making it impossible to vent the pressure directly through the sealing face, the security of pipelines and facilities can be ensured by the safety valve installed on the body.
8. The valve is designed to be fireproof, in accordance with JB/T6899 and API-6FA, and can be installed at any angle.
9. Manually operated valve can be operated by both handwheel and gearwheel. The selection of autocontrol actuator depends on specific requirement, such as pneumatic equipment, fluid drive and electric equipment, in order to control the valve locally or distantly or through computer. The valve can be used as quick interception valve when it is pneumatic, and it only takes less than 30 seconds to finish the whole process.
10. The valve can be flanged or butt welded. GB, JB, ZB, SH, HG, CJ and ISO, ANSI standards can be adopted according to specific requirements.
Product parameter
Main material | WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, CN7M, CF8C, 4A, A105, LF2, F304, F316, F304L, F316L, F321, F51, ect. |
| Pressure rating | Class 150 to Class 2500 (PN2.5 to PN 420) |
| Standards applied | API. ASME, ANSI, NACE, CE/ EN, DIN, JIS, BS, ISO, TS, GB, etc. |
| Operative temperature | -196 °C to 980 °C ( -320.8 °F to 1796 °F) |
| Optional operation | Manual, Gear, Electric, Pneumatic, Hydraulic. |
| Prod Model: |
FYV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2'-24'' |
| Class: |
150lb-300lb |
| O-Ring Sealing: |
PTFE,NBR,Rptfe |
| Ends Con: |
RF,Rtj,Sw,Bw |
| Material: |
Carbon Steel |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Industrial Usage |
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.
Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
