Seat adopts floating piston structure in order to enable theimport and outlet to realize bidirectional sealing and small switch working torque
Seat face of the soft seal valve insert PTFE to realize double seal, the seat face also acts as removing the dirt on the wedge disc
For the valve with metalto-metal seal, there is grease injector outside, grease gets into the sealing face through the injector and seat to realize the valve up to null leak
When fully opened, the valves channel is smooth and linear, with an extremely small flow resisting coefficient and no pressure loss, the pipeline can be cleaned with hair-ball through it
Using the packing structure with the ability of self-seal, it needs no constantly adjustment, features open and close lightly andseal reliably
An assisting sealing grease injection structure is set in thepacking to realize the valve up to null leak, it settling the problem for the packing place of universal valves to be easiest leak outward
Automatic removal of the high pressure in the internal cavity when the valve is about to close so as to ensure safety
Fully sealed structure leaves a good protective property, suitable for the requirement of 24-houe duty
Drive mode: Manual, pneumatic, electric, hydraulic, gearoperation
Structure: With flow guide hole, without flow guide hole
Used for the medium as petroleum, natural gas and more in oiltransportation pipeline, refinery, natural gas exploitation, gatherand delivery, petroleum exploitation, transportation and otherpipelines, as a device to flow and regulate medium in lines
Material: WCB, WCC, WC9, CF8, CF3, CF8M, LCB, CF3M, CF8C and more
Class: 150 to 2500lb
Size: 1/2 to 36 inches
Standards: API6D, ASME B16.34
Face to face: API6D, ASME B16.10
End flange: ASME B16.47, ASME B16.5
BW end: ASME B16.25
Test: API 598
Certifications: ISO9001, API6D, API6Fa, CE
| Main material | WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, CN7M, CF8C, 4A, A105, LF2, F304, F316, F304L, F316L, F321, F51, ect. |
| Pressure rating | Class 150 to Class 2500 (PN2.5 to PN 420) |
| Standards applied | API. ASME, ANSI, NACE, CE/ EN, DIN, JIS, BS, ISO, TS, GB, etc. |
| Operative temperature | -196 °C to 980 °C ( -320.8 °F to 1796 °F) |
| Optional operation | Manual, Gear, Electric, Pneumatic, Hydraulic. |
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.

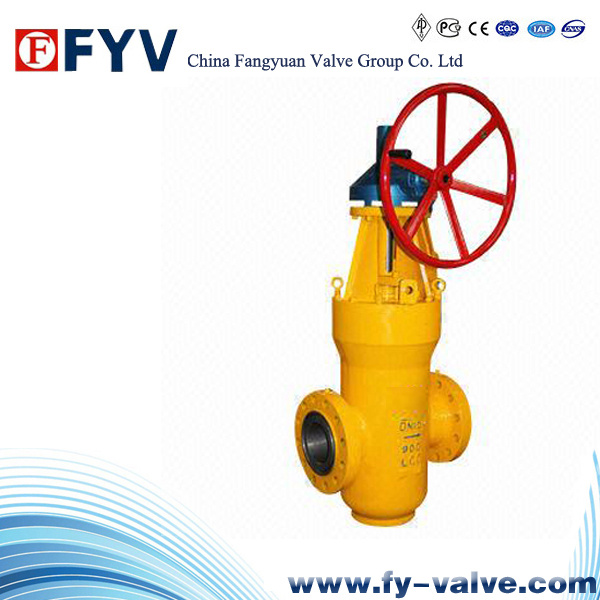

Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
