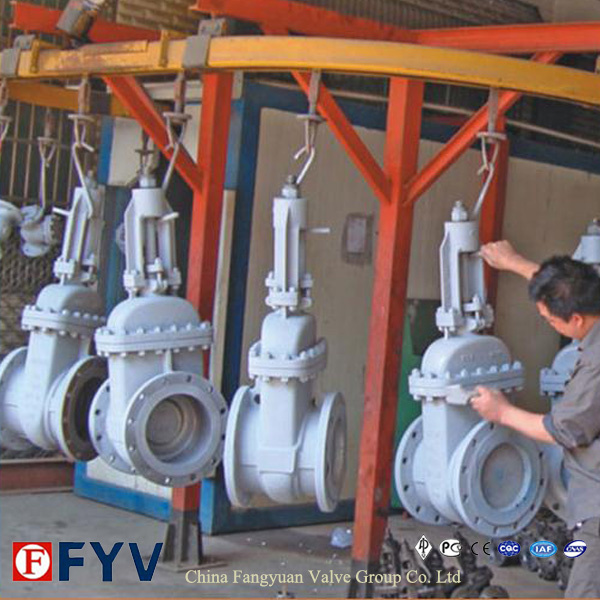

API6d Manual Cast Steel Wedge Gate Valve
Price: |
US $ 29-49/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal |
Stainless Steel Bellow Sealed Globe Valve
Design std: ANSI B16.10
Flange to flange: ANSI B16.5
Test and specifications: API598
Bellow sealed valve factory, bellow sealed valve manufacturers. Bellow sealed valve applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, industry, pharmacy, chemical fertilizer, electric power industry etc under nominal pressure of PN1.6-PN10Mpa and working temperature of -20~350º C. Include DIN bellow seal glove valve, A105. Bellow seal globe valve, ANSI bellow seal globe valve, Angel bellow seal globe valve with carbon steel, stainless steel mater etc.
nominal pressure(LB) | shell test(MPa) | sealing test(MPa) | suitable temp(°C) | suitable madium |
150 | 3.0 | 22 | -20°C-350°C | water,steam,oil,etc. |
300 | 7.5 | 5.5 |
NO. | part name | material |
1 | body | WCB\CF8\CF3 |
2 | dsc | 2CR13\SS304\SS316 |
3 | hinge pin | SS304\SS316 |
4 | bellows combination | SS304\SS316L |
5 | bonnet | WCB\SS304\SS316 |
6 | packing | Flexible graphite\PTFE |
7 | gland | 25#\304\316 |
8 | locator | 25#\304\316 |
9 | stem nut | ZQA19-4 |
10 | hand wheel | carbon steel |
11 | cap | 25# |
12 | oil cup | brass |
13 | hexagon nut | ASTMA193 2H\A193-8\A193-8M |
14 | bolt | ASTMA193 B7\A193-B8\A193-B8M |
15 | gasket | flexible graphite+stainless steel\PTFE |
16 | stem | 2Cr13\SS304\SS316 |
DN | L | H | W | Process | Kv | WeightKg |
150LB | 300LB | 150LB | 300LB | h | 150LB | 300LB |
15 | 108 | 452 | 191 | 120 | 140 | 6 | 4.2 | 3.7 | 4.3 |
20 | 117 | 178 | 191 | 120 | 140 | 6 | 7.4 | 4.4 | 4.8 |
25 | 127 | 203 | 197 | 140 | 140 | 8 | 12.0 | 5.1 | 6.3 |
32 | 140 | 216 | 200 | 140 | 160 | 8 | 19.0 | 7.5 | 7.8 |
40 | 165 | 229 | 218 | 160 | 180 | 13 | 30.0 | 8.8 | 10.3 |
50 | 203 | 267 | 220 | 180 | 180 | 13 | 47.0 | 12.2 | 12.6 |
65 | 216 | 292 | 238 | 180 | 200 | 16 | 77.0 | 16.1 | 19.0 |
80 | 241 | 318 | 250 | 200 | 250 | 20 | 120.0 | 21.4 | 25.0 |
100 | 292 | 356 | 300 | 250 | 300 | 25 | 188.0 | 33.0 | 35.0 |
125 | 356 | 400 | 350 | 300 | 350 | 32 | 288.0 | 51.0 | 56.0 |
150 | 406 | 444 | 350 | 300 | 350 | 40 | 410.0 | 69.0 | 74.0 |
200 | 495 | 559 | 450 | 400 | 450 | 50 | 725.0 | 105.0 | 160.0 |
250 | 622 | 622 | 520 | 520 | 520 | 65 | 1145.0 | 180.0 | 260.0 |
300 | 698 | 711 | 520 | 520 | 520 | 75 | 1635.0 |
Prod Model: |
FYV |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
Dn100mm |
Class: |
150lb-1500lb |
Ends Con: |
RF,Rtj,Sw,Bw |
Seals: |
PTFE,NBR,Rptfe |
Structure: |
Angle Type Globe Valve |
Sealing Form: |
Bellows Globe Valve |
Stem Thread Position: |
Outside Screw Stem Globe Valve |
Application: |
Bellows Globe Valve |
Standard: |
ANSI |
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.
Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
