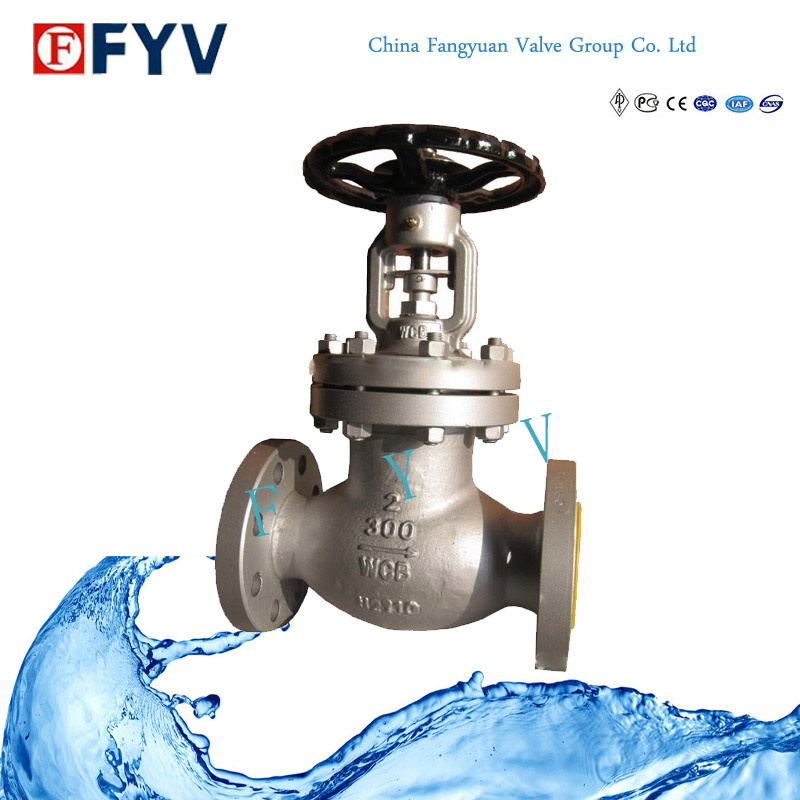

API6d Wcb/Forged Steel Globe Valve with Manual
Price: |
US $ 29-99/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P |
Technical Specifications:
Design and Manufacture: DIN3356, BS160, BS5160 or API602
Face to Face Dimension: DIN3202 or ANSI B16.10,
Flanged Dimension: DIN2543-2545 or ANSI B16.5
Socketed Ends to ANSI B16.11
Inspection and Test: DIN3230, API 598 or MSS SP-117
Size Range of Bellow Sealed Globe Valve: 1/2" to 12"N. B. (DN15~DN300)
Bellow Sealed Globe Valve Pressure Ratings: ANSI 800, 900, 1500 (PN16~PN40)
Bellow Sealed Globe Valve Materials Available in: CS-G25, A105, F304, F316
ITEM | PART NAME | MATERIAL |
1 | Body | ASTM A216 GR.WCB |
2 | Seat Ring | ASTM A105 + Stellite Faced |
3 | Disc | ASTM A105 + 13Cr Faced |
4 | Disc Thrust Plate | ASTM A276 Type 420 |
5 | Disc Nut | ASTM A276 Type 410 |
6 | Stem | ASTM A182 GR.F6 |
7 | Bonnet Bolt Nuts | ASTM A194 GR.2H |
8 | Bonnet Bolts | ASTM A193 GR.B7 |
9 | Gasket | Soft Iron + Graphite |
10 | Backseat Bushing | ASTM A276 Type 410 |
11 | Stem Packing | Braided Graphite & Die formed Graphite Ring |
12 | Bonnet | ASTM A216 GR.WCB |
13 | Eye Bolt Pins | Carbon Steel |
14 | Gland | ASTM A276 Type 410 |
15 | Gland Flange | ASTM A216 GR.WCB |
16 | Gland Eye Bolts | ASTM A307 GR.B |
17 | Eye Bolt Nuts | ASTM A194 GR.2H |
18 | Yoke Bush | ASTM A439 GR.D-2 |
19 | Screw | Carbon Steel |
20 | Hand wheel | Ductile Iron |
21 | Hand wheel Nut | ASTM A194 GR.2H |
22 | Washer | Carbon Steel |
23 | Yoke | ASTM A216 GR.WCB |
24 | Yoke Pan Bolt Nuts | ASTM A194 GR.2H |
25 | Yoke Pan Bolts | ASTM A193 GR.B7 |
26 | Bearing | Steel |
Prod Model: |
FYV |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
2 Inches |
Structure: |
Y-Global Globe Valve |
Stem Thread Position: |
Outside Screw Stem Globe Valve |
Standard: |
JIS |
Sealing Form: |
Bellows Globe Valve |
Application: |
Bellows Globe Valve |
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.
Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
