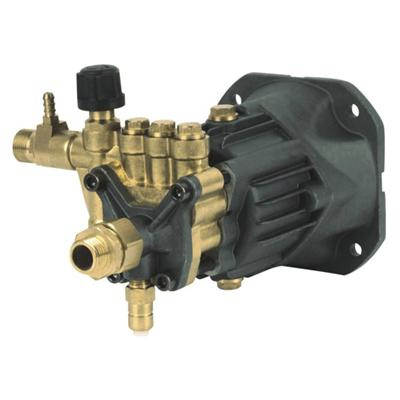

FeatersMounting face
Forged brass manifold.
Anodized die-cast pump housing.
Strengthened aluminium wobble plate.
Dual thrust bearing.
Hardened solid stainless steel plunger.
German U-packing.
Reinforced valve cage, stainless steel pop-off valve
Built-in Thermal relief valve.
Integrated unloader, pressure adjustable
Fix rate detergent injector
Inlet: 3/4NH-11.5 or 3/4BSPP-14
Outlet: M22 thread on
Aluminium manifold.
Coating ceramic plunger.
Vented oil plug.
Model
|
Bore
(mm)
|
Stroke
(mm)
|
Max pressure
|
Flow rate
|
RPM
|
Power required
|
Packing Dim
(L*W*H)cm
|
Weight
(kg)
|
Bar
|
Psi
|
L/min
|
GPM
|
HP
|
KW
|
3WA-2525C
|
15
|
6.3
|
138
|
2000
|
5.84
|
1.54 |
1750 |
|
1.5
|
25×22.5×20
|
4.5
|
3WA-2225C
|
15
|
5.4 |
138
|
2000
|
6.24
|
2.18
|
2880
|
|
2.2
|
25×22.5×20
|
4.5
|
Chinagros International Corporation Limited is established on basis of four combined manufacturers for agricultural machinery and materials such as manual sprayers, power sprayers, pressure sprayer, farm boot, watering can, chemical mask, rat trap, Sunshade net, seed machine, Fogging machine, agri farm machine, and their parts. With around 10, 000 square meters of area, 100 sets of equipment, complete testing and research equipment, strong R and D power, complete and wide product range, the combined company is super supplier agro materials in China. We have already obtained SONCAP, CE, CCC and ISO9000 series certificates for the products quality control. Customer satisfaction is the best praise for our eternal effort. We will do our best to improve ourselves, keep us be ahead of the time, to provide the more better quality products to the customer, try to meet all the requirements from the customer, to do a more better after sale service for the customer.
