Ball Valves
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
1 /Piece |
| Pay Type: |
T/T |

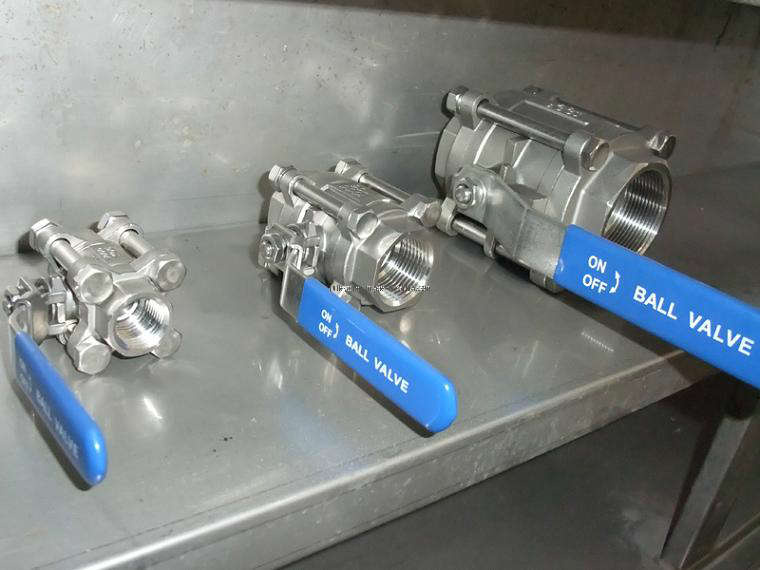

Product Name: Three-piece ball valve
*Features:
-: Application Specification: 1.6-6.4 MPa
-: Temperature range: -20degree ~ 232 degree ~ 350 degree
-: Media: Water, oil, gas and corrosive liquids
-: Thread type: G. NPT. BSPT. BSP. DIN259/2999
*Main parts material:
No. Parts description Material
1 Valve body SS316
2 Ring PTFE
3 Valve cover SS316
4 Sphere SS316
5 Valve stem SS316
6 Nuts SS304
7 Washer SS304
8 Handle case Plastic
9 Handle SS304
10 Valve stem nuts SS304
11 Washer SS304
12 Gland nuts SS304
13 Filler PTFE
14 Thrust washers PTFE
15 Filler PTFE
16 Bolt SS304
SIZE 1/4''-4''
Made in house, cost savings and higher effieciency.
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
VGR--Qingdao Vanguard Golden Relation Co., Ltd.
QDVGR always is committed to QDOS: Higher Quality, on-time Delivery, cOst savings and better Service. During more than 10 years specialized at investment casting and machining, we accumulate much more experience for OEM products. By this, we can do better and win-win for long term.
QDVGR is one professional manufacturer for investment castings, precision castings, middle-temperature green-wax silica-sol castings, low-temperature sodium silicate white wax castings, valves parts, pump parts and assembly products and machining. Our parts and products are exported to UK, Italy, German, Holland, Australia, Japan, USA, Panama and middle-east countries. We hold ISO quality control system to run our factory, which can ensure our parts and products quality very well.
The main capacity of us is as below,
Investment casting: 60tons per month, actually 30tons now, idling 30tons with enough capacity for new and more orders;
Machining: 4 sets CNC lathe with +/-0.015mm tolerance only by turning
Castings and machining:
Size: From 10g to 45kg each piece
Surface finish treatment: Variable such as zinc-plating; Chrome-plating, electro-polishing, mirror-polishing, brush-p olishing, chemical black, powder coating, case harden etc...
Assembly:
Stainless steel ball valves for 1-PC, 2-PC, 3-PC and pneumatic by investment casting, machining, aseembly and pressure-testing;
Stainless steel quick connection couplings from 1/2'' to 6'' by investment casting, machining and assembly in house
Pivot hinges by investment casting, machining, brush-polishing and assembly in house;
Extreme bearings by investment casting, machining, brush-polishing and assembly in house;
Technical and engineering
5 Engineers with 7 to 20 years working experience;
3 quality control people with more than 7 years working experience;
2 technicians with more than 5 years working experience.
We sincerely welcome all of friends in the world to visit our factory for business cooperation, we are expecting for a brilliant future with you together. Give us one chance, let us show you QDOS. Thank you.
