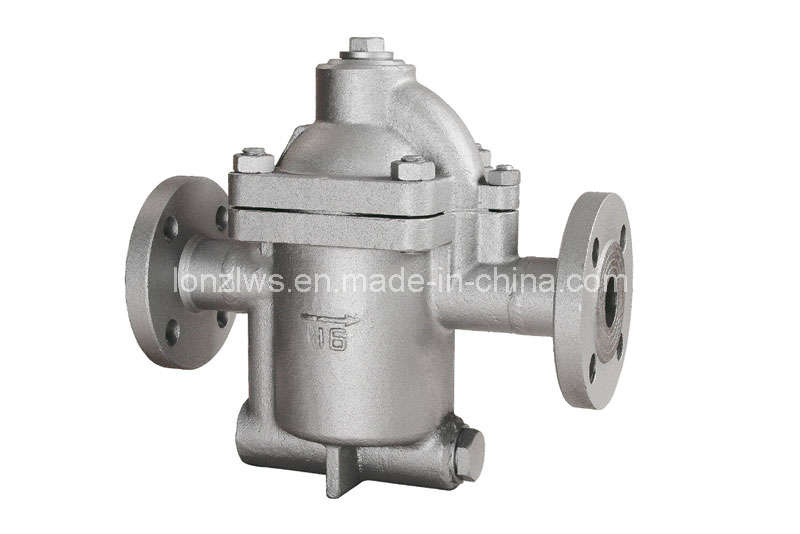

Bell Shape Float Steam trap (Inverse Bucket)
Price: |
US $ 20.95-60.98/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Piece |
Pay Type: |
T/T |
Steam trap
Bell shape float (inverse bucket)
Material: WCB
Connection type:
Flange
structure characteristics
1. It is well adapted to the amount of condensation water,which can discharge water successively or continuously.
2. It is equipped with double seat differential pressure mechanism and SCCV closing system with small size and large cpacity.
3.All the internal parts are made of stainless steel and are installed in the bonnet,which is conveninet for installation and maintenance.
4.Its rate of back pressure is very high with 90%.
5.It is reliable to separate the steam and water, The water and steam goes into the valve bottom through the U type channel.The internal valve is under the water sealed status,which can prevent the leakage of steam.
6.The open type float is resistant to water hammer.There is overflowing air vent in the bucket which can prevent the situations such as vapor lock and air block .
Prod Model: |
SER105F |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Connection Form: |
Flange |
Usage: |
Steam Trap |
Zhejiang Ronze Valve Co., Ltd. is located in well-known China Pump&Valve hometown-Five-star Industrial zone, Oubei town, Wenzhou. The company, established in 1989, being to the first steep provider net of China Petroleum&Natural Group, the pointed manufacture company of the Chemical Industrial Equipment Corpporation, and the mtmbder of China CITYGAS ASSCOCIATION. The company covers 4500 square meters and the construction area is 3400 square meters. It has become a valve company which integrates Researching, manufacturing, designing, sales and after services as a specialized unit. Our main products is API valves, forged valves and steam traps. Including gate valve, globe valve, check valve, ball valve and steam traps. The valves manufactured by our company are widely applicable to the fields of petroleum, chemical industry, power industry, metallurgy, pharmacy paper making and food with good reputation and reliability from users.
The small-bore valves mainly include gate valves, stop valves, check valves and low-temperature valves. All of our products are made in accordance with the API standards.
The steam traps mainly include thermodynamic type, free ball float type, inverted bucket type bimetal type, bellow type, sylphon type, high temperature pressure disc type, and lever ball float type.
Materials of the products can be carbon steel, austenitic stainless steel, alloy steel and other special materials.
Our ball valve, gate valve, globe valve and check valve all sell well in many markets.
