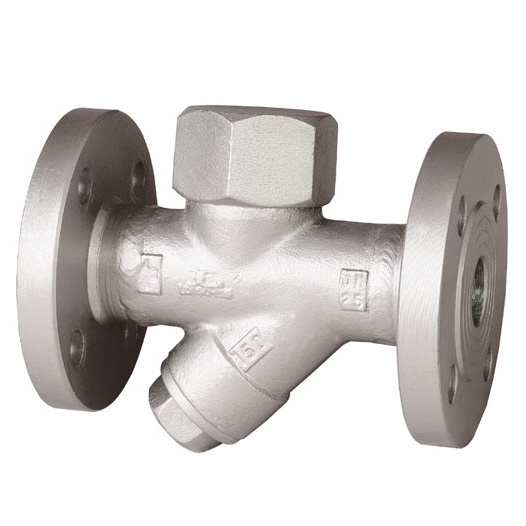

Material: WCB
Connection type: Flange
Pressure: PN16, PN25, PN40
Size: 1/2"-2"
structure characteristics :
1.It has the steam or air thermal insulation device,which will not be effected by the environmental humidity ,It reduces the frequency of motion and lengthens the lifetime.
2.It is equipped with filter and drain valve .
3.It is senstive and reliable in operation with large capacity .
working principle
Thermodynamic steam trap works by moving valve block ups and down. when the valve block is jacked up,the condensation water will be drained out.And when the steam gets into it ,the valve block will close tightly.
Main application :
This type of steam trap is suitable for steam piping and steam equipment,It can prevent the leakage of steam and drain condensation water,which thus can save energy and prevent water hammer situation and the trouble caused by air .
| product model | SIZE | Connection type | max allowable temp. | material of valve body | dimension |
| L | H1 | H2 | W |
| TD42 | 1/2" | NPT | 350 | WCB | 80 | 47 | 54 | 47 |
| 3/4" | NPT | 350 | WCB | 90 | 52 | 59 | 57 |
| 1" | NPT | 350 | WCB | 95 | 59 | 62 | 57 |
| 1/2" | SW | 350 | WCB | 80 | 47 | 54 | 47 |
| 3/4" | SW | 350 | WCB | 90 | 52 | 59 | 57 |
| 1' | SW | 350 | WCB | 95 | 59 | 62 | 57 |
