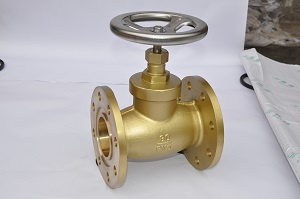

Bf Series Bollows Copper Disconnecting Valve

Bf Series Bollows Copper Disconnecting Valve
Price: US $ 74/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
1\
1\Summary:
\. \,: , , .
Series products can be used as closing the atmospheric pathway when each kind transformer oiling\oil discharge and vacuum oil filling. When use for oiling and oil discharge, install it under the transformer: To be as vacuum oil. When close the atmospheric pathway, install it in the linked tube which is from the transformer to the oil conservator. And also install it in the load tap switch oil storage linked tube pipe.
2\
2\Product Introduction
2.1 BF1-25\BF-25\BF-50\BF-80\BF-100.
2.1 The product specifications include: BF1-25\BF-25\BF-50\BF-80\BF-100.
2.2
2.2 Type explanation
B: Bellows
F: Valve
1: Oil extraction sample mouth
25(50 80 100): Pipe path (mm)
2.3 0.6MPa
2.3 Nominal pressure: 0.6MPA
2.4
2.4 Circulation medium:

Transformer oil
2.5
2.5 Structure
\\\\(), , .
This product are made up of handwheel \shell \bellows \seal washer\gland and so on. Because of compact construction, and better sealing feature, it solves the problem such as oil leakage.
3\\
3\Caution on installation and using 3.1, , , , , .
3.1 When use it, make the handwheel counterclockwise rotation upward, you can open the valve. Hold down the handwheel clockwise rotation downward, you can close the valve. Cut off the oil circuit and the gas circuit.
3.2
3.2 After maintenance, when install it, please note that rotate the handwheel to be opening state, tighten the gland of serial number 4, lest oil leakage.
3.3, , .
3.3 The valve is used for oil discharge, when install it, please note that in the valve body the direction of arrow is consistent with the oil stream direction.
Prod Model: BF25\BF50\BF80\BF100
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Flange
Material: Brass
Application: Industrial Usage
Nominal Pressure: 0.6MPa
TBEA is the leading enterprise in China's power transmission and transformation field whose production capacity ranks the first in China, and the third in the world. TBEA Hengyang Transformer Co., Ltd. Established in 1951, is a proprietary company of the TBEA Co, Ltd. Through 60 years' development, it has become one of modernized manufactures in Chinese transformer field with largest production scale, most advanced equipment and highest voltage level. It has held the core and key technology for installation and commission of equipments for UHV AC and DC power transmission, large thermal power, large hydropower, nuclear power projects all over the world. The company produces 10-1000kV transformers and reactors with annual production capacity of more than 80000MVA.
