Detailed Product Description
Miniature valve
1. ISO 9001: 2000, CE approved
2.1 million times life testing
3. Reliable quality
4. One year guarantee

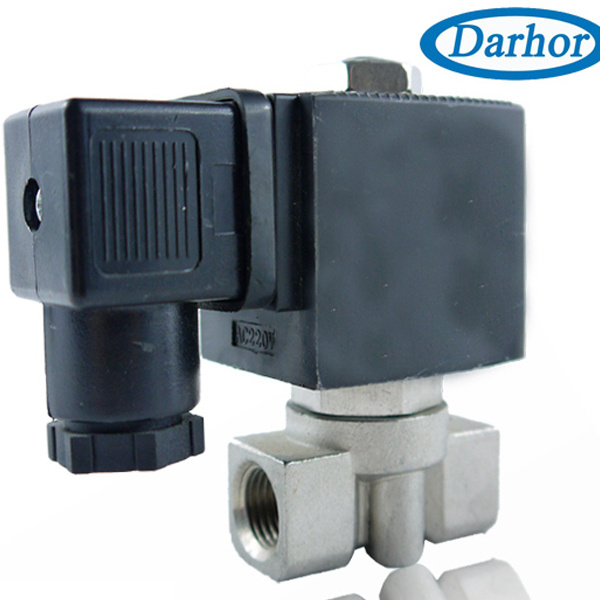

Miniature Valve DHSM31-normally closed
Characteristic: 1. Direct acting miniature construction at low power consumption
2. Compact design to save the space
3. Applied to low pressure system, open from 0 bar
Medium: Air, Water, Steam, Oil, etc
Temperature: NBR Seal: 14F to 176F, -10 to 80
EPDM Seal: 14F to 250F, -10 to 120
VITON Seal: 14F to 300F, -10 to 150
PTFE Seal: -4F to 350F, -20 to 180
Pressure: DHSM31: 0 ~ 16 bar
Port Size: 1/8", 1/4", 3/8", 1/2
Port Thread: BSPP, BSPT, NPT, FLANGE
Orifice (mm): 1.6, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0
Voltage: DC - 12V, 24V
AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance: +/- 10%
Coils: S91B, 17VA (AC), 10W (DC), IP65, 100%ED
Special coils: Latching coil. DC 6 ~ 12 V on request
Material: Body - Brass or stainless steel
Seal -VITON, NBR, EPDM,
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
DHSM31 Normally closed, with Coil S91B
|
Valve Body |
Port Size |
Orifice |
Cv |
Min Pressure(bar) |
Max Pressure(bar) |
Coil |
|
AC(22VA) |
DC(17W) |
|
DHSM3101X X X X |
1/8″ |
1.6 |
0.11 |
0 |
16 |
16 |
S91B |
|
DHSM3103X X X X |
1/8″ |
2.5 |
0.18 |
0 |
12 |
12 |
S91B |
|
DHSM3104X X X X |
1/8″ |
3 |
0.3 |
0 |
10 |
10 |
S91B |
|
DHSM3103X X X X |
1/4″ |
2.5 |
0.18 |
0 |
12 |
12 |
S91B |
|
DHSM3104X X X X |
1/4″ |
3 |
0.3 |
0 |
12 |
12 |
S91B |
|
DHSM3105X X X X |
1/4″ |
3.5 |
0.34 |
0 |
10 |
10 |
S91B |
|
DHSM3106X X X X |
1/4″ |
4 |
0.5 |
0 |
9 |
9 |
S91B |
|
DHSM3107X X X X |
1/4″ |
5 |
0.61 |
0 |
6 |
6 |
S91B |
|
DHSM3105X X X X |
3/8″ |
4 |
0.5 |
0 |
6 |
6 |
S91B |
|
DHSM3106X X X X |
3/8″ |
4.5 |
0.61 |
0 |
4 |
4 |
S91B |
|
DHSM3107X X X X |
3/8″ |
5 |
0.71 |
0 |
3 |
3 |
S91B |
|
DHSM3105X X X X |
3/8″ |
6 |
0.8 |
0 |
3 |
3 |
S91B |
|
DHSM3106X X X X |
3/8″ |
8 |
1.24 |
0 |
1 |
1 |
S91B |
|
DHSM3107X X X X |
1/2″ |
10 |
1.72 |
0 |
1 |
1 |
S91B |
