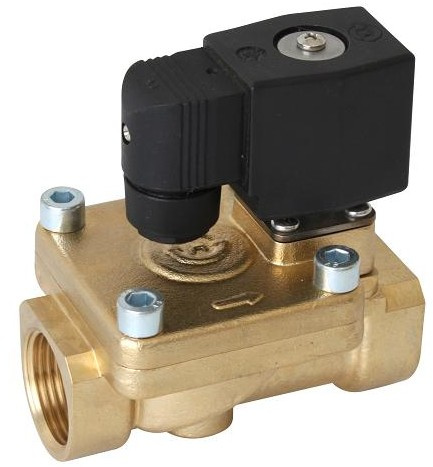

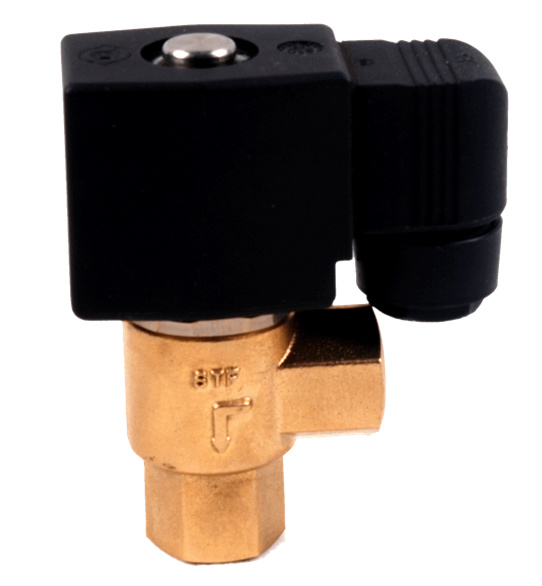

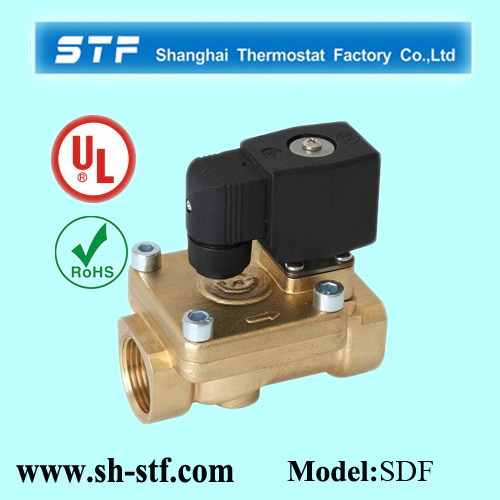

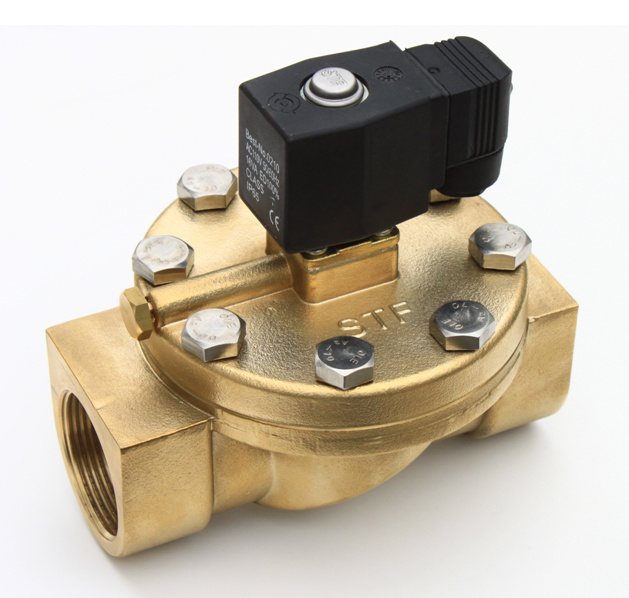

Brass Water Solenoid ValveProduct Photos:
General:
SDF can be used as actor of automation system in water supply system, fire control system, water spray system and for pneumatic hydraulic and food machine application.
Characteristics:
·Suitable for air ,clean water ,steam and ≤4°E viscosity machine oil.
·Coil type:
AC: 24V, 36V, 110V, 220V
DC: 12V, 24V
·Temperature of medium -25ºC to 130ºC.
·Max Working Pressure: 20bar.
Versions with UL/CUL approval can be supplied to order.
Installation:
The valve should be installed in horizontal pipe line under vertical position. The flow direction must be in the arrow direction.
The supply voltage must meet rated input voltage shown on the label of the coil. Coils taking away from valve when energized in coils is forbidden.
|
Model |
Connection size |
(bar)
Opening diff. pressure |
Flow rate
Kv(m 3 /h) |
Dimensions(mm) |
|
L |
W |
H |
|
SDF2D |
Rc1/8 |
0~21 |
0.14 |
31 |
31 |
76 |
|
SDF3D |
0~16 |
0.21 |
|
SDF4D |
0~12 |
0.37 |
31 |
31 |
85 |
|
SDF2Z |
Rc1/8,Rc1/4,Rc3/8 |
0~21 |
0.16 |
30 |
30 |
132 |
|
SDF3Z |
0~16 |
0.27 |
|
SDF8M |
Rc1/4 |
0.3~16 |
1 |
52 |
45 |
89 |
|
SDF10M |
Rc3/8,Rc1/2 |
1.8 |
68 |
45 |
87 |
|
SDF15M |
Rc1/2 |
3 |
79 |
52 |
100 |
|
SDF20M |
Rc3/4 |
5 |
88 |
58 |
105 |
|
SDF25M |
Rc1 |
9 |
104 |
72 |
116 |
|
SDF32M |
Rc5/4 |
14 |
121 |
86 |
129 |
|
SDF40M |
Rc3/2 |
25 |
152 |
126 |
158 |
