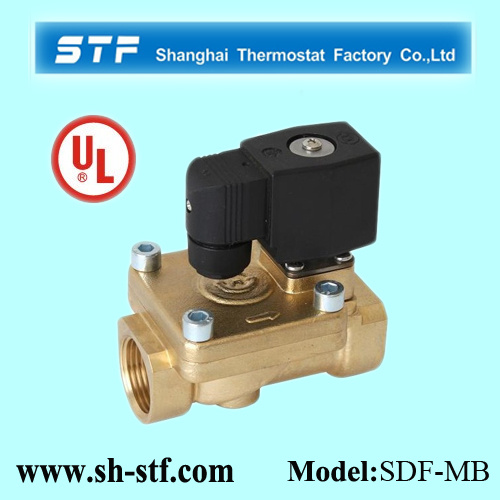

Brass UL water valve
General
SDF can be used as actor of automation system in water supply system, fire control system,
Water spray system and for pneumatic hydraulic and food machine application.
Characteristics
1. Solid forged brass construction.
2. Suitable for air, clean water, steam and ≤ 4° C E viscosity machine oils
3. Coil type:
AC: 24V, 36V, 110V, 220V
DC: 12V, 24V, 110V, 220V.
4. Working Range -25° C to 130° C
5. Max Working Pressure: 20bar
Installation
The valve should be installed in horizontal pipe line under vertical position. The flow direction must be in the arrow direction.
The supply voltage must meet rated input voltage shown on the label of the coil. Coils taking away from valve when energized in coils is forbidden.
| Model | Connection size |
Opening diff. pressure
( bar )
|
Flow rate
Kv(m 3 /h) |
Dimension s (mm) |
L |
W |
H |
SDF2D |
Rc1/8 |
0 ~ 21 |
0.14 |
31 |
31 |
76 |
SDF3D |
0 ~ 16 |
0.21 |
SDF4D |
0 ~ 12 |
0.37 |
31 |
31 |
85 |
SDF2Z |
Rc1/8,Rc1/4,Rc3/8 |
0 ~ 21 |
0.16 |
30 |
30 |
132 |
SDF3Z |
0 ~ 16 |
0.27 |
SDF8M |
Rc1/4 |
0.3~16 |
1 |
52 |
45 |
89 |
SDF10M |
Rc3/8,Rc1/2 |
1.8 |
68 |
45 |
87 |
SDF15M |
Rc1/2 |
3 |
79 |
52 |
100 |
SDF20M |
Rc3/4 |
5 |
88 |
58 |
105 |
SDF25M |
Rc1 |
9 |
104 |
72 |
116 |
SDF32M |
Rc5/4 |
14 |
121 |
86 |
129 |
SDF40M |
Rc3/2 |
25 |
152 |
126 |
158 |
