| Price: | US $ 9.5/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |

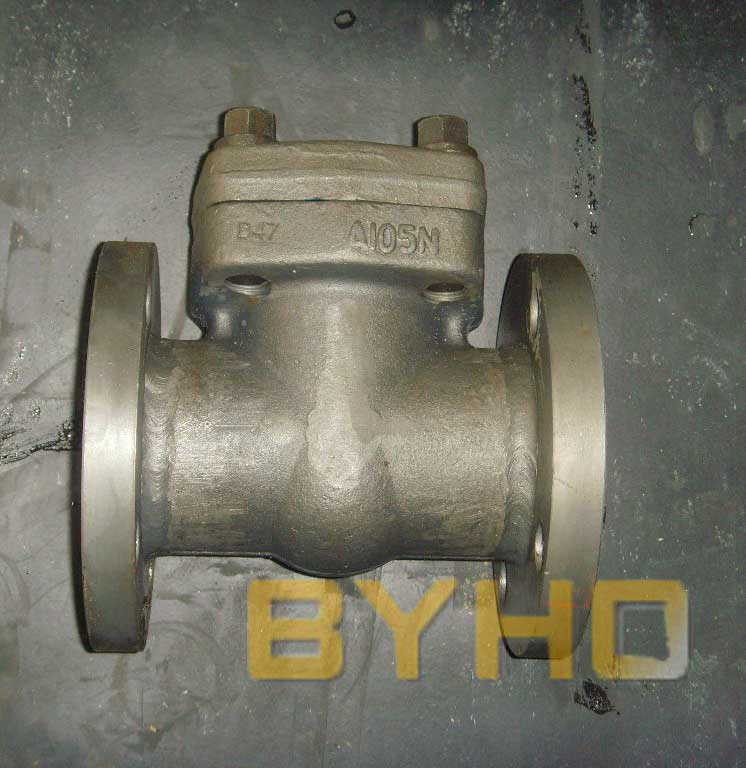

Flanged End Check Valve 150Lb~600Lb
Standard Material Specifications
NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM | |
Type A105 | Type F22 | Type F304(L) | Type F316(L) | ||
1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
2 | Nameplate | SS | |||
3 | Piston Disc | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
4 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
5 | Gasket | Corrueated SS + graphite | SS + PTFE | ||
6 | Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8(M) |
Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3,CH3OOH etc | ||
Suitable Temperature | -29 425 | -29 550 | -29 180 | ||
Note: Other materials are available upon request.
Dimensions (mm) and Weights (Kg)
NPS | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | ||
L(RF)L1(BW) | 150 | 108 | 117 | 127 | 140 | 165 | 203 | |
300 | 152 | 178 | 203 | 216 | 229 | 267 | ||
600 | 165 | 190 | 216 | 229 | 241 | 292 | ||
H | 150,300 | 61 | 61 | 79 | 95 | 103 | 118 | |
600 | 61 | 79 | 95 | 103 | 118 | 135 | ||
Weights | 150 | RF | 2.56 | 3.37 | 4.37 | 8.17 | 8.94 | 12.64 |
BW | 1.70 | 1.90 | 2.10 | 5.12 | 5.50 | 7.89 | ||
300 | RF | 2.73 | 3.65 | 4.74 | 8.77 | 9.60 | 13.70 | |
BW | 1.90 | 2.10 | 3.00 | 5.12 | 6.60 | 7.85 | ||
600 | RF | 3.00 | 4.00 | 5.83 | 9.47 | 10.10 | 15.6 | |
BW | 2.00 | 3.12 | 4.25 | 7.25 | 8.56 | 13.60 | ||
| Prod Model: | H44, H41 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Desing And Manutacture: | BS1868, API 602 |
| Face To Face: | Asme B16.10 |
| Threaded End: | Asme B1.20.1 |
| Flanged End: | ANSI B16.5 |
| Test & Inspect: | API 598 |
| Connection Form: | Thread |
| Structure: | Swing |
| Application: | Household Usage |
| Material: | Forged Steel |
| Function: | Non Return |
| Sealing Form: | Metal Sealed |
