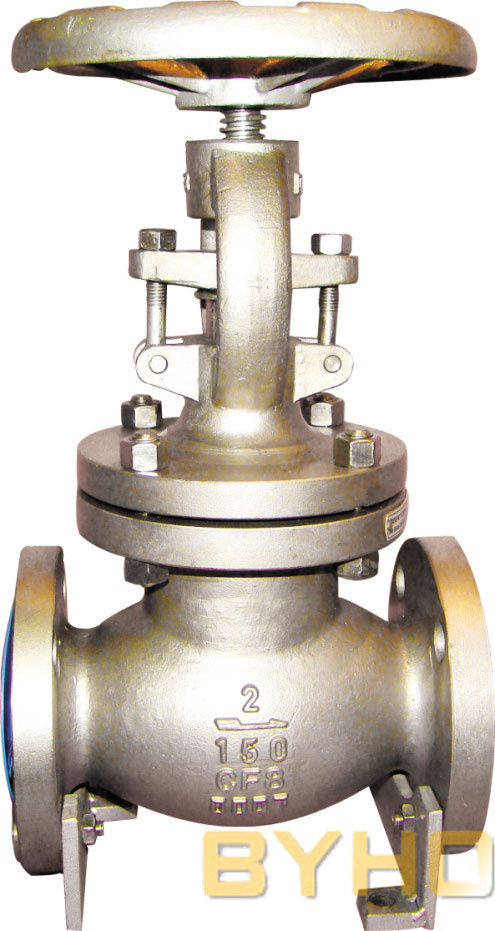

BS1873 Stainless Steel Flanged Globe Valve

Name: BS1873 Stainless Steel Flanged Globe Valve
Brand: Valve Industry
SKU: 679733101
Availability: InStock
Rating: 4.6 (49 reviews)

Price:	US $ 85-3650/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Zhejiang BYHO Valve Co., Ltd.

Showroom Product Company Profile

CLASS 150~1500 CAST STEEL GLOBE VALVE

OS&Y,Rising stem,Plug Disc
Bolted Bonnet,Threaded or welded seat ring
ASTM A216 WCB,A217 WC6,A351 CF8,A351 CF8M,
A351 CF3,A351 CF3M,A351 CN7M

Standards compliance

Design and Manufacture: ANSI B16.34,BS1873
Face tu face(end tu end): ANSI B16.10
Flanged connection: to ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598

A.Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
B.Grub screw: Secures yoke nut in the bonnet
C.Grease nipple: Supplies lubricant to the mating parts

Materials
NO.	Part name	Material
18	Grub screw	Carbon steel
17	Hand wheel nut	Carbon steel
16	Hand wheel	Carbon steel
15	Eye bolt and nut	A 193 B7/A194 4~A193 B8/A194 8
14	Pin	Carbon steel/SS
13	Stem nut	A 439-D2/cu-alloy
12	Gland flange	Carbon steel
11	Gland bush	Stain steel
10	Back seat	Stain steel
09	Pisc nut	CS+SS/SS/SS+STL
08	Stem	Stain steel
07	Seat ring	See body mterial
06	Disc	See body mterial

NO.	Part name	WCB	LCB	WC6	WC9
05	Stud and nut	A193 Gr B7/A194 Gr 2H	A320 Gr L7/A194 Gr 4	A193 Gr B16/A194 Gr 4/7	A193 Gr B16/A194 Gr 4/7
04	Gland Packing	Graphite	Graphite	Graphite	Graphite
03	Gasket	Spiral wound/Soft lron	Spiral wound/Soft lron	Spiral wound/SS304	Spiral wound/SS304
02	Bonnet	A216 Gr WCB	A352 Gr LCB	A271 Gr WC6	A271 Gr WC9
01	Body	A216 Gr WCB	A352 Gr LCB	A271 Gr WC6	A271 Gr WC9

NO.	Part name	C5	C12	CF8	CF8M
05	Stud and nut	A193 Gr B16/A194 Gr 4/7	A193 Gr B16/A194 Gr 4/7	A193 Gr B16/A194 Gr 4/7	A193 Gr B7/A194 Gr 2H
04	Gland Packing	Graphite	Graphite	Graphite	Graphite
03	Gasket	Spiral wound/Soft lron	Spiral wound/Soft lron	Spiral wound/SS304	Spiral wound/SS316
02	Bonnet	A217 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M
01	Body	A217 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M

CLASS 150~1500 CAST STEEL GLOBE VALVE

Dimensions
Class 150
Size	inch	2	2-1/2	3	4	5	6	8	10	12	14	16	18
L,L1-RF,BW	mm	203	216	241	292	356	406	495	622	698	787	914	978
L2-RTJ	mm	216	229	254	305	368	419	508	635	711	800	927	991
H	mm	330	390	410	475	540	585	725	825	940	1200	1270	1300
K	mm	200	250	250	300	350	350	450	500	600	600	650	650
WT	Kg	23	29	40	59	95	115	178	268	385	540	760	1050

Dimensions
Class 300
Size	inch	2	2-1/2	3	4	5	6	8	10	12	14	16
L,L1-RF,BW	mm	267	292	318	356	400	444	559	622	711	838	863
L2-RTJ	mm	283	308	333	371	416	460	575	638	727	854	879
H	mm	350	425	485	520	565	655	825	920	1155	1250	1295
K	mm	200	250	300	300	350	350	500	600	700	700	450 ?ont
WT	Kg	30	45	60	83	135	162	265	375	525	765	1100

Dimensions
Class 600
Size	inch	2	2-1/2	3	4	5	6	8	10
L,L1-RF,BW	mm	292	330	356	432	508	559	660	787
L2-RTJ	mm	295	333	359	435	511	562	664	791
H	mm	420	490	550	590	620	700	950	1140
K	mm	250	300	300	350	500	500	600	600
WT	Kg	39	61	76	122	210	245	447	692

Dimensions
Class 900
Size	inch	2	2-1/2	3	4	5	6	8
L,L1-RF,BW	mm	368	419	381	457	559	610	737
L2-RTJ	mm	371	422	384	460	562	613	740
H	mm	495	540	600	655	670	780	1050
K	mm	300	350	350	500	500	350 ?ont>	350 ?ont>
WT	Kg	96	79	117	178	305	355	730

Dimensions
Class 1500
Size	inch	2	2-1/2	3	4	6
L,L1-RF,BW	mm	368	419	470	546	705
L2-RTJ	mm	371	422	473	549	711
H	mm	550	580	625	750	925
K	mm	300	350	400	450	600
WT	Kg	116	125	145	210	475

Gear operation suggested.Dimensions on request.

Prod Model:	J41Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design & Manufacture:	BS1873, Asme B16.34
Face To Face:	Asme B16.10
Flange End:	ANSI B16.5
Test & Inspect:	API 598
Structure:	Through Way Globe Valve
Sealing Form:	Gland Packings Globe Valve
Stem Thread Position:	Outside Screw Stem Globe Valve
Application:	Bellows Globe Valve
Standard:	ANSI

Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.

Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.

Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.

Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
