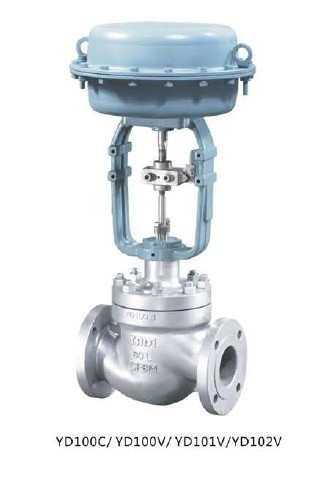

YD100C Series cage guided globe valve
This Series cage guided globe valve has cage-guide structure, designed with pressure balanced type trim.
1. It has features with high flow capacity, dynamic stability, low operation force.
2. So it is well-suited to handle a wide variety of process applications.
3. Hardened trim is provided used for high pressure drop application.
Specifications of YD100C Series cage guided globe valve:
1)Body type: YD100C
2)Body size: 1"~8" (25A~500A)
3)Body rating: ANSI Class150~2500, PN1.0 MPa ~PN42 MPa
4)Fluid temp.: -196~+538 Degree (565 Degree can be up to 565 Degree under high temperature)
5)Connections: (RF\MFM\RJ), (50A SW, 80ABW)
Flange(RF\MFM\RJ), Weld ends( SW: 2" and under, BW: 3" and over)
6)Body materials: WCB(A105)\WC6(15CrMo)\CF8(304SS)\CF8M(316SS)\Monel\HC\HB, etc.
7)Trim materials: 304SS\316SS\17-4pH, etc.
8)Rangeability: 50: 1
9)Flow characteristics: \\ Equal percentage\Linear\ On-off
10)Leakage: Metal seat: Rated CV× 0.01%, ANSI Class IV, Vor MSS-SP-61;
Soft seat: ANSI Class VI
11)Actuator: DY00LAPneumatic Diaphragm Actuator
PY00LAPneumatic Cylinder Actuator
EK00LA\EQ00LASolid State Electronic Actuator
If you are interested in YD100C Series cage guided globe valve, please don't hesitate to contact us!
We provide carbon steel globe valve, stainless steel globe valve, alloy steel globe valve, forged steel globe valve, pressure seal globe valve and bellows sealed globe valve.
Our company is a professional company, which engaged in the area of control valves, especially for those non-standard products is our superiority. For example,
1. YD900E rotary disk on-off valve used for slurry fluid; Abrasive; Corrosive and so on.
2. YD710H desuper-heater for steam system
3. YD100H super high temperature JUG valve for over 1200 centigrade sulfuric acid applications
4. YD300S light-duty butterfly valve for sulfuric acid applications
5. YD400G parallel gate valve for steam system and etc.
