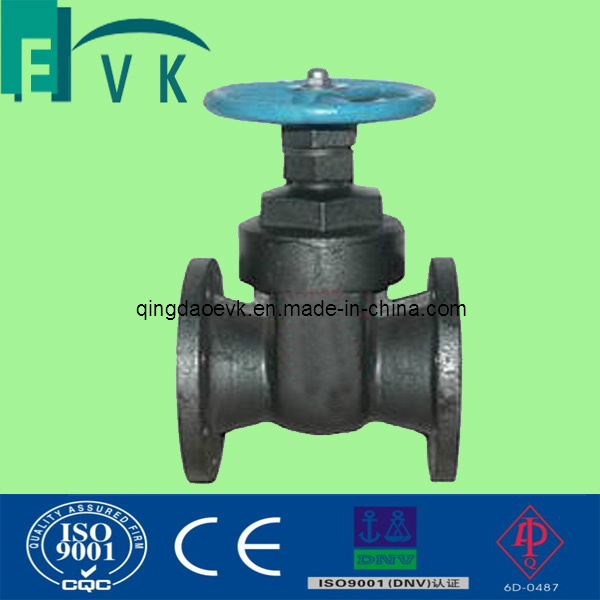

Carbon Steel API gate valve
Product Descriptions:
1) Sizes: 2-24
2) Pressure: 150LB, 300LB, 600LB
3) Valve Body: ASTM A216 WCB/CF8/CF8M
4) Disc: ASTM A216 WCB/CF8/CF8M
5) Bonnet: ASTM A216 WCB/CF8/CF8M
6) Seal: Stainless Steel D507Mo, D577
7) Stem: 1Cr13, F6a
8) Yoke nut: ZCuAL10Fe3, ASTM A439 D-2
9) Hand wheel: Malleable Cast Iron, Ductile Iron, and WCB
10) Standards: GB, ANSI API, Russia Standard
11) Type: Rising Stem Gate Valve
12) Connection type: Flange end
13) Control method: Manual
14) Body experiment: 2.94MPa/7.67MPa/15.3MPa
15) High-pressure fluid seal: 2.16MPa/5.62MPa/11.23MPa
16) Low pressure aero seal seals: 0.6MPa
17) Suitable medium: Water, Vapor, Oil
|
Main Product |
|
Pipe Fitting: |
Butt welding, Forged steel ,Ductile iron grooved
Elbow, Reducer, Cap, Union, Outlet,Coupling,Tee, Cross |
|
Valve: |
Gate valve,
Wafer/Lug/Double flange butterfly valve,
Wafer/Swing check valve,
DIN/MSS Globe valve,
Y-Strainer |
|
Flange: |
Flat face, Blind, Weld neck, Slip on, etc |
|
Material |
Crabon steel, Stainless steel, Alloy steel, 304, 304L ,316, 316L |
|
Connection way |
Weld, Thread, Socket, Flanged, etc |
|
Packing |
Wooden cases or Wooden pallet, Steel Cage |
|
Delivery time |
With 30 days or as requirement |
|
Acceptable term of payment |
L/C T/T(in advance) |
|
Inspection |
Factory in-house or Third Party inspection available upon requests. |
|
Certificate |
ISO9001: 2000, CE |
|
Special design available as the requirement of the client |
EVK FITTING GROUP Co., Ltd (China) is a leading group, engaged in manufacturing valve, pipe fitting and flange, affilicating Qingdao EVK Industrial Co., Ltd, Yantai EVK Valve Manufacturing Co., Ltd, Hebei EVK Pipe Fitting Co., Ltd and Tianjin EVK Flange Fabrication Co., Ltd. EVK Group has more than 2000 staffs and covers around 150000 square meters totally.
Main production includes:
Valve: Cast iron/Ductile iron/Cast steel/Forged steel Valve( DIN3352 Resilient seated F4/F5 Gate valve, DIN3352 F4/F5 metal seated Gate valve, BS5163/BS5150/AWWA C509 Gate valve, API600 Gate valve, Wafer/Lug/Double flange butterfly valve, DIN/MSS Globe valve, Wafer/swing check valve, Y-strainer, JIS marine valve)
Pipe fitting: Carbon steel butt welding pipe fitting(Elbow, Straight and reducing tee, concentric and eccentric reducer, cap), Forged steel pipe fitting(Elbow, Tee, Reducer), Malleable iron pipe fitting.
Flange: Carbon steel and stainless steel forged flange(Flat flange, welding neck flange, slip on flange, blind flange).
Autoparts: Brake shoes, Brake pads, Brake discs, Brake drums.
We exported to more than 25 countries in the world, our main customers have CRANE, WALWORTH, OARI, etc. Our company was awarded with ISO9001 certificate and CE for our valve, pipe fitting and flange products.
Our blief is "Do friend first, Do business second", we welcome all friends from all over the world to do business together!
