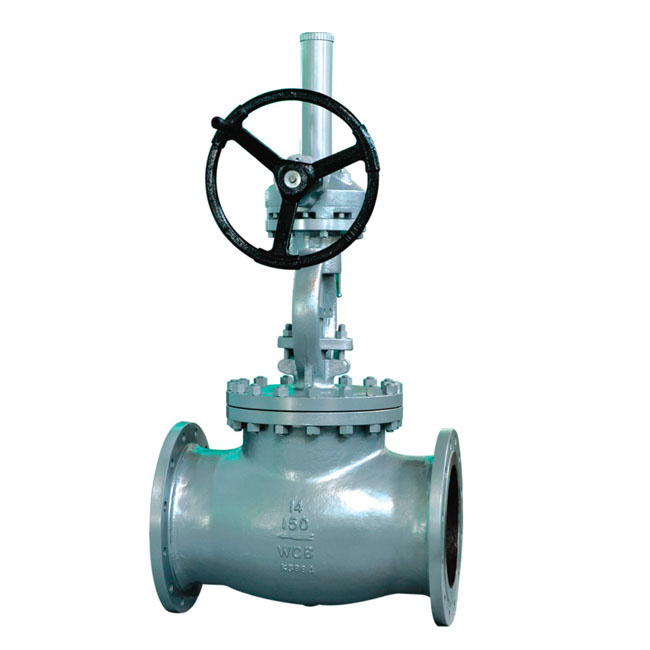

OS&Y, Rising stem, Plug Disc
Bolted Bonnet, Threaded or welded seat ring
ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: ANSI B16.34, BS1873
Face tu face(end tu end): ANSI B16.10
Flanged connection: To ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598
A. Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
B. Grub screw: Secures yoke nut in the bonnet
C. Grease nipple: Supplies lubricant to the mating parts
Part Name | CF8 SERIES | CF3 SERIES | CF8M SERIES | CF3M SERIES | WCB SERIES |
BODY | CF8 | CF3 | CF8M | CF3M | WCB |
DISC | F304 | F304L | F316 | F316L | 1CR13 |
Stem | F304 | F304L | F316 | F316L | 1Cr13 |
PACKING | PRFE | PTFE | PTFE | PTFE | GRAPHITE |
GASKET | PTEF+304 | PTEF+304L | PTEF+316 | PTEF +316L | GRAPHITE 304 |
GLAND | CF8 | CF3 | CF8M | CF3M | WCB |
BOLT | A193-B8 | A193-B8 | A193-B8M | A193-B8M | 35CrMoA |
NUT | A194-8M | A194-8M | A194-8M | A194-8M | 45 |
