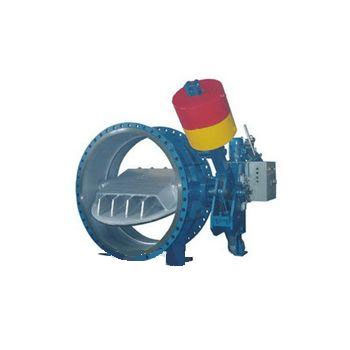

1. Hydraulic Actuator Butterfly Valve Material:
* ASTM A216 WCB
A351 CF8, CF8M, CF3, CF3M, CF3MN, CN7M
A890 4A
A352 LCB
2. Hydraulic Actuator Butterfly Valve Pressure rating and size:
* Pressure rating: CLASS 150/300/600, PN6/10/16/25, JIS 10K/20K
* Size: 2" to 80", DN50 to DN2,000
3. Hydraulic Actuator Butterfly Valve Features:
* Design -API 609/ BS 5155/ DIN 3202 K1/ EN 558/ AWWA C504/ ISO 5752/ ISO 14313/MSS SP 72
* Face to Face & End to End - ASME B16.10/ ISO5752
* Flanged Ends - ASME B16.5/ ASME B16.47 B/ ISO7005-1/ API 605/ BS 3293/ DIN 2501
* Test - API 598/ JIS 2003
* Seat - Metal to Metal ( F304/ F316 )
* Double eccentric or triple eccentric type
4. Hydraulic Actuator Butterfly Valve Applications:
* Chemical, Petrochemical, Oil & Gas, Power Plant, General Industry etc.
5. Hydraulic Actuator Butterfly Valve Temperature rating:
* -45°C - + 650 °C or above
6. Hydraulic Actuator Butterfly Valve Operators and option:
* Pneumatic / Electric/ Worm Gear/ Locking Device/ Handwheel etc.
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.
We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
