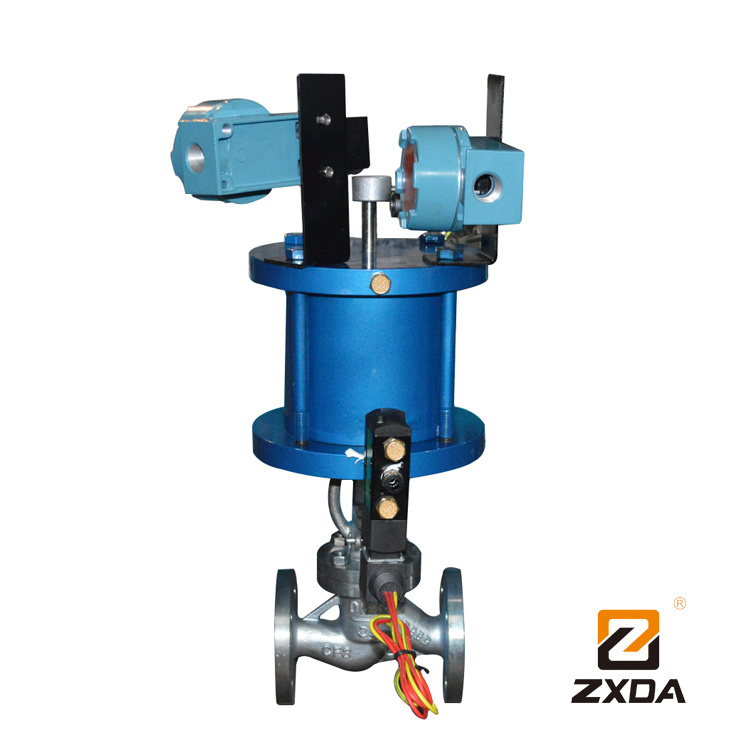

Carbon Steel Pneumatic Flange Globe Valve

Carbon Steel Pneumatic Flange Globe Valve
Price: US $ 200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 3/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Pneumatic cast steel globe valve 1.6mpa

Features and benefits
   Non-rotating stem with precision Acme threads and burnished finish. Valve suitable for horizontal installation.
   Universal trim. 13Cr stem, 13Cr faced disc, and CoCr alloy faced seats API Trim 8 suitable for service up to 850°F (454°C).
   Seat face CoCr alloy hardfaced, ground, and lapped to a mirror finish. Conical seat machined to 8 RMS.
   Tapered disc.
Body guided disc accurately mates the hardfaced surface of the disc with the surface of the seat, hardfaced with 13Cr, CoCr alloy, SS316, or Monel, ground and lapped with seat.
   Disc in SS 316 hardfaced with CoCr alloy also available. NPS 2-6 (DN 50-150) valves may have solid CA15 (13Cr) discs.
   Body and bonnet. Castings are precision machined. One-piece bonnet for better alignment, fewer parts.
   Stuffing box finish to 63 RMS or better.
   Body and bonnet joint accurately machined. Fully enclosed gasket.
   Gland has two-piece construction for easy alignment.
   Rotating stem nut. Austenitic ductile iron Gr. D-2C, renewable in-line.
   Torque arm reduces wear on packing rings and enables better sealing and reduces torque.
   Impactor handwheels.
Globe and stop check valves require higher closing torques than gate valves with the same seat diameter and pressure class. The most economical mechanism for tight shutoff is the impactor handwheel. Two lugs cast under the wheel strike simultaneous blows and give 3-10 times the closing force of standard handwheels. Impactor handwheels are supplied at manufacturer's option unless specified by customer.

Prod Model: G641H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure: Through Way Globe Valve
Sealing Form: Gland Packings Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Application: Plunger Type Globe Valve
Standard: JIS
Zhejiang zxda valve control Co., Ltd. is a collection of scientific research, design, manufacturing, sales and service as one of the manufacturers. Specialized is engaged in the research and development and production of the pneumatic valve, the main products are: Pneumatic valve, pneumatic ball valve, pneumatic butterfly valve, pneumatic type knife gate valve, pneumatic Angle seat valve, pneumatic valve, pneumatic control valve, pneumatic feeding valve, pneumatic diaphragm valve, pneumatic pipe clamp valve, pneumatic program control valves, pneumatic sanitary valve, pneumatic actuators, valves, fittings, etc. In the field of pneumatic valve has a wealth of production experience and related experience, exquisite production technology, reliable quality, perfect testing means. Product assembly, explosion-proof solenoid valve, back to the device, the valve positioner and other components, widely used in petroleum, chemical industry, light industry, power station, metallurgy, HVAC, medical, fire, and water treatment and other plumbing field. Products can be assembled explosion-proof solenoid valve, back to the device, the valve positioner and other components. Widely used in petroleum chemical industry, metal smelting, light industry, pharmaceutical, boiler equipment, sewage treatment, printing and dyeing machinery and other fields. As pipe distance single and centralized control by computer operation, is the advanced equipment to realize industrial automation.

Company in the production of the actuator at the same time, and many other famous electromagnetic valve and position feedback switch, filter, the locator manufacturers have good relations of cooperation, can provide users with a variety of supporting services.

The company will with "high quality, good faith" for the purpose, to provide you with satisfactory products and perfect service.
