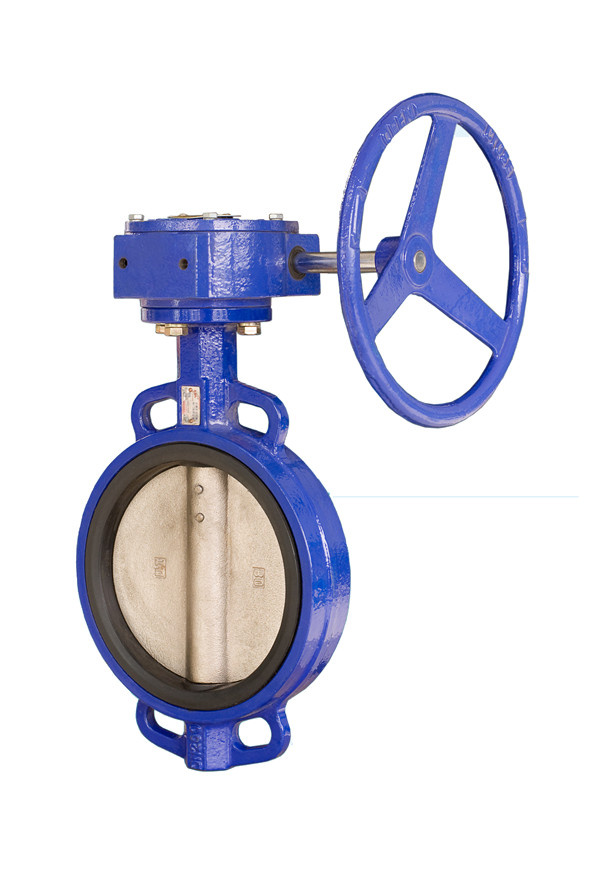

Cast Iron Butterfly Valve Pn16 JIS10k ANSI150

Cast Iron Butterfly Valve Pn16 JIS10k ANSI150
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 20/Piece
Pay Type: L/C,T/T
Contact Supplier
Tianjin Tangfa Watts Valve Sales Co., Ltd.
Showroom Product Company Profile

Specifications
1.DN50-1200(2"~48")
2.PN10/16(150/200PSI)
3.API, ANSI, ASME, DIN, BS,JIS, ISO approved
4.material:CI,DI,WCB,SS,ALB,brass,etc.
Wafer Type Butterfly Valve with Handle, Wormgear, Pneumatic, Electric Driver

Features:
1.Small in size and light in weight. Easy installation and maintenance. It can be mounted wherever needed.
2.Simple and compact construction, quick 90 degree on-off operation.
3.Flow curve tending to straight line. Excellent regulation performance.
4.Long service life. Standing the test of thousands opening/closing operation.
5.Wide selection of materials, applicable for various media.


Standard:

Design standard
Face to face
End flange
Test & inspection

MSS SP-67
API609
EN593

API609
ISO5752 series 20
BS5155

DIN PN10/16/25
ANSI B 16.1
BS4504
ISO PN10/16
JIS B 2212/2213
BS 10 table D
BS 10 table E
API 598



Performance:

PN(MPa)
DN(mm)
Testing Pressure
(MPa)
Applicable Temp. °C

Applicable Medium

Shell
Sealing

1.0/1.6
DN50 ~ DN1000
1.5
1.1
-45~ 150
Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
Alkalis, etc.



Material List:

Part Name
Material

Body		CI/DI/WCB/SS
DiscDI/ALB/WCB/MONEL/CF8/CF8M
StemSS416/SS304/SS316/WCB
SeatEPDM/BUNA/NBR/NR/PTFE/HYPALON/VITON/NEOPRENE
Prod Model: TFW-W1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Dn50-1200
Connection Form: Wafer
Structure: Centre Sealing
Seal Form: Force Sealed
Work Pressure: Low Pressure (',Pn<1.6mpa)
Working Temperature: Medium Temperature (',120??C
Material Of Seal Surface: Soft Sealed
Application: Water Industrial Usage
Tianjin Tangfa Watts Valve Co., Ltd. is one of the biggest supplier in China. We specialize in designing, manufacturing and marketing of various low pressure valves.

Our factory covering 80, 000m2 with the registered capital USD14, 14 million, owns modernized factory buildings, production and testing equipments and strong engineering capability. It passed ISO9001: 2008, CE Certification. Our valves are widley used in most of big water projects of China and overseas.

Our Product:
1. Butterfly valve: Wafer type, Flanged type, Lug type
2. Gate valve: Non rising and rising stem type resilient gate valve, solid wedge gate valve
3. Check valve: Dual plate wafer check valve, Swing check valve.
4. Globe valve, Ball Valve, Y-Strainer, Rubber Expansion Joint and Flanges.

We offer technical expertise and willingness to work with the customer.
