PTFE Lined Butterfly Valve with Pneumatic Actuator
| Price: |
US $ 1-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

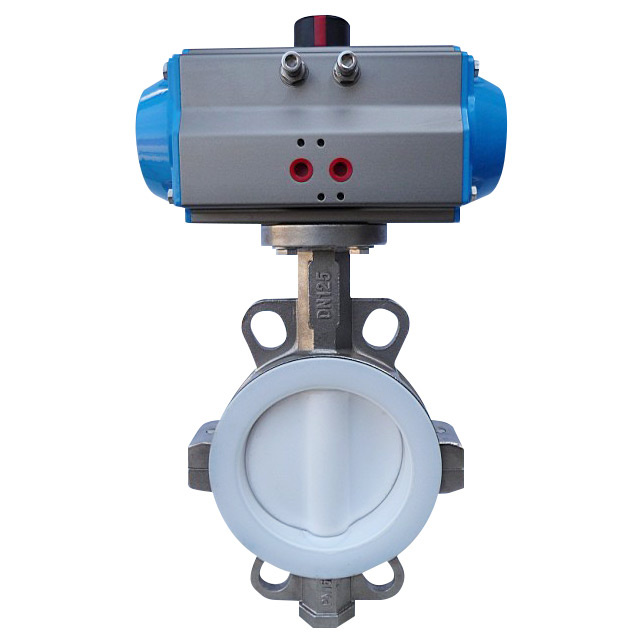

Full PTFE lined Wafer type Butterfly Valve with pneumatic actuator
1. Strong corrosion-resistance
2. Easily operated
3. Longer service life
Size: DN50-DN600
End Flange: ANSI, DIN, BS, ISO
Face to Face: API609, BS5155, DIN3202, ISO5752
Top Flange: ISO 5211
Normal PressurePN1.0/1.6Mpa(150/200PSI)
Body: CI/DI/WCB/CF8/CF8M
Disc: DI/WCB/CF8M/CF8
Stem: SS416/304/316/431
Seat: teflon/PTFE
Suitable Temperature: -45C to 230º C
|
Nominal Pressure |
1.0Mpa |
|
Shell Test Pressure |
1.5Mpa |
|
Seat Test Pressure |
1.1Mpa |
| Prod Model: |
D671F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn50-Dn600 |
| Material: |
Cast Iron, Ductile Iron, Steel |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Connection Form: |
Wafer |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Application: |
Water Industrial Usage |
Tianjin Tangfa Watts Valve Co., Ltd. is one of the biggest supplier in China. We specialize in designing, manufacturing and marketing of various low pressure valves.
Our factory covering 80, 000m2 with the registered capital USD14, 14 million, owns modernized factory buildings, production and testing equipments and strong engineering capability. It passed ISO9001: 2008, CE Certification. Our valves are widley used in most of big water projects of China and overseas.
Our Product:
1. Butterfly valve: Wafer type, Flanged type, Lug type
2. Gate valve: Non rising and rising stem type resilient gate valve, solid wedge gate valve
3. Check valve: Dual plate wafer check valve, Swing check valve.
4. Globe valve, Ball Valve, Y-Strainer, Rubber Expansion Joint and Flanges.
We offer technical expertise and willingness to work with the customer.
