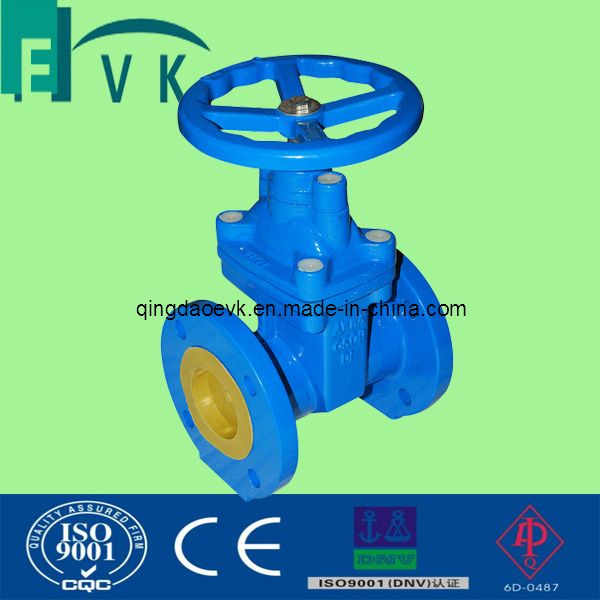

Cast Iron Fixed Stem Resilient Seated Gate Valve
| Price: |
US $ 5-500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
DIN3352 F4 Resilient Seated Gate Valve
1. Specifications:
Size: DN50-DN1200mm
Standard: DIN3352
Face to face dimension: DIN3202, F4 Or EN558-1
Body/Bonnet material: Ductile iron GGG40/GGG50
Handwheel/Wrench nut operation
External and internal epoxy powder coated
2. Certificates:
CE, ISO9001, WRAS
|
NO |
PART |
MATERIAL |
|
1 |
BODY |
GGG40/GGG50 |
|
2 |
WEDGE |
GGG40/GGG50/NBR/EPDM |
|
3 |
STEM NUT |
BRASS/BRONZE/59-1 |
|
4 |
STEM |
2Cr13/SS420/SS304 |
|
5 |
BONNET |
GGG40/GGG50 |
|
6 |
GLAND |
BRASS |
|
7 |
HANDWHEEL |
GGG40/GGG50 |
| Prod Model: |
gate |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body Material: |
Cast Iron or Ductile Iron |
| Size: |
2"-12"/Dn50-Dn600 |
| Working Pressure: |
Pn10/Pn16 |
| Standard Or Nonstandard: |
Standard |
| Media: |
Water |
| Structure: |
Gate |
| Temperature Of Media: |
Medium Temperature |
| Power: |
Manual |
| Face To Face Dimensions: |
DIN3202 |
| Connection Form: |
Flange |
| Material: |
Cast Iron |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Water Industrial Usage |
EVK FITTING GROUP Co., Ltd (China) is a leading group, engaged in manufacturing valve, pipe fitting and flange, affilicating Qingdao EVK Industrial Co., Ltd, Yantai EVK Valve Manufacturing Co., Ltd, Hebei EVK Pipe Fitting Co., Ltd and Tianjin EVK Flange Fabrication Co., Ltd. EVK Group has more than 2000 staffs and covers around 150000 square meters totally.
Main production includes:
Valve: Cast iron/Ductile iron/Cast steel/Forged steel Valve( DIN3352 Resilient seated F4/F5 Gate valve, DIN3352 F4/F5 metal seated Gate valve, BS5163/BS5150/AWWA C509 Gate valve, API600 Gate valve, Wafer/Lug/Double flange butterfly valve, DIN/MSS Globe valve, Wafer/swing check valve, Y-strainer, JIS marine valve)
Pipe fitting: Carbon steel butt welding pipe fitting(Elbow, Straight and reducing tee, concentric and eccentric reducer, cap), Forged steel pipe fitting(Elbow, Tee, Reducer), Malleable iron pipe fitting.
Flange: Carbon steel and stainless steel forged flange(Flat flange, welding neck flange, slip on flange, blind flange).
Autoparts: Brake shoes, Brake pads, Brake discs, Brake drums.
We exported to more than 25 countries in the world, our main customers have CRANE, WALWORTH, OARI, etc. Our company was awarded with ISO9001 certificate and CE for our valve, pipe fitting and flange products.
Our blief is "Do friend first, Do business second", we welcome all friends from all over the world to do business together!
