Specifications

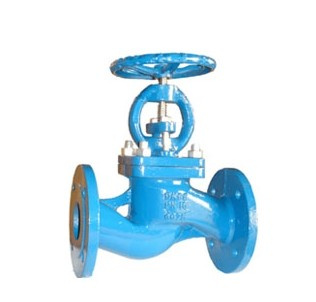

Specifications DIN standard cast steel globe valve, stop valve
Straight type
PN16-25-40-63, Design to EN13709
Face to Face t
1)Technical Specification
Structural Formation: BB-BG-OS & Y
Design and manufacture: DIN3356
Face to face/End to end: DIN3202
Flange dimensions: DIN2543-2545
Test & Inspection: DIN3230
Welded end: DIN3239
2)Major parameter
Size: DN15-DN400
Pressure: 1.6Mpa--4.0Mpa
Body: GS-C25
Disc: GS-C25
Stem: 2Cr13
Type of operation: Manual, conical gear actuator, electric actuator
Structural Type: Angle Type Spiral Rise Type
|
DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
|
D |
95 |
105 |
115 |
140 |
150 |
165 |
185 |
200 |
220 |
250 |
285 |
340 |
405 |
460 |
|
D1 |
65 |
75 |
85 |
100 |
110 |
125 |
145 |
160 |
180 |
210 |
240 |
295 |
355 |
410 |
|
