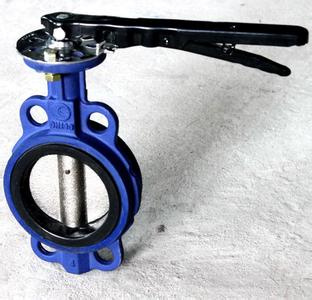

Cast Iron Wafer Type Manual Butterfly Valve
Price: |
US $ 10/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Specifications
Precise casting
WRAS/CE/ISO9001
OEM offered
Design drawing offered
Technical date |
Size | 2"-40"DN50---DN1000 | Design standard | API609 |
Nominal Pressure | PN10/PN16 | Face to face | API609,DIN3202-K,ISO5752 |
Working Temperature | -50°C~135°C | Body Flange Drilling | DIN2501 PN10/PN16,ANSI125/150,BS4504,,JISB2210 10K |
Applicable Medium | Water,steam,oil,acid, salt. etc. | Top Flange | ISO5211 |
| | Test Standard | API598 |
Item | Material | Symbol |
Body | Cast Iron | ASTM A126 CL.B GG25 |
Ductile Iron | ASTM A536 65-45-12 GGG40 |
Carbon steel | ASTM A216 WCB |
Stainless steel | ASTM A351 CF8/CF8M |
Disc | Ductile Iron | ASTM A536 65-45-12 GGG40 |
Carbon steel | ASTM A216 WCB |
Stainless steel | ASTM A351CF8/CF8M |
Bronze | ASTM B148 C954 |
Stem | Stainless steel | ASTM A182 304.316.410 |
Alloy | Monel K500 |
Seat | Elastomer | Working temperature |
EPDM | -15°C~ 140°C |
NBR | -10°C ~80°C |
VITON | -20°C ~150°C |
PTFE | -15°C~205°C |
Prod Model: |
D343X |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Standard Or Nonstandard: |
Standard |
Size: |
Dn50-Dn1000 |
Certificate: |
ISO9001, CE, RoHS |
Delivery Time: |
in 45days |
Warranty: |
18months |
Connection Form: |
Wafer |
Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
Structure: |
Double-Eccentric Sealing |
Seal Form: |
Auto Sealed |
Working Temperature: |
Medium Temperature (',120??C
|
Application: |
Water Industrial Usage |
Material Of Seal Surface: |
Soft Sealed |
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.
We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
