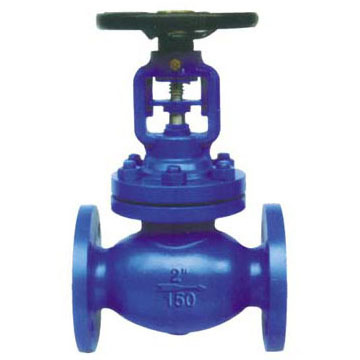

Cast Steel Bellow Sealed Globe Valves-Flanged End
| Price: |
US $ 50-5000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Set |
| Pay Type: |
L/C,T/T,D/P |
Cast Steel Bellow Sealed Globe Valves-flanged endStandard compliance:
1) Design and manufacture: BS1873, ANSI B16.34, DIN3202
2) Test and inspection: API598
3) Face to face dimensions: ANSI B16.10
4) Flanged end: ANSI B16.5
5) Butt-welding end: ANSI B16.25
6) Other standards (DIN, BS, JIS) is also available upon request.
Specifications:
1) Size: 1/2" to 14"
2) Class: 150LB to 900LB
3) Type: Bolted Bonnet, OS&Y, straight/Y type/right angle bellow sealed globe valve
4) Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, DUPLEX SS, MONEL, ALLOY 20, CAST IRON etc
5) Operation: Hand wheelDesign and Manufacture : ANSI B16.10
Design and Manufacture : BS1873
Test and inspection : API598
Face to face dimension : ANSI B16.10
End flange dimension : 2" -14"
Pressure : Class 150 to Class 900
Technical Specification| Nominal class | Shell test | Sealing test | Suitable temp | Suitable media |
| 150 | 3 | 2.2 | <350 o C | Water oil & gas |
| 300 | 7.5 | 5.5 |
| 600 | 25 | 11 |
| 900 | 22.5 | 16.5 |
Standard materials of parts | No. | Part | Material |
| 1 | Body | ASTM A216-WCB |
| ASTM A351-CF8, CF 8M ,CF3, CF 3M |
| 2 | Disc | ASTM A182-Gr.F 6a ASTM A182-F22 |
| ASTM A182-F304,F316,F321,F 304L ,F 316L |
| 3 | Split ring | ASTM A182-Gr.F 6a ASTM A182-F22 |
| ASTM A182-F304,F316,F321,F 304L ,F 316L |
| 4 | Disc bushing | ASTM A182-Gr.F 6a ASTM A182-F22 |
| ASTM A182-F304,F316,F321,F 304L ,F 316L |
| 5 | Stem | ASTM A182-Gr.F 6a ASTM A182-F22 |
| ASTM A182-F304,F316,F321,F 304L ,F 316L |
| 6 | Gasket | Flexible Graphite +stainless steel. PTFE |
| 7 | Bonnet | ASTM A216-WCB |
| ASTM A351-CF8,CF 8M ,CF3,CF 3M |
| 8 | Bellow assemble | ASTM A182-F304,F316,F321,F 204L ,F 316L |
| 9 | Packing | Flexible Graphite. PTFE |
| 10 | Gland | ASTM A216-WCB |
| ASTM A351-CF8,CF 8M ,CF3,CF 3M |
| 11 | Yoke nut | ZQA19-4 |
| 12 | Hand wheel | ASTM A536Gr.60-40-18,A216-2WCB |
| 13 | Guiding piece | 45,WCB, 304,316,304L , 316L |
| 14 | Bolt | ASTM A193-B7,A103-B8,A193-B 8M |
| 15 | Nut | ASTM A194-2H,A194-8,A194 -8M |
Dimension and Weight unit: mm | Class | 150LB |
| Size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
| L | 108 | 117 | 127 | 140 | 165 | 203 | 216 | 241 | 292 | 356 | 406 | 495 | 622 | 698 | 787 |
| H | 241 | 241 | 241 | 280 | 286 | 368 | 387 | 400 | 457 | 520 | 600 | 698 | 762 | 876 | 900 |
| W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 320 | 340 | 400 | 450 | 450 | 450 |
| Wt.(kg) | 4 | 5 | 6 | 10 | 13 | 18 | 30 | 35 | 55 | 75 | 104 | 200 | 300 | 390 | 610 |
| Class | 300LB |
| Size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
| L | 152 | 178 | 203 | 229 | 229 | 267 | 292 | 318 | 356 | 400 | 444 | 559 | 622 | 711 | 762 |
| H | 241 | 241 | 283 | 320 | 322 | 399 | 438 | 450 | 584 | 610 | 660 | 762 | 850 | 1085 | 1187 |
| W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 320 | 340 | 400 | 450 | 450 | 450 |
| Wt.(kg) | 6 | 7 | 10 | 15 | 20 | 25 | 30 | 52 | 88 | 115 | 160 | 259 | 420 | 595 | 876 |
| Class | 600LB |
| Size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
| L | 165 | 190 | 216 | 229 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 | 787 | 838 | 889 |
| H | 240 | 280 | 320 | 320 | 390 | 430 | 480 | 508 | 635 | 750 | 914 | 1016 | 1219 | 1330 | 1560 |
| W | 140 | 140 | 160 | 160 | 180 | 180 | 250 | 250 | 350 | 400 | 450 | 500 | 600 | 720 | 760 |
| Wt.(kg) | 7 | 10 | 16 | 22 | 29 | 35 | 50 | 90 | 150 | 230 | 300 | 510 | 850 | 1120 | 1400 |
| Class | 900LB |
| Size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
| L | 229 | 229 | 254 | 279 | 305 | 368 | 419 | 381 | 457 | 550 | 610 | 737 | 838 | 965 | 1029 |
| H | 280 | 330 | 350 | 430 | 508 | 569 | 430 | 635 | 774 | 860 | 1040 | 1330 | 1560 | 1650 | 1780 |
| W | 160 | 160 | 180 | 180 | 250 | 250 | 320 | 350 | 450 | 550 | 600 | 720 | 760 | 820 | 800 |
| Wt.(kg) | 10 | 16 | 23 | 37 | 49 | 65 | 75 | 120 | 200 | 350 | 410 | 790 | 1300 | 1500 | 1800 |
All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B.Mill Test Certificate for all our supplied products.
Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, bolts&nuts&gaskets, steel plates, tubing and casing, line pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
| Prod Model: |
CS BELLOW SEALED GLOBE VALVE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2" to 14" |
| Pressure: |
150lb to 900lb |
| Sealing: |
Bellow Sealed |
| Body Material: |
Cast Carbon Steel,Stainless Steel,Alloy Steel |
| Structure: |
Through Way Globe Valve |
| Sealing Form: |
Bellows Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Application: |
Bellows Globe Valve |
| Standard: |
ANSI |
| Material: |
Cast Steel, Carbon Steel,Stainless Steel,Cast Iron |
