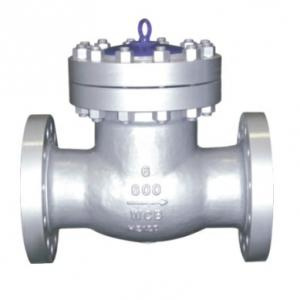

Cast Steel Check Valve
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CIF |
Min Order: |
5/Piece |
Pay Type: |
T/T,Money Gram,Western Union |
Material of parts
Body: A216-WCB
Bonnet: A216-WCB
Disc: WCB-HF
Hinge: A216-WCB
Seat Ring: A105+HF
Hinge pin: A276-420
Bonnet gasket: steel ring
Adapter ring: Carbon steel
Retainer: Carbon steel
Bonnet clamp: Carbon steel
Bonnet stud: A193-B7
Bonnet stud nut: A194-2H
Eyebolt: Carbon steel
Applicable standards
Steel check valve: API 6D; BS 1868; ISO 14313
Face to face: ASME B16.10
End flanges: ASME B16.5
Butt welding ends: ASME B16.25
Inspection and test: API598/API6D
Design description
PSB,Pressure seal cover
Swing(reverse rotary valve flap)
Non-penetrating valve flap shaft
Horizontal or vertical type
Flanged or welded connections
Our factory, Gao Dong Valve Co., Ltd is located in Oubei Town Of Wenzhou City, Zhejiang Province, which is known as the homeland of China pump and Valves. Our company is a professional valve manufacturer, specialized in design, research, manufacturing and distribution. Our company has passed the certificates of ISO 9001, ISO 14001, ISO 18001 international quality management system smoothly, and already got the certificate of API6D, CE and TS. The main products include: Gate Valve, Globe Valve, Check Valve, Ball Valve, Low Temperature Valve, Bellows Valve and Marine Valve. Company even manufactures forged steel valve, cast steel American standard valve, flat gate valve, stainless steel valve, etc.
Prod Model: |
BS1868 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
50mm-400mm: |
2inch-16inch |
Connection Form: |
Flange |
Material: |
Cast Steel |
Structure: |
Swing |
Function: |
Nrvg Silence |
Application: |
Oil, Gas and Chemical Usage |
Our factory, Gao Dong Valve Co., Ltd is located in Oubei Town Of Wenzhou City, Zhejiang Province, which is known as the homeland of China pump and Valves.
Our company is a professional valve manufacturer, specialized in design, research, manufacturing and distribution.
Our company has passed the certificates of ISO 9001, ISO 14001, ISO 18001 international quality management system smoothly, and already got the certificate of API6D, CE and TS.
The main products include: Gate Valve, Globe Valve, Check Valve, Ball Valve, Low Temperature Valve, Bellows Valve and Marine Valve.
Company even manufactures forged steel valve, cast steel American standard valve, flat gate valve, stainless steel valve, butterfly valve, etc.
Better than others in quality, prices and manufacturing time required, because it got its own staff of over 400, including senior management person, senior engineers and engineers working with technicians, not like others, which hire workers and their staff for time being when order is placed.
Our company has got reputation of sincere cooperation, high ambition and assurance of quality as having its own staff, not like others.
Inside nominal diameter: DN8~DN1000 (1/4"~40")
Nominal Pressure: PN1.0~PN42.0MPa (150LB~2500LB).
The material of main body: A105N, LF2, F5, F11, F22, F304, F304L, F316, F316L, WCB, WC6, WC9, CF8, CF8M, CF3 and CF3M etc.
The design standard: API602, ANSI B16.34, API6D, API600, API603, DIN, JIS, GB, HG, and BS etc.
Meanwhile, we can also accept and manufacture as per customer's requirement.
