PRODUCTION:

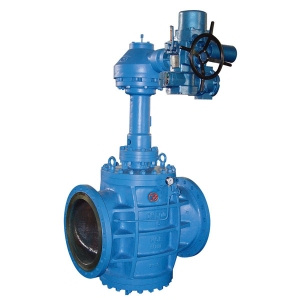

The Eccentric Plug Valve has a straight ºC through flow pattern resulting in low head loss. The design ensures that solid particles are easily passed through the valve without clogging. The eccentric plug design ensures that closing and opening torque is relatively low as the plug easily lifts off the seat. The welded in stainless steel seat and fully encapsulated plug provides excellent corrosion and erosion protection. Because of its linear flow characteristics this valve is often used for throttling purposes, even on abrasive slurries.
FEATURES:
1. Ideal for water, sewage, slurries.
2. Eccentric design: reduces friction between plug and seat, thereby reducing operating torque.
3. Degree of closing tightness(and torque)can be adjusted to suit the media pressure.
4. Rectangular plug area provides excellent throttling performance. Particles are easily passed through the valve without leaving deposites, especially when the shaft is installed in the horizontal position.
5. Welded in stainless steel seat provides long life.
6. Different rubber coatings for the plug are available EPDM, NBR.
7. FBE coating is to 300 micron and toxic free for potable water applications.
TECHNICAL SPECIFICATION:
Design: ANSI/AWWA C-517
Flange: ANSI B 16.1 Class 125, ANSI B 16.2 Class 250, BS4504, DIN 2532/2533
Test: ANSI/AWWA C-517
International Standard: ISO2084, JIS B 0203
Mechanical jointed end: AWWA/ANSI C513/A21.53-00
Kaiweixi (KVC) specializes in the development, research, manufacture, and sales of valves. Established in 2003 with a registered capital USD7, 000, 000, Kaiweixicovers an area of 104, 000 square meters and has 360 employees, with 51 advanced technicians and 11 senior engineers. Our products covering plug valves, ball valves, check valves, globe valves, gate valves and hydraulic control valves conforming to ANSI/API, DIN, BS, JIS, EN and GB standards have been welcomed by clients in China and abroad.
