Cast Steel Fixed Ball Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |

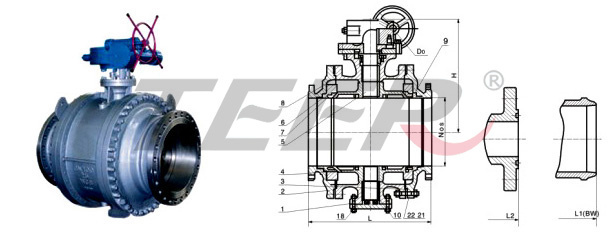

CLASS 150~1500 CAST STEEL FIXED BALL VALVE
Bolted cover, Two-piece or three-piece Body, fixed Ball
Full or Reduced bore, Blowout Proof Stem
Fire safe and Anti static
Dual seat with injection and drain & outlet
ASTM A216 WCB, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: API 6D
Face to face(end to end): API 6D
Flanged connection: 2~~24~to ANSI B16.5
Fire-safe: API 607, API 6FA
Butt welded end: ANSI B16.25
Test and inspection: API 6D
| Prod Model: |
CLASS 150~1500 CAST STEEL FIXED BALL VALVE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Industrial Usage |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
Teer Valve Co., Ltd, a specialized export-oriented valve manufacturer, is located in Oubei, Wenzhou, the home town of pump & valve in China. Established in 2001 with a registration capital of 38, 800, 000.00 RMB, Teer valve covers a total construction area of 48800 m2 with three factories, that is one Ball, Gate, Globe & Check valve factory, one API 602 forged valve factory and one share holding ball factory.
Integrating R&D, manufacture, sales and after-sales service as a whole, Teer' mainly produce Ball valves, Gate valves, Globe valves, Check valves, Butterfly valves and Plug valves with diameter, working pressure and temperature range up to DN1500(60"), PN42Mpa (Class2500) and -196° To 650° Respectively, employing materials from conventional carbon steel, stainless steel, alloy steel, to alloy, such as WCB, A105, WCC, LCB, LCC, LF2, WC1, WC5, WC6, WC9, C5, C12, F11, LF2, F22, 304, 316, 304L, 316L, CF8, CF8M, CF3, CF8C, CN7M, CF3M, Inconel and Monel, etc.
Teer possesses advanced machining and manufacturing facilities, such as CNC lathe, CNC miller, CNC driller, heat treatment furnace, plasma spray welding, painting & drying line, ultrasonic cleaner and other common NDT equipments. It has also set up tool, pattern, finished and semi-finished product warehouses.
Capable of adopting many international standards such as Chinese GB, ANSI, API, BS, DIN, JIS to it's product design and manufacturing and due to persistent pursuit and accumulation to quality, Teer's Quality Management System and products have passed ISO9001-2008 Quality System Certification (DNV), ISO14001-2004, OHSAS18001-1999, API 6D & API600 certification of American Petroleum Institute, CE certification of EU (TUV), Manufacture License of Special Equipemnt (TS) of P. R. China. Teer uses tailor-designed ERP system to control it's daily operation, workshop management and QA & QC procedure.
Teer products are widely used in petroleum, gas, chemical and power industries and over 95% of its products are exported to overseas markets, such as Europe, Middle East, Southeast Asia and South America. It has been approved by Oman PDO, Valve Supply Network for National Power System (China), CHEMCHINA as network supplier.
