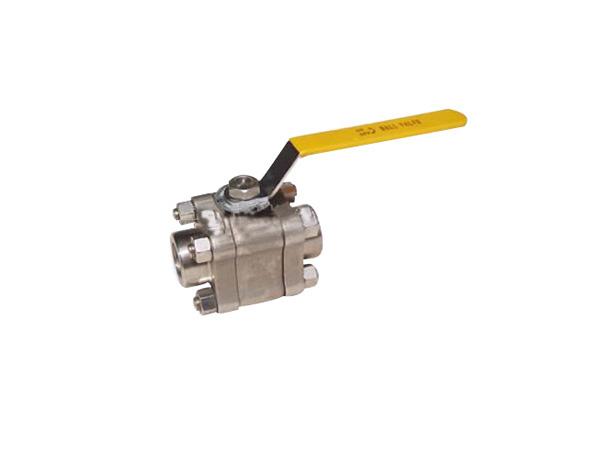

Cast Steel Flange /Thread /weld Ball Valve
Product Description
Applicable standards:
Design: API 6D, ANSI B16.34
Face To Face: API 6D, ASME B16.10
Flange end: ANSI B16.5, ASME B16.47
Fire safe: API 607
Testing and inspection: API598, API6D
Cast steel Trunnon ball valve
Size: 2"-48"
Pressure: 150LB-1500Llb
Body material: WCB, CF8M, CF8, GR4A, LCB, WC6, WC9, LCC, CF3, CF3M, LF2, LF3
Operate: Manual, gear box, electric, neumatic, hydraulic atuators
END: RF, BW,
Design description
Double block and bleed design(DBB)
Double stem sealing. The ball can maintain pressure sealing of pipeline when it is closed or fully opened.
Shorter upper sleeve reducces bearing load and operation torue
Limit device ensures the accurate opening and closing position of the valve
The vall and stem are separated so as to reduce stem load. The stem adopts anti-blow-out design.
The sealing surface is inserted into te metal seat by polymer or plastic
The metalbacked self-lubricating PTFE bearing and PTFE thrust washers
Reduce the opening torque and prolong the service life of the valve. Stem leakage can be prevented through the emergency grease fitting.
Nickel and phosphor treatment to the parts can enhance the anticorrosive performance.
The fireproof design of metal wound gasket compased of stainless steel and graphite can prevent external leakage.
Anti-static design
Trunnion Type
Full bore/Reduced bore
Bolted cover/welded cover
Turn 90 degree opening or close
Detachable seat PTFE/RPTFE
END: RF, BW, SW
Applicable temperature: -196-540
Supply Air: 1Bar to 8Bar
Cast Steel Flange /Thread /weld Ball Valve
Kaiweixi (KVC) specializes in the development, research, manufacture, and sales of valves. Established in 2003 with a registered capital USD7, 000, 000, Kaiweixicovers an area of 104, 000 square meters and has 360 employees, with 51 advanced technicians and 11 senior engineers. Our products covering plug valves, ball valves, check valves, globe valves, gate valves and hydraulic control valves conforming to ANSI/API, DIN, BS, JIS, EN and GB standards have been welcomed by clients in China and abroad.
