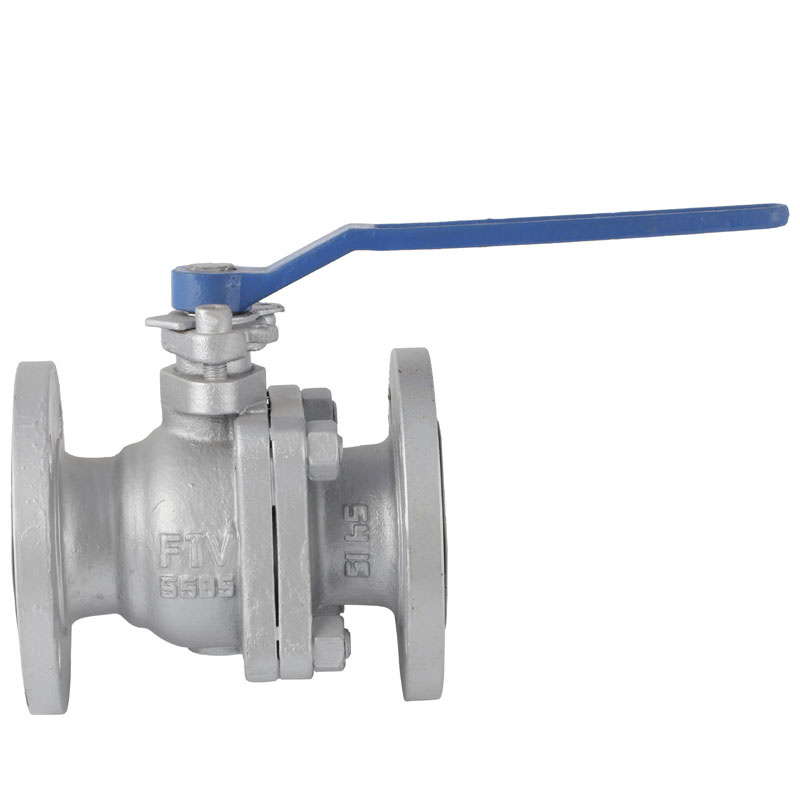

Cast Steel Flanged End 2PC Floating Ball Valve
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Set |
| Pay Type: |
L/C,T/T,D/P |
Cast steel floating 2PC FLANGED Ball ValvesStandard compliance:
1) Design and manufacture: API6D, API608, BS5351, ANSI B16.34
2) Test and inspection: API6D, API598
3) Face to face dimensions: ANSI B16.10
4) Flanged end: ANSI B16.5, B16.47 SERIES A & SERIES B
5) Butt-welding end: ANSI B16.25
6) Fire safe: API607, API6FA
7) Other standards (DIN, BS, JIS) is also available upon request.
Specifications:
1) Size: 1/2" to 12"(floating ball), 2" to 48"(trunnion mounted)
2) Class: 150LB to 1500LB
3) Type: Floating ball and trunnion mounted, full bore or reduced bore, soft seated or metal seated, top entry or side entry, one-piece/two-piece/three-piece, anti-blow out stem, antistatic design
4) Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, LF2, A105, F304, F316, F304L, F316L, F11, F22, DUPLEX SS, MONEL, ALLOY 20, CAST IRON etc
5) Operation: Lever, gear
Cast Steel Ball Valves - Floating Ball Type Class 150 / 300 / 600
2-PC, FB or RB, Blowout-proof stem, Fire-safe, Anti-static.
Design and manufacture:
API 6D, API 608
ANSI B16.34 or BS5351
Test and inspection: API6D, API 598.
Face to face dimensions: ANSI B16.10
End flange dimensions: ANSI B16.5
Butt-welding ends: ANSI B16.25
Fire safe: API607, API6FA
Size: 1/2" - 12"
Material: WCB, LCB,CF8, CF8M,
CF3 and CF3M etc.
Materials of body/bonnet and trim| Body/bonnet | WCB, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF8M, CF3 and CF3M etc. |
| Ball | SS304/SS316/S304L/SS316L |
| Seat | PTFE, NYLON, METAL TO METAL |
Type of operation: hand wheel, gear, electric or pneumatic actuator etc.
Standard materials of parts| No. | Parts | Materials |
| 1 | R-Body | ASTM A216 WCB |
| 2 | Bonnet bolt | ASTM A193 B7 |
| 3 | Bonnet nut | ASTM A194 2H |
| 4 | Gasket | PTFE |
| 5 | L-body | ASTM A216 WCB |
| 6 | Ball | SS304 |
| 7 | Seat ring | PTFE |
| 8 | Stem | ASTM A182 F6 |
| 9 | Stem seat | PTFE |
| 10 | Stem packing | PTFE |
| 11 | Gland flange | ASTM A216 WCB |
| 12 | Lever | Cast Steel |
| 13 | Small ball | SS304 |
| 14 | Small spring | SS304 |
Dimensions (in mm & inch) and weight
Class 150| DN | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 350 |
| NPS | 1/2 | 3/4 | 1 | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| L(RF) | 108 | 117 | 127 | 165 | 178 | 191 | 203 | 229 | 394 | 457 | 533 | 610 |
| L1(BW) | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 |
| L2(RTJ) | 119 | 129.7 | 139.7 | 178 | 191 | 203 | 216 | 241 | 406 | 470 | 546 | 622 |
| H | 59 | 63 | 75 | 95 | 153 | 165 | 195 | 213 | 272 | 342 | 495 | 622 |
| Do (W) | 130 | 130 | 160 | 230 | 400 | 400 | 600 | 850 | 1100 | 1500 | *350 | *350 |
| RF (Kgs) | 2.3 | 3 | 4.5 | 7 | 15 | 20 | 25 | 40 | 97 | 160 | 240 | 390 |
| BW (Kgs) | 2 | 2.5 | 3.8 | 5.8 | 12 | 17 | 21 | 36 | 92.8 | 154 | 227 | 365 |
Class 300| DN | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 |
| NPS | 1/2 | 3/4 | 1 | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 6 | 8 |
| L(RF) | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 403 | 502 |
| L1(BW) | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 |
| L2(RTJ) | 151 | 164.7 | 177.7 | 202.7 | 232 | 257 | 298 | 321 | 419 | 518 |
| H | 59 | 63 | 75 | 107 | 153 | 165 | 195 | 213 | 272 | 342 |
| Do (W) | 130 | 130 | 160 | 230 | 400 | 400 | 600 | 850 | 1100 | 1500 |
| RF (Kgs) | 2.5 | 3.5 | 5.5 | 10.5 | 20 | 25 | 31 | 52 | 118 | 200 |
| BW (Kgs) | 2.1 | 3 | 4.8 | 8.7 | 17 | 22 | 28 | 48 | 105 | 185 |
Class 600| DN | 15 | 20 | 25 | 40 | 50 | 65 | 80 |
| NPS | 1/2 | 3/4 | 1 | 1.1/2 | 2 | 2.1/2 | 3 |
| L(RF) | 165 | 190 | 216 | 241 | 292 | 330 | 356 |
| L1(BW) | 165 | 190 | 216 | 241 | 292 | 330 | 356 |
| L2(RTJ) | 163.4 | 190 | 216 | 241 | 295 | 333 | 359 |
| H | 59 | 63 | 75 | 107 | 153 | 165 | 195 |
| Do(W) | 130 | 160 | 160 | 230 | 600 | 850 | 1250 |
| RF (Kgs) | 7.5 | 10.5 | 14.5 | 18.5 | 38 | 56 | 66 |
| BW (Kgs) | 6 | 8.7 | 11 | 14.7 | 31 | 49 | 58 |
All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B.Mill Test Certificate for all our supplied products.
Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, bolts&nuts&gaskets, steel plates, tubing and casing, line pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
| Prod Model: |
CS FE 2PC FL BV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2" to 12" |
| Ball Type: |
Floating Ball |
| Port Type: |
Reduce Bore or Full Bore |
| Body Material: |
Carbon Steel,Stainless Steel and Alloy Steel |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Water Industrial Usage |
| Function: |
on-off |
| Material: |
Cast Steel |
