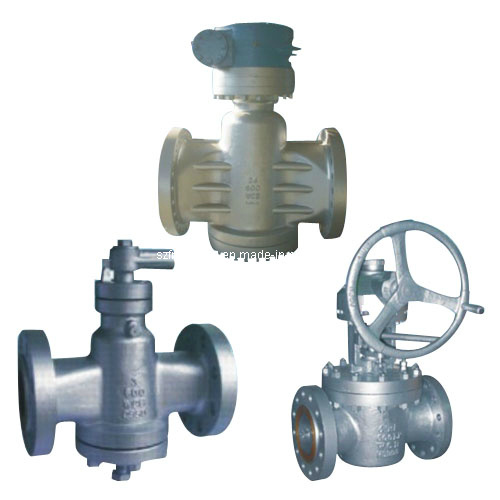

Cast Steel Flanged End Plug Valves
| Price: |
US $ 100-5000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Set |
| Pay Type: |
L/C,T/T,D/P |
Cast Steel flanged end Plug ValvesStandard compliance:
1) Design and manufacture: API6D, ANSI B16.34, API599
2) Test and inspection: API598, API6D
3) Face to face dimensions: ANSI B16.10
4) Flanged end: ANSI B16.5, B16.47 SERIES A & SERIES B
5) Butt-welding end: ANSI B16.25
6) Socket weld end: ANSI B16.11
7) Screwed end: ANSI B1.20.1
Specifications:
1) Size: 1/2" to 36"
2) Class: 150LB to 2500LB
3) Type: Lubricated taper plug valve, inverted pressure balance lubricated plug valve(venturi pattern, regular pattern), sleeve type soft sealing plug valve
4) Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, ALLOY 20, CAST IRON etc
5) Operation: Lever, gearTop entry type, Self-lubricated Description: Design and manufacture: ANSI B16.34, API 6D, API 598, API 6A Face to face dimensions: ANSI B16.10, API 6A End flange dimensions: ANSI B16.5, API 6A Butt-welding ends: ANSI B16.25 Threaded ends: ANSI B2.1, API 5B Socket welded ends: ANSI B16.11 Pressure test: API 598, API6D Fire safe test: API607, API6FA, BS6755, ISO 10497 Corrosion resisting: NACE-MR-0175 Size: 1/2" - 18"Materials of body/bonnet and trim| Body/bonnet/plug | WCB, LCB, LCC, , CF8, CF8M, CF3 and CF3M etc. |
| Trim (Disc/body seat) | PTFE, 13Cr |
Standard materials of parts| No. | Parts | Materials |
| 1 | Body | ASTM A216 WCB |
| 2 | Sleeve | PTFE |
| 3 | Plug | ASTM A216 WCB |
| 4 | Plate | PTFE |
| 5 | Adjusting plate | ASTM A216 WCB |
| 6 | Cover | ASTM A216 WCB |
| 7 | Adjusting bolt | ASTM A193 B7 |
| 8 | Nut | ASTM A194 2H |
| 5 | Bolt | ASTM A193 B7 |
| 6 | Support |
|
| 7 | Worm Gear |
|
All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B.Mill Test Certificate for all our supplied products.
Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, bolts&nuts&gaskets, steel plates, tubing and casing, line pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
| Prod Model: |
CS FE PLUG VALVE |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Size: |
1/2" to 36" |
| Pressure: |
150lb to 2500lb |
| Material: |
Carbon Steel,Alloy Steel,Stainless Steel |
| Flanged End: |
ANSI B16.5 |
Shenzhen Front Valve Co., Ltd. is one of the leading supplier of various industrial valves, fittings, flanges and relative piping accessories in China. We have been working in this line for more than 10 years, exporting our products to all over the world, such as Europe, USA, South America, Africa, Middle-East, Australia etc. Our quality and good reputation are highly valued by our customers.
All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B. Mill Test Certificate for all our supplied products.
Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
We welcome any potential customer to contact us for more information. We hope, with our technical knowledge and professional experience, our company will become one of your best reliable business partners in China.
