Specifications:
Size: 1/2 "-36 "

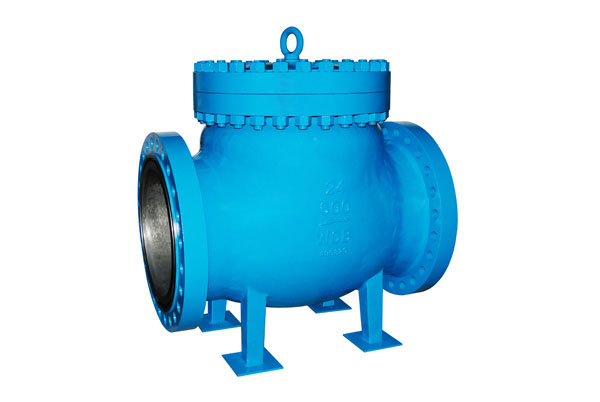

(1) 150LB - 1500LB Check valve
Connection: RF/RTJ Flange, Butt Welded
Pressure Rating: Class 150LB~ Class 1500LB
Material:A105,LF2,F11,F22,F5,F304,F316,F304L,F316L(1/2" -2 ")
WCB,LCB,WC6,WC9,C12,C5,CF8,CF8M,CF3,CF3M,CF8C(2" -36")
Structural Features: Bolted Cover ,Swing Type Disc,
Threaded or Welded Seat Ring
Suitable medium:water, oil, gas....
Design Standard:
Design & Manufacture Std.: BS1868,ANSI B16.34,API 6D,JIS B2074 B2084
Inspection and Test:API 598, API 6D
Face to Face Dimension :ANSI B16.10 ,JIS B2002
End Flange Dimension:2"-24" to ANSI B 16.5, JIS B2212 B2214
>24": to MSS SP-44,to API 605 on request
Butt-welding End Dimensions to: ANSI B16.25
Packing: wooden case, plywood case
(2) 900LB - 3000LB Check valve
Connection: RF/RTJ Flange, Butt Welded
Pressure Rating: Class 900LB~ Class 3000LB
Material: A105,LF2,F11,F22,F5,F304,F316,F304L,F316L(1/2" -2 ")
WCB,LCB,WC6,WC9,C12,C5,CF8,CF8M,CF3,CF3M,CF8C(2" -36")
Structural Features: Pressure Seal Cover ,Swing Type Disc,
Threaded or Welded Seat Ring
Operating Type: Handwheel, Gear, Pneumatic, Electric
Design Standard:
Design & Manufacture Std.: ANSI B16.34, BS1868
Inspection and Test: API 598, API 6D
Face to Face Dimension:ANSI B16.10
End Flange Dimension:ANSI B 16.5
Butt-welding End Dimensions to: ANSI B16.25
Packing: wooden case, plywood case
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.
We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
