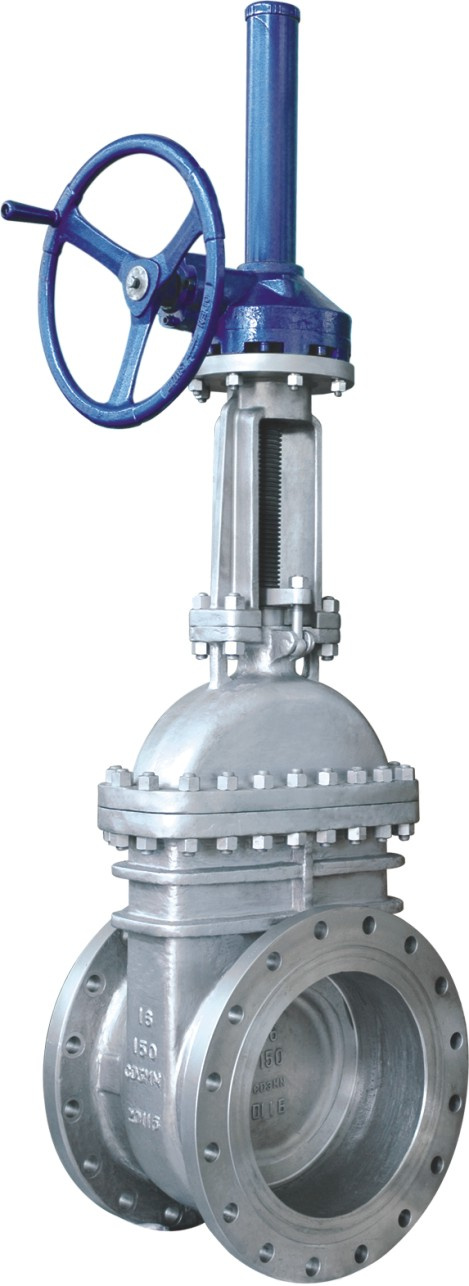

Cast steel Flanged end or BW Gate Valves
Standard compliance:
1) Design and manufacture: API600, ANSI B16.34
2) Test and inspection: API598
3) Face to face dimensions: ANSI B16.10
4) Flanged end: ANSI B16.5, B16.47 SERIES A & SERIES B
5) Butt-welding end: ANSI B16.25
6) Other standards (DIN, BS, JIS) is also available upon request.
Specifications:
1) Size: 2" to 48"
2) Class: 150LB to 2500LB for cast steel, 150LB for cast iron
3) Type: Bolted Bonnet, OS&Y, Rising Stem, Flexible Wedge, Threaded or Welded seat ring
4) Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, DUPLEX SS, MONEL, ALLOY 20, CAST IRON etc
5) Operation: Handwheel, gear, bare stem
Materials of body/bonnet and trim
Body/bonnet/disc | WCB, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF8M, CF3 and CF3M etc. |
Trim (Disc/body seat) | F6/F6, 304/304,304L/304L, HF/HF, F6/HF, Monel/Monel, 316/316,316L/316L, Monel/HF and 316/HF etc. |
Type of operation: hand wheel, gear, electric or pneumatic actuator etc.
Standard materials of parts
No. | Parts | Materials |
1 | Body | ASTM A216 WCB |
2 | Seat ring | A105 + 13CR |
3 | Wedge | ASTM A216 WCB + 13CR |
4 | Stem | ASTM A182 F6 |
5 | gasket | Stainless steel and graphite spiral wound |
6 | Bonnet | ASTM A216 WCB |
7 | Bonnet bolt | ASTM A193 B7 |
8 | Bonnet nut | ASTM A194 2H |
9 | Backseat bushing | ASTM A182 F6a |
10 | Stem packing | Graphite |
11 | Gland | ASTM A182 F6 |
12 | Gland flange | ASTM A216 WCB |
13 | Gland eyebolt | ASTM A193 B7 |
14 | Gland nut | ASTM A194 2H |
15 | Yoke | ASTM A216 WCB |
16 | Stem nut | ZCuAl10Fe3 / A439 D2 |
17 | Hand wheel | Ductile iron |
18 | H.W.Lock Nut | ANSI 1020 |
Dimensions (in mm & inch) and weight
Class 150
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 750 | 900 |
NPS | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 30 | 36 |
L(RF) | 178 | 191 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 407 | 432 | 457 | 508 | 610 | 711 |
L1(BW) | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 572 | 610 | 660 | 711 | 813 | 915 | 1016 |
L2(RTJ) | 191 | 203 | 216 | 241 | 267 | 279 | 305 | 343 | 368 | 394 | 419 | 445 | 470 | 521 | 622 | 724 |
H(OPEN) | 400 | 490 | 508 | 585 | 740 | 773 | 995 | 1160 | 1375 | 1569 | 1765 | 1978 | 2219 | 2611 | 3197 | 3737 |
W | 200 | 200 | 250 | 300 | 300 | 350 | 350 | 400 | 450 | 500 | 600 | 600 | 680 | 750 | 915 | 915 |
RF(Kgs) | 18 | 28 | 30 | 50 | 70 | 85 | 128 | 220 | 310 | 450 | 550 | 700 | 910 | 1130 | 2780 | 3700 |
BW(Kgs) | 15 | 22 | 26 | 40 | 68 | 77 | 118 | 200 | 290 | 435 | 510 | 650 | 880 | 1100 | 2650 | 3520 |
Class 300
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
NPS | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
L-L1(RF-BW) | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 |
L2(RTJ) | 232 | 257 | 298 | 321 | 397 | 419 | 435 | 473 | 518 | 778 | 854 | 930 | 1010 | 1165 |
H(OPEN) | 470 | 525 | 533 | 633 | 800 | 805 | 1024 | 1232 | 1460 | 1645 | 1841 | 1988 | 2208 | 2603 |
W | 200 | 200 | 250 | 250 | 350 | 350 | 400 | 450 | 500 | 600 | 600 | 680 | 750 | 915 |
RF (Kgs) | 24 | 44 | 48 | 73 | 124 | 144 | 226 | 350 | 580 | 715 | 1050 | 1235 | 1655 | 2320 |
BW (Kgs) | 20 | 35 | 37 | 54 | 100 | 110 | 174 | 285 | 495 | 615 | 940 | 1090 | 1500 | 2100 |
Class 600
DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 660 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
L-L1(RF-BW) | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 |
L2(RTJ) | 295 | 333 | 359 | 435 | 562 | 664 | 791 | 841 | 892 | 994 | 1095 | 1200 | 1407 |
H(OPEN) | 474 | 520 | 547 | 703 | 913 | 1077 | 1276 | 1490 | 1623 | 1816 | 2260 | 2260 | 2900 |
W | 250 | 250 | 250 | 300 | 450 | 500 | 600 | 680 | 750 | 850 | 960 | 960 | 1100 |
RF (Kgs) | 35 | 55 | 72 | 126 | 265 | 444 | 700 | 940 | 1310 | 1610 | 2070 | 2405 | 3810 |
BW (Kgs) | 32 | 47 | 64 | 103 | 218 | 374 | 570 | 830 | 1012 | 1217 | 1760 | 2000 | 3200 |
Class 900
DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
L-L1(RF-BW) | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 |
L2(RTJ) | 371 | 422 | 384 | 460 | 613 | 740 | 841 | 968 | 1038 | 1140 | 1232 | 1334 | 1568 |
H(OPEN) | 620 | 705 | 695 | 825 | 1065 | 1320 | 1540 | 1840 | 2135 | 2380 | 2580 | 2780 | 3130 |
W | 300 | 350 | 350 | 400 | 500 | 600 | 750 | 850 | 850 | 960 | 960 | 1100 | 1100 |
RF (Kgs) | 95 | 128 | 125 | 192 | 378 | 635 | 900 | 1550 | 2170 | 3070 | 3930 | 5120 | 7800 |
BW (Kgs) | 80 | 110 | 105 | 165 | 330 | 520 | 730 | 1300 | 1800 | 2650 | 3400 | 4300 | 6500 |
Class 1500
DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
L-L1(RF-BW) | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 | 1537 | 1664 | 1943 |
L2(RTJ) | 371 | 422 | 473 | 549 | 711 | 841 | 1000 | 1146 | 1276 | 1407 | 1559 | 1686 | 1971 |
H(OPEN) | 695 | 705 | 770 | 872 | 1092 | 1400 | 1600 | 1840 | 2025 | 2230 | 2430 | 2630 | 3130 |
W | 400 | 400 | 400 | 500 | 600 | 750 | 850 | 960 | 960 | 1100 | 1100 | 1200 | 1200 |
RF (Kgs) | 95 | 128 | 181 | 275 | 627 | 1000 | 2200 | 3300 | 4200 | 6300 | 7500 | 9000 | 11000 |
BW (Kgs) | 80 | 110 | 145 | 220 | 560 | 850 | 1950 | 2850 | 3550 | 5500 | 6500 | 8000 | 9500 |
