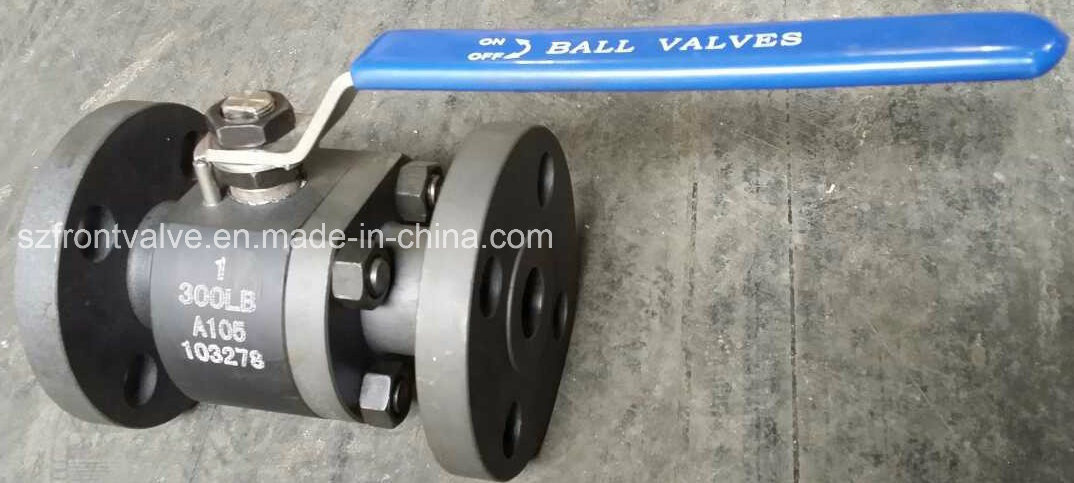

Forged Steel Flanged End Ball Valve

Forged steel flanged end ball vlaves

Standard compliance:
1) Design and manufacture: BS5351
2) Test and inspection: API598
3) Face to face dimensions: ANSI B16.10
4) Socket weld end: ANSI B16.11
5) Screwed end: ANSI B1.20.1
6) Flanged end: ANSI B16.5
7) Fire safe: API607, API6FA

Specifications:
1) Size: 1/4" to 6"
2) Class: 150LB to 2500LB
3) Type: Floating ball, full bore or reduced bore, soft seated or metal seated, side entry, two-piece/three-piece
4) Material: A105, LF2, F304, F316, F304L, F316L, F11, F22, F51, MONEL, ALLOY 20 etc
5) Operation: Lever.

Forged Steel Ball valves         Class 150 / 300 / 600 / 900 / 1500 / 2500

 Description:
Investment casting body
Materials: ASTM A351-CF8M, ASTM A351-CF8
Pressure temperature rating: 1000 PSI (PN63)/ 450 deg. F
Threaded end: BSPT, NPT, DIN259, DIN2999
Blow- out proof stem
Size: 1/4" ~ 4"
Options: Padlocking device,oval handle, butterfly
Options: handle

Trunnion mounted ball, Three-pieces body, Full port or reduced port, Blowout-proof stem, Fire-safe,
Anti-static.

Description:
Design and manufacture: API 6D, API 608 and
ANSI B16.34 or BS5351
Test and inspection: API6D, API 598.
Face to face dimensions: ANSI B16.10, API 6D
End flange dimensions: ANSI B16.5 ,B16.47 SERIES A & B
Butt-welding ends: ANSI B16.25
Fire safe: API607, API6FA
Size: 2" - 48"
Material: A105, LF2, F5, F9, F11, F22, F304, F304L, F316, F316L etc.
Type of operation: lever, gear

Standard materials of parts

Parts	Carbon Steel		Alloy Steel				Stainless Steel
Body	A105	A350 LF2	A182				A276
			F11	F22	F5	F9	304	316	304L	316L
Adapter	A105	A350 LF2	A182				A276
			F11	F22	F5	F9	304	316	304L	316L
Stem	4140+ENP	A182 F304	A182 F304				A182
							304	316	304L	316L
Ball	A105+ENP	A182 F304	A182 F304				A182
							304	316	304L	316L
Nut	A194 2H	A194 4	A194 7	A194 7	A194 4	A194 4	A194 8	A194 B8	A194 B8	A194 8
Bolt	A193 B7	A320 L7	A193 B7	A193 B16	A193 B16	A193 B16	A193 B8	A193 B8M	A193 B8M	A193 B8
Seat sealing face	PTFE, RPTFE, PEEK, NYLON, 13%Cr, STL
Packing	PTFE, GRAPHITE, O-RING (VITON)
Gasket	PTFE, STAINLESS STEEL AND GRAPHITE SPIRAL WOUND, STAINLESS STEEL AND GRAPHITE

Dimensions (in mm & inch) and weights
Class 150

SIZE	H1	H2	L			Weight (Kgs)
(inch)			RF	RTJ	BW	RF
2 x 1.1/2	110	160	178	190	216	26
2	120	175	178	190	216	30
3 x 2	120	175	203	216	283	33
3	150	210	203	216	283	60
4 x 3	150	210	229	241	305	64
4	165	255	229	241	305	103
6 x 4	165	255	394	406	457	110
6	190	280	394	406	457	188
8 x 6	190	280	457	470	521	185
8	225	320	457	470	521	250
10 x 8	225	320	533	546	559	290
10	265	370	533	546	559	435
12 x 10	265	370	610	622	635	505
12	280	380	610	622	635	610
14 x 12	280	380	686	698	762	685
14	310	435	686	698	762	825
16 x 14	310	435	762	775	838	880
16	350	470	762	775	838	1010
18 x 16	350	470	864	876	914	1100
18	405	510	864	876	914	1360
20 x 18	405	510	914	927	991	1500
20	460	530	914	927	991	1905
24 x 20	460	530	1067	1079	1143	2050
24	530	635	1067	1079	1143	3070
30 x 24	530	635	1295	-	1397	3300
30	660	760	1295	-	1397	5210
36 x 30	660	760	1524	-	1728	6310
32	710	790	1371	-	1524	6820
36	790	890	1524	-	1728	8810
40	890	990	1753	-	1956	12600
48	1020	1170	2134	-	2388	21950

Class 300

SIZE	H1	H2	L			Weight (Kgs)
(inch)			RF	RTJ	BW	RF
2 x 1.1/2	110	160	216	232	216	32
2	120	175	216	232	216	33
3 x 2	120	175	283	298	283	36
3	150	210	283	298	283	63
4 x 3	150	210	305	321	305	93
4	165	255	305	321	305	110
6 x 4	165	255	403	419	457	140
6	190	280	403	419	457	226
8 x 6	195	290	502	518	521	222
8	230	325	502	518	521	305
10 x 8	230	325	568	584	559	415
10	290	355	568	584	559	554
12 x 10	290	355	648	664	635	585
12	305	395	648	664	635	740
14 x 12	305	395	762	778	762	905
14	330	435	762	778	762	1000
16 x 14	330	435	838	854	838	1160
16	370	470	838	854	838	1370
18 x 16	370	470	914	930	914	1460
18	430	520	914	930	914	1620
20 x 18	430	520	991	1010	991	1810
20	443	570	991	1010	991	2140
24 x 20	443	570	1143	1165	1143	2420
24	545	635	1143	1165	1143	3380
30 x 24	545	635	1397	1422	1397	4260
30	685	790	1397	1422	1397	6600
36 x 30	685	790	1727	1756	1727	8190
32	740	810	1524	1553	1524	7940
36	810	915	1727	1756	1727	11200
40	940	1070	1956	-	1956	13800
48	1070	1240	2170	-	2170	24080

Class 600

SIZE	H1	H2	L			Weight (Kgs)
(inch)			RF	RTJ	BW	RF
2 x 1.1/2	115	160	292	295	292	37
2	125	180	292	295	292	40
3 x 2	125	180	356	359	356	43
3	160	220	356	359	356	75
4 x 3	160	220	432	435	432	100
4	170	260	432	435	432	139
6 x 4	170	260	559	562	559	190
6	190	285	559	562	559	275
8 x 6	190	280	660	664	660	294
8	254	340	660	664	660	445
10 x 8	254	340	787	791	787	547
10	305	370	787	791	787	720
12 x 10	305	370	838	841	838	810
12	330	405	838	841	838	910
14 x 12	330	405	889	892	889	1080
14	355	430	889	892	889	1220
16 x 14	355	430	991	994	991	1308
16	380	470	991	994	991	1528
18 x 16	380	470	1092	1095	1092	1680
18	430	510	1092	1095	1092	1950
20 x 18	430	510	1194	1200	1194	2370
20	480	545	1194	1200	1194	2640
24 x 20	480	545	1397	1406	1397	3250
24	560	660	1397	1406	1397	4580
30 x 24	560	660	1651	1664	1651	5480
30	710	810	1651	1664	1651	7500
36 x 30	710	810	2083	2098	2083	9300
32	760	840	1778	1794	1778	8400
36	840	940	2083	2098	2083	12500
40	990	1090	2337	2337	2337	17350
48	1120	1295	2540	2540	2540	28200


 Class 900

SIZE	H1	H2	L			Weight (Kgs)
(inch)			RF	RTJ	BW	RF
2 x 1.1/2	120	170	368	371	368	43
2	130	185	368	371	368	53
3 x 2	130	185	381	384	381	57
3	165	225	381	384	381	92
4 x 3	165	225	457	460	457	110
4	175	265	457	460	457	166
6 x 4	175	265	610	613	610	225
6	190	290	610	613	610	380
8 x 6	204	305	737	740	737	447
8	240	330	737	740	737	569
10 x 8	240	330	838	841	838	690
10	305	380	838	841	838	910
12 x 10	305	380	965	968	965	1050
12	343	420	965	968	965	1380
14 x 12	343	420	1029	1038	1029	1485
14	370	457	1029	1038	1029	1650
16 x 14	370	457	1130	1140	1130	1880
16	410	500	1130	1140	1130	2060
18 x 16	410	500	1219	1232	1219	2370
18	445	540	1219	1232	1219	2860
20 x 18	445	540	1321	1333	1321	3260
20	480	580	1321	1333	1321	4210
24 x 20	480	580	1549	1569	1549	5400
24	560	660	1549	1569	1549	6850



Class 1500

SIZE	H1	H2	L			Weight (Kgs)
(inch)			RF	RTJ	BW	RF
2	140	230	368	371	368	53
3 x 2	140	230	470	473	470	66
3	160	265	470	473	470	98
4 x 3	160	265	546	549	546	136
4	190	305	546	549	546	204
6 x 4	190	305	705	711	705	290
6	230	355	705	711	705	520
8 x 6	230	355	832	841	832	635
8	305	420	832	841	832	854
10 x 8	305	420	991	1000	991	1068
10	355	480	991	1000	991	1510
12 x 10	355	480	1130	1146	1130	1750
12	420	530	1130	1146	1130	2450


 Class 2500

SIZE	H1	H2	L			Weight (Kgs)
(inch)			RF	RTJ	BW	RF
2	150	240	451	454	451	127
3 x 2	150	240	578	584	578	215
3	175	255	578	584	578	255
4 x 3	175	255	673	683	673	319
4	204	305	673	683	673	385
6 x 4	204	305	914	927	914	565
6	254	457	914	927	914	918
8 x 6	254	457	1022	1038	1022	1170
8	356	530	1022	1038	1022	1850
10 x 8	356	530	1270	1292	1270	2280
10	445	610	1270	1292	1270	2711
12 x 10	445	610	1422	1445	1422	3530
12	483	685	1422	1445	1422	4350
