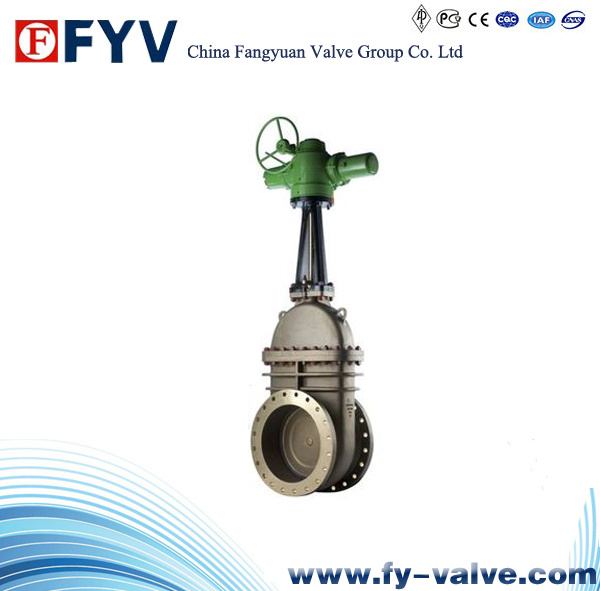

Slab gate valve
Construction and features:Fire safety, Anti-static device, Double block and bleed, Seat and tem sealant injection.
Normal diameter or bore:NPS 2"~NPS 36", DN50~DN900, 50A~600A.
Normal pressure or rating:Class 150~Class 2500, PN 10~PN 160, JIS 10K~30K.
Material:Casting steel:WCB, WCC, LCB, CF8, CF3, CF3M, CF8M;Forge steel:A105, A182 F316, F304, F316L, F304L, F11, A350 LF2.
Design & manufacture:API 6D, ASME B16.34, BFCI 70-2, ISO 5210, NACE MR0175.
Face to face dimension:ASME B16.10, ISO 5752, BS EN 558, BS 12982, JIS B2002.
Connection ends:ASME B16.5, ASME B16.47, API 605, MSS SP-44, JIS B2220, ISO 7005-1, BS EN 1092, BS 12627, ASME B16.25, ASME B16.11.
Testing & inspection:API 598, API 6D, API 607, API 6FA, BS 6755, BS 12569, MSS SP-61, ISO 5208.
Operation type:Manual, Gear, Pneumatic, Electric.
Products Design Features
1.Cast and weld two structures with the body
2.The seat ring uses the floating seat ring structure with o-seal ring sealed and pre-teghtening force applied to have inlet and outlet dual-way sealed;And the open-close moment with this structure is 1/2 that of the common valves only,able to lightly open and close valves.
3.The seat ring uses the sealing face inlaid with PTFE,so has dual seals of PTFE to metal and metal to metal,the PTFE sealing face also acts as removing the dirt on the wedge disc.
4.For the valve with the metal to metal seal,there is grease injector outside of it,grease gets into the sealing face through the injector and the seat ring to have the valve up to null leak.
5.The wedge disc of the valve with flow guide hole is always fitted with the sealing face whether in full open or full close status to have the sealing face protected without being directly eroded by the medium so as to extend the duration.
6.When fully opened,the valve's channel is smooth and linear,with an extremely small flow resisting coefficient and no pressure loss,and the pipeline can be cleaned with hair-ball through it.
7.This valve uses the packing structure with the ability of self-seal,needs no constant adjustment,features very light open and close and a reliable seal.An assisting sealing grease injection structure is set in the packing to have the sealing performance absolutely reliable and get a true null leak,settling the problem for the packing place of universal valves to be easiest leak outward.
8.Automatic removal of the high pressure in the internal cavity when the valve is about to close (see the working principle diagram for the details) so as to ensure safety.
Our Advantages:
1.We Are Factory:FYV has 3 production bases and 1 foundry which located in Wenzhou, Shanghai and Lishui city of China.The Factory Size in Square Meters:110, 000.FYV has over 600 staff members, more than 60 technical engineers, a digital process center and more than 350 sets of various middle and large equipments.The annual sales revenue reaches above $80 million US Dollars.
2.Regional Sales:We provide specialized sales service refers to different kind of region all over the world.Each sales team member is good at the local language and well experienced to the responsible market.For example:Russian, German, Spanish, Japanese, etc.
3.Low MOQ:Our factory owns the casting company by itself.We are always ready for providing the sample and producing some small orders, in order to meet the business well.
4.OEM Accepted:We can make the products with the client's demand standard or the custom requirement.
5.Complete Service:We are always ready to hear from you, be responding to your enquiry immediately.Our trade manager is always online for you.
6.Good Quality:We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc.We are winning the market reputation with the time goes by.
7.Quick Delivery:We have the large stock for some hot products.
| 1-Blowdown stops | A105+Zinc /A276-304 customize |
| 2-Grease injection joint | A105+Zinc customize |
| 3-Body Material | A216 WCB customize |
| 4-Disc | A276-304 /A105+ENP customize |
| 5-Material of Valve Seat | A276-304+PTFE /PTFE+A105 customize |
| 6-O-ring | nitrile butadiene rubber /fluorine rubber customize |
| 7-Stem | A276-420 / A276-304 customize |
| 8-Packing seat | A276-420 customize |
| 9-Y ring | nitrile butadiene rubber / fluorine rubber customize |
| 10-Sealing shroud | A276-420 customize |
| 11-Indicating stem | A276-304 customize |
| 12-Gasket | 304+graphite customize |
| 13-Bonnet | A216 WCB customize |
| 14-Stud | A193-B7 customize |
| 15-Nut | A194 2H customize |
| 16-Yoke | A216 WCB customize |
| 17-Stem nut | C95500 customize |
| 18-Gland | A105 customize |
| 19-Hand wheel | A536 60-40-18 customize |
| 20-Indicating cover | A276-304 customize |
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.
Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
