Bolted bonnet, Two-piece Body, Floating Ball
Full or Reduced bore, Blowout Proof Stem
Fire safe and Anti static
Stainless steel ball
ASTM A216 WCB, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: API 608, API 6D, BS5351
Face to face(end to end): ANSI B16.10, API 6D
Flanged connection: 2~~24~to ANSI B16.5
Fire-safe: API 607, API 6FA
Butt welded end: ANSI B16.25
Test and inspection: API 598, API 6D

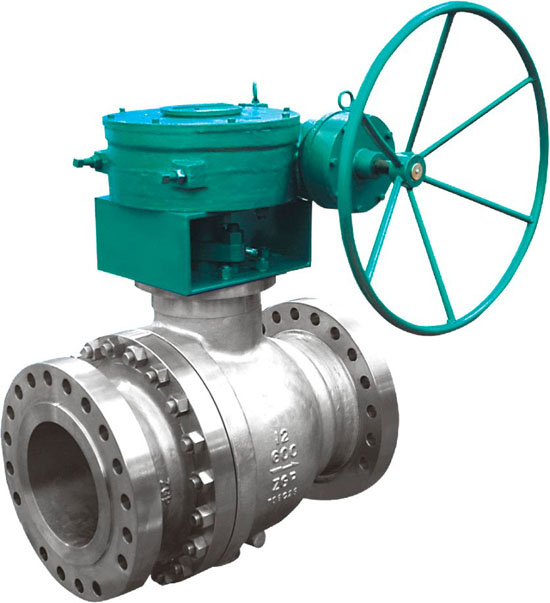

V&C trunnion mounted ball valve include:
2 pc side-entry cast steel type
3 pc side-entry forged steel type
Ball Valve Design Features:
1. Full port or reduce port
2. Fire safe design ball valve
3. Double block and bleed
4. Sealant injection system
5. Cavity pressure relief
6. Blowout-proof stem
7. Anti-static ball valve
8. ISO 5211 top flange
9. Optional double piston design
10. Optional various actuator
Ball Valve Product Range:
2 PC Side-entry Ball Valve
Size | 2~24" (DN50~DN600) |
| Rating | 150~1500LB (PN16~PN250) |
| Body Materials | Cast Carbon Steel, Stainless Steel, Duplex Steel |
| Trim | Carbon Steel, Stainless Steel, Duplex Steel |
| Operation | Electric, Pneumatic, Hydraulic Pneumatic & hydraulic double acting |
3 PC Side-entry Ball Valve
Size | 2~60" (DN50~DN1500) |
| Rating | 150~2500LB (PN16~PN420) |
| Body Materials | Carbon Steel, Stainless Steel, Duplex Steel |
| Trim | Carbon Steel, Stainless Steel, Duplex Steel |
| Operation | Manual, Electric, Pneumatic, Hydraulic, Pneumatic & hydraulic double acting
|
Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.
Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.
Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.
Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
