Specifications

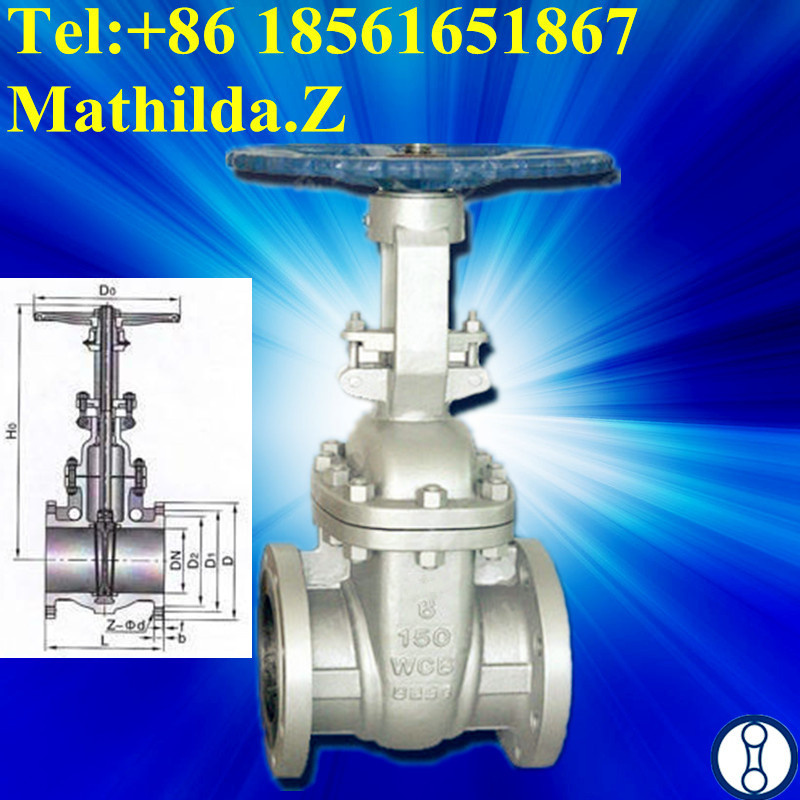

API Stem Gate Valve
1. Design: API600, ANSI B16.34
2. Pressure: 150LB~1500LB, 10K~40K, PN16~PN250
3. Size: 2"~40", DN50~DN1000
API Stem Gate Valve
Specification:
Size: 2"~40" OR DN50~DN1000
Pressure: 150LB~1500LB OR 10K~40K OR PN16~PN250
Material: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, Etc.
Operation: Hand Wheel. Gear, Electricty, Etc.
Standard:
Design & Manufacture Std.: API6D, API600, ANSI B16.34, BS5351, JIS B2073 B2083, DIN3352, GOST 12820-80
Face to Face Std.: API6D, ANSI B16.10, JIS B2002, DIN3202
End Connection Std.: ANSI B16.5, JISB2212-JISB2214, DIN2543-2550, GOST 12820-80
Pressure Temperature Lating: ANSI B16.34, JIS B2073 B2083
Test Pressure: API 598, JIS B2003
|
Name |
Material |
Body
Bonnet
Wedge |
A216 WCB |
A352 LCB |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
Stem |
A182 F6 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
|
Stem Nut |
ZcuAl10Fe3 Bronze |
|
Handwheel |
KTH350-10 |
|
Bonnet Bolt |
A193-B7 A320-L7 A193-B8 |
|
Nut |
A194-2H A194-7 A194-8
|
