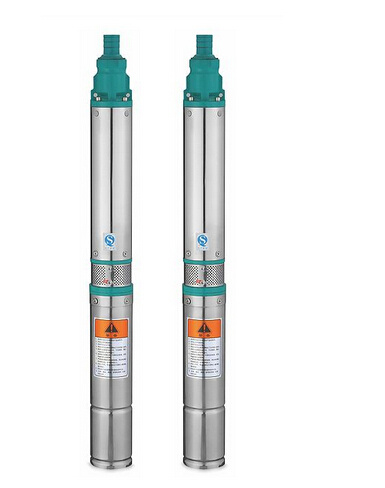

CE Approved Submersible Pump with Stainless Steel Well Deep
| Price: |
Negotiable |
| Min Order: |
1 |
Basic Info.
Model NO.:LL-1101
Application:Submersible Pump
Type:Jet Pump
Material:Stainless Steel
Power:Electric
Structure:Multistage Pump
Theory:Electromagnetic Pump
Export Markets:GlobalAdditional Info.
Trademark:hansuProduct Description
Deep well pump
Overview:
The bore well submersible pump is new highly efficient machine and low cost for water supply.
It is composed of the motor and pump together which is placed in the bore well by connecting the motor cable withe the power supplu which drives the impeller rotating.
Feature:
1. A new kind of superior pump manufactured by the lastest technology and advanced equipment imported from Italy and America. 2. The motor and pump are assembled into one and it can work directly dived into water.
3. No special requirements for the well casing and lifting pipe. Within the reasonable pressure range, steel tube, rubber tube and plastic hose can be used as lifting pipe. )
4. The pump is installed on the upper part of the pump units
5. There is a check valve on top of the pump which could prevent rapid inverse rotation
6. The pump unit should be immersed below the dynamic water level when in using.
Application:
The submersible pump is suitable for farm irrigation, sprinkling, fountain, Rainwater Recycling System, mining drainage, emergency rescue and disaster relief, urban water supply, enterprises and government institutions water lifting projects.
Water towers and factory,
School and village to pump ground water
Food & beverage and family (or higher) using water layer
Geoglogical and hydrographic engineering
Industry and mining industry Construction and civil building
Agricultural Irrigation
Drainage system
Technical data:
Capacity: 1.5-90/40-280 m3/h
2-260/3.5-245 m3/h
3-110/25-170 m3/h
Motor Power: 0.5-60 HP
0.31-45 KW
Diameter: 40-80 mm
Usage well Diameter: 100/150 mm| Model | Power | voltage | Cable |
| (KW) | (V) |
| | | | |
| 100QJ3-35/5-0.4 | 0.4 | 220 | 20M |
| 100QJ(D)3-45/7-0.55 | 0.55 | 380(220) |
| 100QJ(D)3-60/9-0.75 | 0.75 | 380(220) |
| 100QJ(D)3-75/11-0.95 | 0.95 | 380(220) |
| 100QJ(D)3-90/14-1.1 | 1.1 | 380(220) |
| 100QJ(D)3-115/17-1.5 | 1.5 | 380(220) |
| 100QJ(D)3-140/20-2.2 | 2.2 | 380(220) |
| 100QJ(D)5-40/6-0.75 | 0.75 | 380(220) |
| 100QJ(D)5-50/9-0.95 | 0.95 | 380(220) |
| 100QJ(D)5-58/11-1.1 | 1.1 | 380(220) |
| 100QJ(D)5-75/12-1.5 | 1.5 | 380(220) |
| 100QJ(D)5-100/16-2.2 | 2.2 | 380(220) |
| 100QJ(D)8-25/5-0.75 | 0.75 | 380(220) |
| 100QJ(D)8-35/6-0.95 | 0.95 | 380(220) |
| 100QJ(D)8-45/8-1.1 | 1.1 | 380(220) |
| 100QJ(D)8-55/10-1.5 | 1.5 | 380(220) |
| 100QJ(D)8-65/12-2.2 | 2.2 | 380(220) |
| 100QJ(D)10-25/4-0.95 | 0.95 | 380(220) |
| 100QJ(D)10-32/5-1.1 | 1.1 | 380(220) |
| 100QJ(D)10-36/6-1.5 | 1.5 | 380(220) |
| 100QJ(D)10-48/8-2.2 | 2.2 | 380(220) |
| 80QJD3-36/7-0.6 | 0.6 | 220 |
| 80QJD3-50/9-0.8 | 0.8 | 220 |
| 80QJD3-54/10-0.95 | 0.95 | 220 |
| 80QJD3-58/12-1.1 | 1.1 | 220 |
| 80QJD3-66/14-1.5 | 1.5 | 220 |
| 80QJD3-76/16-2.2 | 2.2 | 220 |
| 80QJD5-25/5-0.6 | 0.6 | 220 |
| 80QJD5-38/8-0.8 | 0.8 | 220 |
| 80QJD5-46/10-1.1 | 1.1 | 220 |
| 80QJD5-54/12-1.5 | 1.5 | 220 |
| 80QJD5-62/14-2.2 | 2.2 | 220 |
| QGD1.5_55_0.55 | 0.55 | 220 |
