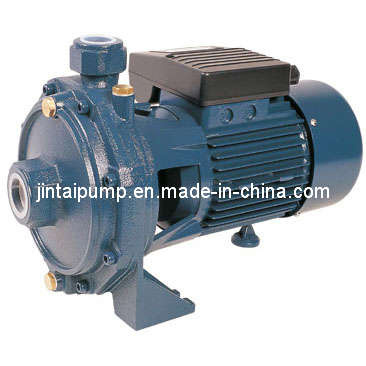

The SCM2 series are with two back-to-back impellers centrifugal pumps, are developed for higher head valve than single impeller pumps and have extremely high outputs. They are suitable for pumping clean water and chemically non-aggressive liquid, reliable, economical and simple to use. They can be used for pressure boosting washing systems, cooling and fire-fighting units, Industrial water supplying, horticultural and agricultural irrigation applications, civil and domestic water transfer schemes, boiler, chiller and refrigeration systems.
Pumps should be installed in a covered area, protected against the weather.
Max ambient temperature up to 40C
Max fluid temperature up to 80C
Max pressure up to 10 bar
Pump Body: Cast iron
Motor Housing: Aluminum/cast iron
Shaft: 45#steel /stainless steel
Impeller: Brass
Motor: Closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44 /IP54
Duty: Continuously rated
Mechanical Seal: Ceramic steatite/ metalized carbon
|
MODEL |
POWER |
MAX.FLOW |
MAX.HEAD |
MAX.SUCT |
INLET/OUTLET |
N.W |
|
SCM2-40 |
750W |
100 l/min |
35m |
9m |
1" * 1" |
18.8kg |
|
SCM2-52 |
1100W |
130 l/min |
48m |
9m |
1.25" * 1" |
23.5kg |
|
SCM2-60 |
1500W |
140 l/min |
52m |
9m |
1.25" * 1" |
24.5kg |
|
SCM2-68 |
2200W |
200 l/min |
60m |
9m |
1.5" * 1.25" |
31.0kg |
|
SCM2-70 |
3000W |
240 l/min |
70m |
9m |
1.5" * 1.25" |
39.0kg |
|
SCM2-80 |
4000W |
260 l/min |
84m |
9m |
1.5" * 1.25" |
42.5kg |
|
SCM2-90 |
5500W |
280 l/min |
90m |
9m |
2" * 1.25" |
62.5kg |
|
SCM2-100 |
7500W |
300 l/min |
105m |
9m |
2" * 1.25" |
64.0kg |
