Home Valve Products Closed Spring Loaded Full Bore Type Safety Valve (A47H-16C) / Pop-off Valve/ Pressure Relief Valve
Closed Spring Loaded Full Bore Type Safety Valve (A47H-16C) / Pop-off Valve/ Pressure Relief Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
This safety valve are used for the equipment and pipeline of the steam, air etc medium what the working temperature are less than 350Celsius degree. Take for extra pressure protection devices. Flange connecting dimensions of comply with Standard series one of JB/T-94.
Structure and function of spring type safety relief valve
Working principle of spring type safety valve
Low temperature spring type safety valve
Safety reflux valve (return valve; Reverse flow valve)
Vacuum negative pressure valve
Model selectionof safety relief valves
Our other related products: Level gauges, flow meters, pressure transmitters, indicators, industrial system.
Spring safety valves' working principle:
Spring type safety relief valve works through adjusting spring force to prevent medium pressure and realize sealing purpose. Under the condition of spring force greater than medium's normal pressure, valve disc is at the close state, when medium pressure exceeds the set pressure, the spring is compressed, and lead the disc sealing faces separated, the valve open automatically, and relief pressure; When medium pressure reduced to normal pressure, the valve disc go back to valve seat under the spring force, disc sealing faces and valve seat sealed again, the valves close automatically.
Safety reflux valve (return valve; Reverse flow valve)
Usage
Reflux valves install at the liquid reflux pipe of LPG tank pump outlet. When the front pump pressure greater than rated value, safety reflux valve reduce pressure& back flow.
|

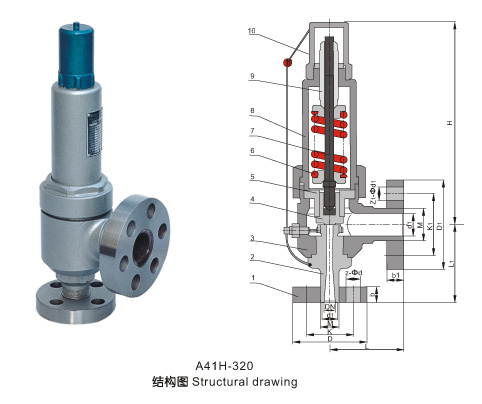

NO. |
Name of part |
Materials |
|
1 |
Body |
WCB |
|
2 |
Nozzle |
ZG2Cr13 |
|
3 |
Adjusting ring |
ZG2Cr13 |
|
4 |
Disc |
2Cr13 |
|
5 |
Guide sleeve |
2Cr13 |
|
6 |
Bonnet |
ZG230-450 |
|
7 |
Spring |
50CrVA |
|
8 |
Stem |
2Cr13 |
|
9 |
Lever |
ZG200-400 |
|
10 |
Adjusting bolt |
45 |
|
11 |
Cap |
ZG200-400 |
|
Sealing surface of material |
"H" D507 , "Y" Co
"H" type Depositing D507, "Y" type Depositing stellite
|
| Prod Model: |
A47H-16C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Spring Type |
