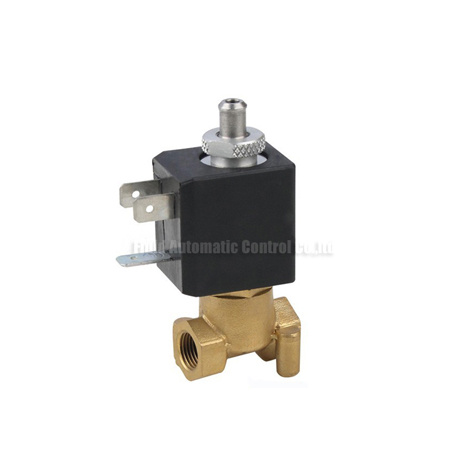

*CMV series Italy type solenoid valve for coffee maker machine and electric iron
*DN0.9mm,1mm,1.2mm,1.5mm,1.8mm,2mm,2.5mm,3mm,4mm
*Two position three way or two position two way direct acting type
*Body material brass or Reinforce plastic
*Port Size G1/8” or hosebib connection
1. Installation to prevent small particles into the interface
2. Installation location does not recommend coil downward position
Parameter table:HOSEBIB PIPES |
| Model | In | Out | Hosebib connection
| Out |
| CMV Series | G1/8” | G1/8” | Refer to outline size |
| Parameter table:GENERAL FEATURES |
| ITEM | Parameter | ITEM | Parameter |
| Body | Brass | Maxiumum Fluid temperature | –10~+140ºC |
| Internal parts | Stainless steel | Ambient temperature | +80ºC/120ºC |
| Action method | Direct acting | Protection degree | IP00 |
| Form | Normally closed/Normal Open | Insulation class | H |
| Fluids | Water , steam , gas | Working Pressure | 0~1.6MPa |
| Parameter table:ELECTRICAL INFORMATION |
| Electric current category | May choose voltage | Electric current frequency | Holding power | In rush power |
| AC | 36V48V110V230V | 50Hz 60Hz | 11VA | 15VA |
| DC | 12V24V |
| 9W |
|
