Forged Steel Ball Valve
Size: 2"~48"
Pressure: 150#~2500#
Bore: FULL BORE
End: RF, RTJ
Body material: FORGED ASTM A105, A350 LF2, F6A, F304, F316, F51, F53, F55, INCONEL, MONEL AND OTHERS
Main Feature:

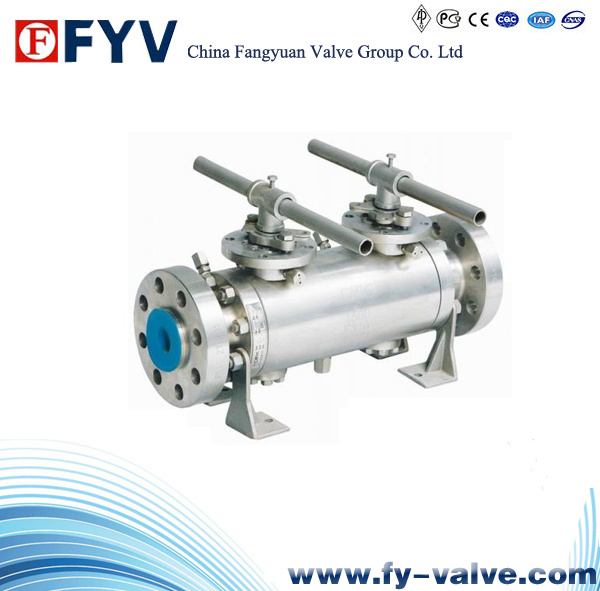

FORGED TRUNNION BALL VALVE(DBB)
1. Forged ball valve feature
The forging material can ensure sufficient rigidity and strength under
Maximum rated operation pressure without inherent flaw of cast. Enough wall
Thikness of separate body and adaptation of high strength tie bolts are
Convenient for valve maintenance and sufficient to bear the stress of pipe.
The internal parts of valve are carefully designed and selected to ensure
Reliability under all kinds of work condition.
2. Anti-fire safe design
When the trunnion ball valve be used normally, its sealed by seat and ball surface, seat retainer sealed by Oring and body, this is soft sealed and reliable sealing. When the seat and Oring are burnt, the seat retainer and body will be sealed by expanded graphite. Thus act anti-fire safe purpose.
3. Anti-static device
In order to prevent friction among ball, stem and PTFE that generates static electricity which may light the combustibles and explosives that cause an accident, in this ball valve, static conduction spring is set between the stem and the ball, the stem and the body. Thus static electricity is conducted to ground and system safety is secured.
4. Free leakage of body Sealed construction
The connective position of valve body and bonnet is double sealed by gasket and Oring, on this base, such factors as fire, high temperature, shock and uneven opening or closing of the torque all can't induce external leakage.
5. Low torque in operation
The self-lubricated bearings are installed at the friction of stem, resulting in wear resistance, fiexibility of operation and low torque.
Applications:
Large and medium oil, gas, water conservancy, pharmaceuticals, Chemical, heating equipment industry
We can also produce according to customer's size.
Our Advantages:
1. We Are Factory: FYV has 3 production bases and 1 foundry which located in Wenzhou, Shanghai and Lishui city of China. The Factory Size in Square Meters: 110, 000. FYV has over 600 staff members, more than 60 technical engineers, a digital process center and more than 350 sets of various middle and large equipments. The annual sales revenue reaches above $80 million US Dollars.
2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.
3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.
4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.
5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.
6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.
7. Quick Delivery: We have the large stock for some hot products.
8. Competitive Prices: We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer.
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.
Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
