| Price: | US $ 20/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | T/T,D/P |
| Model |
YS4101-06B/08B YS4101A-06B/08B |
YS4200-06B/08B YS4200A-06B/08B |
YS4303C-06B/08B YS4303AC-06B/08B |
YS4303E-06B/08B YS4303AE-06B/08B |
YS4303P-06B/08B YS4303AP-06B/08B |
| Position and Way NO. | Two-position Five-way | Three-position Five-way | |||
| Effective Sectional Area | 14mm 2 (CV=0.78) | 12mm 2 (CV=0.67) | |||
| Port Size | Air Inlet=Air Outlet=Exhaust=G1/8'' | ||||
| Working Medium | 40 Micron Filtered Air | ||||
| Motion Patterm | Inner Guide Type | ||||
| Working-pressure | 0.15-0.9Mpa | ||||
| Max.Pressure Resistance | 1.2Mpa | ||||
| Operation Temperature | 5-50 0 C | ||||
| Voltage Range | ±10% | ||||
| Power Consumption | AC:4.5VA DC:3W | ||||
| Insulation&Protection Class | F Class:IP65 | ||||
| Wiring Form | G or L | ||||
| Highest Action Frequency | 5 Cycle/Sec | ||||
| Shortest Excitation Time | 0.05 Second | ||||

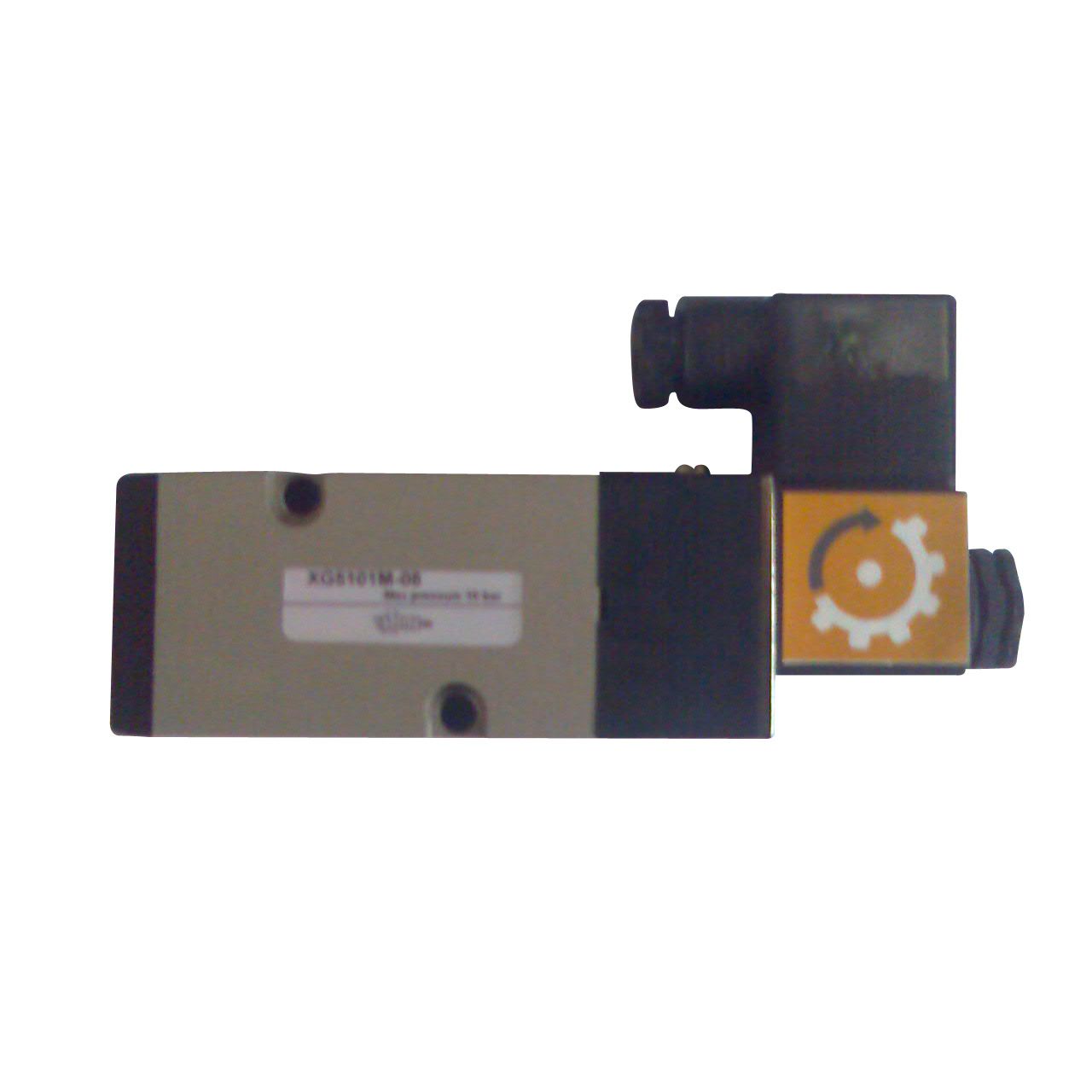

| Prod Model: | YS410 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Distribution of Direct Acting |
| Connection Form: | Thread |
| Valve Structure: | Direct-Acting Piston Structure |
| Power Supply: | DC Solenoid Valve |
| Application: | Industrial Usage |
