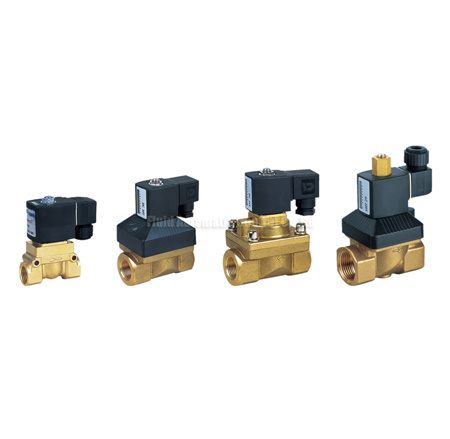

*B523 Series Solenoid valve aperture flow 2mm,3mm,13mm,25mm equivalent
*Two position two way diaphragm pilot
*Body material brass
*High pressure up to 5Mpa
*High temperature up to 180ºC
*Port Size G1/4”,G3/8”,G1/2”,G3/4”,G1”
*Seal NBR,EPDM or VITON for option
ORDERING CODE |
| B523 | 08 | V | AC220V |
| Type | Port size | Seal Material | Voltage |
| B523:B523 type Diaphgragm solenoid valve High pressure high temperature type | 08:G1/4" | V:VITON | DC12V |
| DC24V |
| 10:G3/8" | E:EPDM | AC24V |
| 15:G1/2" | AC110V |
| 20:G3/4" | Blank:NBR | AC220V |
| 25:G1" | AC380V |
| SPECIFICATION |
| Model | B523-15 | B523-20 | B523-25 |
| Working Medium | Air, Water, Oil, Gas |
| Motion Pattern | Guide Type |
| Type | Normal Close Type |
| Working-pressure(kgf/cm ) | Gas:1~50,Liguid:1~50 | Gas:1~40,Liguid:01~25 | Gas:1~40, ?Liguid:1~25 |
| Max. Pressure Resistance(kgf/cm2) | 75 | 60 |
| Control Pressure Rang | 0.3~0.6MPa |
| (mm)Aperture of Flow Rate | 12 | 20 | 25 |
| KV Value | 2 | 5 | 10 |
| Joint Pipe Bore | G1/2" | G3/4" | G1" |
| Operating Temperature Range | -5~+150 |
| Voltage Range | ±10% |
| Protect Class Power | IP65 |
| Consumption | AC:5.5VA DC:9W |
| Insulation | F Class |
| Material of Body | Brass |
| Material of Oil Seal | PTFE |
